Speaker Hanging Rigging Flying Stainless Steel Shoulder Eye Bolt M10 x 35mm 3 pcs. Eyebolt

Parts ExpressPart # 243-264

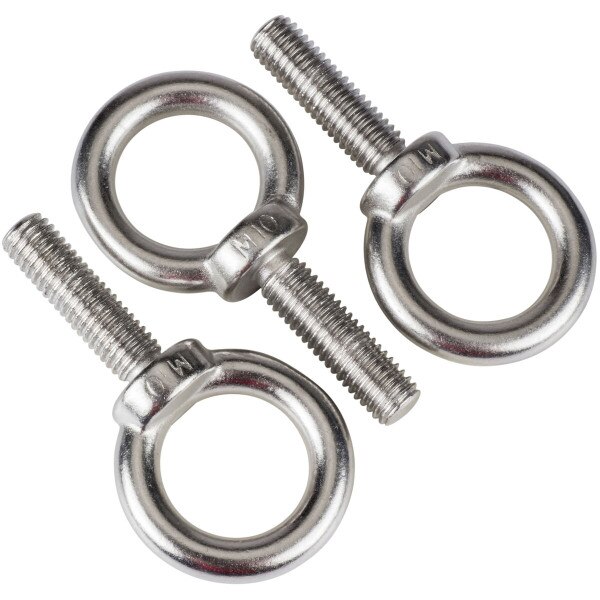

Stainless steel eyebolts for flying PA and commercial speaker cabinets; M10 threaded, 1.5 mm thread pitch, 35 mm length. Sold in packages of three pieces.

Key Features

  • Ideal for hanging speakers in houses of worship, restaurants, bars, clubs, etc.
  • Stainless steel won't tarnish or rust
  • Die-cut threads for less chance of binding
  • Popular sizes and lengths for PA speakers
  • Built-in shoulder requires no washer for installation
Your Price: $15.98
MSRP: $20.99
Save $5.01 (24%)
Bulk Pricing
Quantity:Qty: 1-9 $15.98/ea
Quantity:Qty: 10+ $14.55/ea
In Stock
Get Notified When Available

We'll send you an email when Speaker Hanging Rigging Flying Stainless Steel Shoulder Eye Bolt M10 x 35mm 3 pcs. Eyebolt is back in stock or available for preorder.

Order in the next 1 hr 37 min to ship today. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Speaker Hanging Rigging Flying Stainless Steel Shoulder Eye Bolt M10 x 35mm 3 pcs. Eyebolt

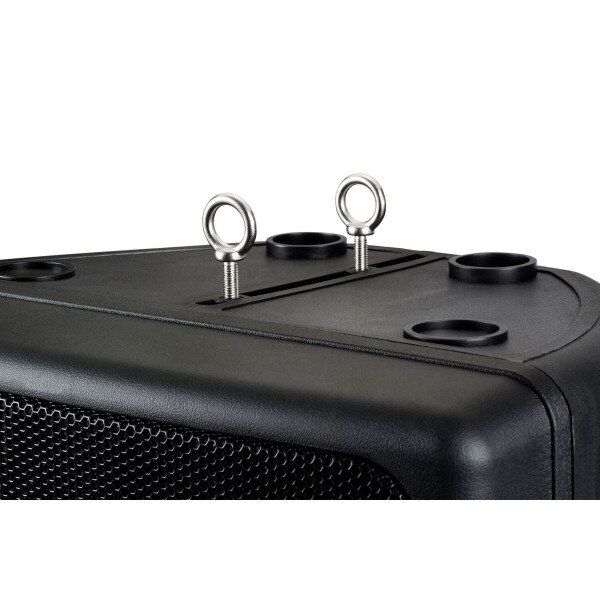

Made from stainless steel to prevent corrosion, our heavy duty eye bolts will last a lifetime. These eye bolts are intended for hanging speakers with pre-threaded machine-type fly points. Die cut threads go in smoothly with minimal binding, and built-in shoulders means no washers are required for quick and efficient installation. We stock the most common sizes for use with most popular PA speaker brands on the market.

Specifications: • Load capacity: 550 lbs. • TPI: 18 • Thread pitch: 1.5 mm • Thread length: 33 mm • Hole diameter: 24 mm • Total length: 76 mm.

NOTE: Parts Express eye bolts (lifting eyes) are designed to suspend audio cabinets above the ground, and should only be used by properly trained and competent individuals. If suspended improperly, your equipment could fall, resulting in property damage and/or very serious injury.

Do not exceed the rated capacity of this product. Do not apply load to this product beyond a 45° angle, or outside the plane of the eye. Do not suspend any additional material of any kind from the enclosure being flown. If you do not understand any of these terms or how they apply to the use of this product, do not attempt to install the product. Seek assistance from a qualified professional.

Parts Express stands behind the quality of its products. However, Parts Express cannot guarantee or assume liability for the finished installation of this product, as Parts Express exercises no control over individual installation procedures. While general and technical information and advice on the use of the products are provided in good faith, the user bears sole responsibility for selecting the appropriate product for their requirements. The user is also responsible for consulting or employing a certified rigging professional and/or structural engineer prior to suspending any equipment with this product. In no event shall Parts Express be liable for any direct, indirect, punitive, incidental, special consequential damages, to property or life, whatsoever arising out of or connected with the use or misuse of this product.

Product Details

BrandParts Express
Part Number243-264
UPC848864014708
Unit of MeasurePackages
Weight0.5
