Overview

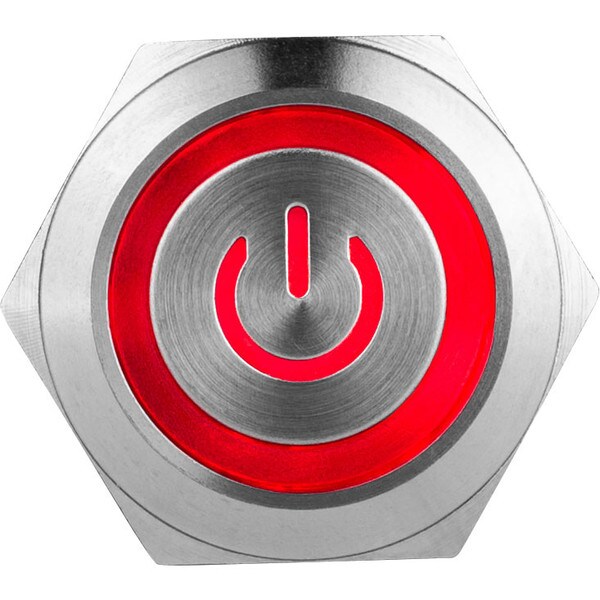

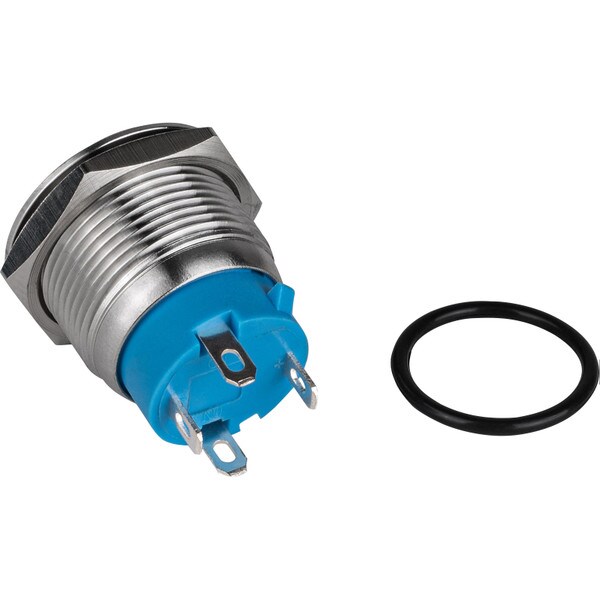

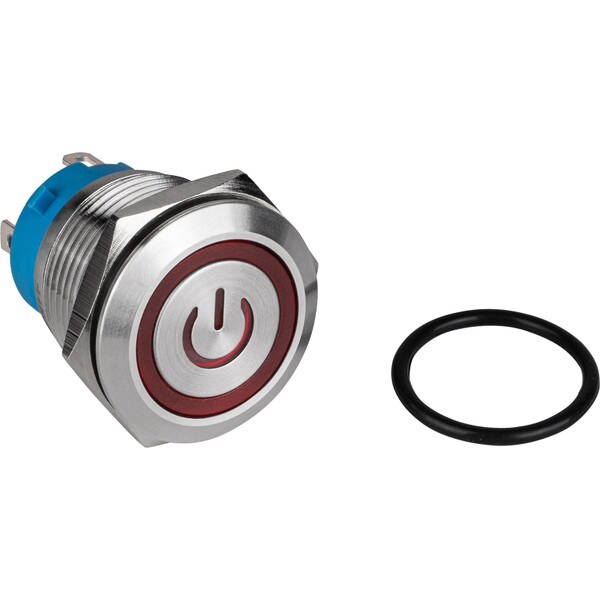

This anti-vandal latching pushbutton switch is popular for use in kiosk applications, ticket dispensers and industrial-type applications. The stainless steel body and button stay looking great even with heavy duty use. The switch has an IP67 waterproof rating for extreme conditions indoors or outdoors when used with included rubber washer. This switch has a built-in 120V red light with power symbol for locating in low lit areas. Hook up the + and - terminals to hot and neutral for continuous light. The switch operates with the other two terminals by interrupting the hot wire.
Specifications: Current rating: 5A 125 VAC • Switch total size without terminals: 0.89" L x 0.86" Dia. • Metal thread dimensions: 0.74" Dia. x 0.4" L • Button size: 0.63" Dia.
