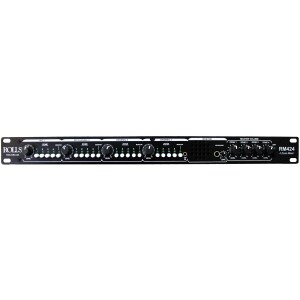

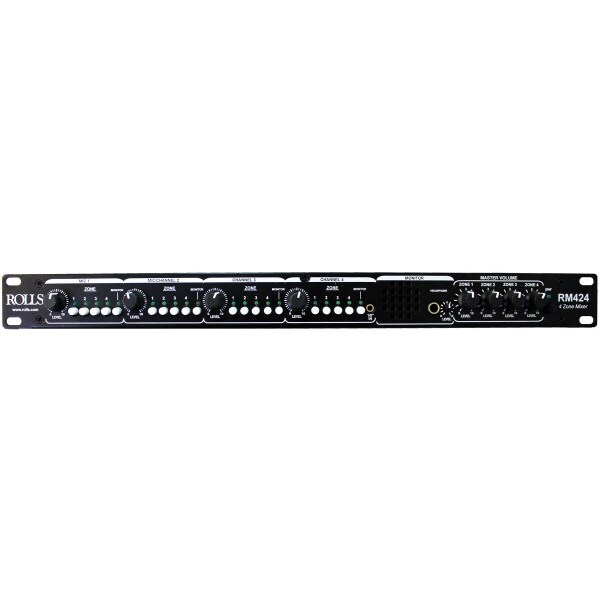

Rolls RM424 Four Channel Four Zone Line Mixer with Ducking

RollsPart # 245-1191
Model: RM424
The Rolls RM64 four zone mixer combines two paging microphones (or line inputs) with two additional line level source inputs. Each input is selectable to output to any combination of four zone outputs.

Key Features

  • Two microphone inputs with level control
  • Two RCA source inputs
  • Four balanced XLR zone outputs
  • Automatic ducking for paging
  • Remote volume capability for each output
Your Price: $339.00
+ FREE SHIPPING
MSRP: $419.00
Save $80.00 (19%)
Bulk Pricing
In Stock
Get Notified When Available

We'll send you an email when Rolls RM424 Four Channel Four Zone Line Mixer with Ducking is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Rolls RM424 Four Channel Four Zone Line Mixer with Ducking

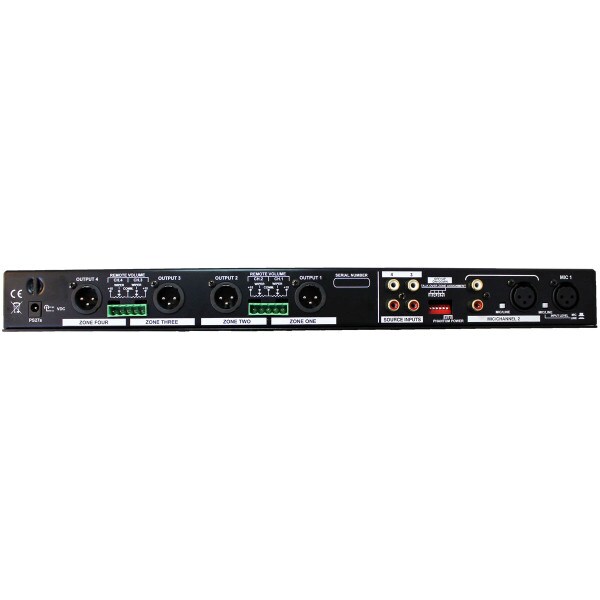

The outputs on the RM424 are all balanced XLR connectors, and phoenix-style remote volume connectors provides each zone with a means for external volume control via a simple 10-100k ohm potentiometer (sold separately). The microphone inputs feature selectable phantom power, and automatic ducking assignable to each zone for easy paging.

The RM424 is the ideal solution for banquet rooms, offices, restaurants, night clubs, etc. AC power adapter included. Made in the USA.

For more than two decades, those in the know have turned to Rolls for the highest quality, reliability, and value. Rolls is an innovative company specializing in domestically manufactured signal interface accessories, mixers, amplifiers, and processors for the audio professional.

Specifications: • Frequency response: 20 - 20,000 Hz ± 0 dB • Input impedance: 10k ohms balanced; 50k ohms unbalanced • Signal-to-noise ratio: >75 dB • THD: <0.3% • Dimensions: 19" x 1.75" x 6.5" • Weight: 7 lbs. (3kg).

Constant Voltage (70-Volt) Audio Systems

Audio distribution systems, especially those commonly used in department stores, warehouses, restaurants, etc., require that many loudspeakers be driven from a single audio amplifier over long runs of speaker wire.  The "constant voltage" or "high impedance distribution" audio systems can be complex to understand at first, however, provides many advantages. Learn how to design your own 70-volt or 25-volt loudspeaker system.

Learn More

Product Details

BrandRolls
ModelRM424
Part Number245-1191
UPC675889042405
Unit of MeasureEach
Weight6.1

Product Specifications

Mixer TypeAnalog
XLR Mic Inputs< 6
