CLEARANCE RE Audio XXX12-v2-4 12" Cast Frame DVC Subwoofer Driver 4+4 Ohm

RE AudioPart # 268-8151
Model: XXX12-v2-4
RE Audio's XXX12-v2 12" dual 4 ohm voice coil subwoofer offers professional power handling capabilities, maximum efficiency, and a vented motor assembly to create unbeatable sound!

Key Features

  • RE Audio's top-of-the-line subwoofer series
  • Vented Magnet System for extreme 2,000 watt RMS power handling
  • Class-leading 54 mm Xmax for over 4" of total travel!

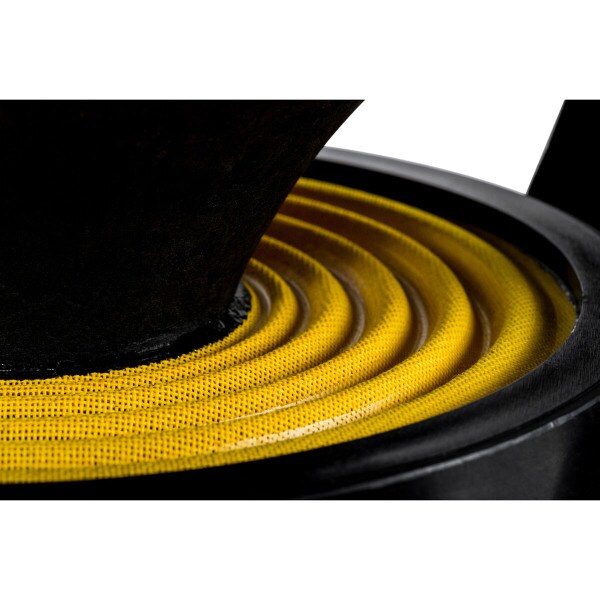

  • Rubber surround and dual progressive spiders
Similar items that may interest you:
Dayton Audio UMII12-22 Ultimax II 12" DVC Subwoofer 2 Ohm Per Coil
Price: $224.98Part # 295-712
Adire Audio ADBX12D4 BrahmaX 12" XBL DVC Subwoofer
Price: $699.99Part # 294-122
See all items in Car Subwoofer Speakers
Get Notified When Available

We'll send you an email when RE Audio XXX12-v2-4 12" Cast Frame DVC Subwoofer Driver 4+4 Ohm is back in stock or available for preorder.

60 Day No Hassle Return Policy

Overview

RE Audio XXX12-v2-4 12" Cast Frame DVC Subwoofer Driver 4+4 Ohm

The XXX v2 line of subwoofers incorporates first-class components to offer an exceptional product: a dual composite 2-piece cone with rubber surround, dual progressive spiders, 3" 8-layer flat aluminum wire voice coils, tork-tite terminals, and a vented magnet system.

For supreme performance, RE Audio's XXX-v2 12" 4 ohm subwoofer is built in the U.S.A. (with foreign and domestic parts) using an FEA optimized motor structure that allows it to work well in both sealed and ported cabinets. 2000 watts of power handling makes this subwoofer ideal for any large-sized competition car audio or home audio systems. 54 mm of linear, one-way Xmax enables it to move extreme amounts of air for hitting the lowest notes with maximum output.

Use RE Audio's Box Calculator to help you design your own L-ported speaker cabinet.

Product Details

BrandRE Audio
ModelXXX12-v2-4
Part Number268-8151
UPC611892992306
Unit of MeasureEach
Weight87

Product Specifications

Nominal Diameter12"
Power Handling (RMS)2000 Watts
Power Handling (MAX)4000 Watts
Impedance8Ω
Sensitivity83.76dB 2.83V/1m

Thiele-Small Parameters

Resonant Frequency (Fs)21Hz
DC Resistance (Re)4.2Ω
Mechanical Q (Qms)3.29
Electromagnetic Q (Qes)0.46
Total Q (Qts)0.404
Compliance Equivalent Volume (Vas)2.61ft³
BL Product (BL)18.16T·m
Maximum Linear Excursion (Xmax)54mm
Surface Area of Cone (Sd)480cm²

Materials of Construction

Cone MaterialPaper / Kevlar
Surround MaterialRubber
Voice Coil Wire MaterialAluminum
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter13"
Baffle Cutout Diameter11.5"
Depth12.75"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.97ft³
Vented Volume1.95ft³
