  • QSC SPA Series SPA4-100 4 Channel EnergyStar 70V/100V/8 Ohm/4 Ohm Amplifier

CLEARANCE QSC SPA Series SPA4-100 4 Channel EnergyStar 70V/100V/8 Ohm/4 Ohm Amplifier

1 Question, 1 Answer or
QSC Audio
Part #245-651

CLEARANCE QSC SPA Series SPA4-100 4 Channel EnergyStar 70V/100V/8 Ohm/4 Ohm Amplifier

QSC Audio
Part #245-651
Model: SPA4-100
1 Question, 1 Answer or

The QSC SPA Series comprises compact, EnergyStar qualified power amplifiers designed for versatile audio applications. The SPA4-100 four-channel model delivers up to 100 watts per channel into 4Ω and 8Ω loads, with bridgeable output providing up to 200 watts into low impedance and up to 175 watts into 70V or 100V systems. The efficient Class-D design and convection cooling ensure quiet operation and reduced energy consumption.

Key Features
  • 70V/100V/4/8 ohm for maximum flexibility and value
  • Bridgeable output to deliver higher power when necessary
  • EnergyStar certified to conserve energy and operational costs
  • Convection cooled, Class-D technology amplifier
  • Rack mountable 1U, half rack width to reduce space requirements
CLEARANCE $1,295.00
+ FREE SHIPPING
Bulk Pricing
Order in the next 2 hr 59 min to ship today. Details

2In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

QSC SPA Series SPA4-100 4 Channel EnergyStar 70V/100V/8 Ohm/4 Ohm Amplifier

QSC SPA Series SPA4-100 4 Channel EnergyStar 70V/100V/8 Ohm/4 Ohm Amplifier

The QSC SPA Series amplifiers are engineered to deliver reliable audio amplification in a compact form factor. The SPA4-100's four-channel design provide up to 100 watts per channel into both 4Ω and 8Ω loads, ensuring consistent performance across different speaker configurations. For applications requiring higher power, this series offers bridgeable outputs, delivering up to 200 watts into low impedance and up to 175 watts into 70V or 100V systems, making it versatile for both low-Z and high-Z applications. ​

One of the standout features of the SPA Series is its EnergyStar qualification, attributed to its efficient Class-D amplifier design. This efficiency not only conserves energy but also reduces operational costs, aligning with modern sustainability goals. The amplifiers incorporate Auto-Ramp circuitry, which ensures quiet and rapid power-up from standby when a signal is detected and seamless power-down after 25 minutes of inactivity. This feature significantly reduces power consumption without compromising performance, making it ideal for environments where energy efficiency is paramount.

Installation flexibility is another key advantage of the SPA Series. Their rack-mountable 1U, half-rack width enclosures allow for efficient use of space in equipment racks. Additionally, the amplifiers come with unique mounting hardware, enabling easy under-table and wall-mounting options. This adaptability ensures that the SPA Series can be seamlessly integrated into a variety of settings, from corporate meeting rooms to educational facilities, providing high-quality audio amplification without imposing on aesthetic or spatial considerations. ​

The QSC SPA Series amplifiers combine advanced design with robust construction to deliver high-quality sound in any environment. Their versatility, durability, and superior audio performance make them an excellent choice for enhancing your audio experience.

Specifications

  • Channels: 4
  • Stereo Mode (all channels driven)
    -8Ω: 100W
    -4Ω: 100W
  • Bridged Outputs (all channels driven)
    -8Ω & 4Ω: 200W
    -70V: 175W
    -100V: 175W
  • Frequency response (4 Ω and 8 Ω): 20 Hz - 20 kHz +/- 0.1 dB
  • Signal to noise (20 Hz - 20 kHz): >100 dB
  • Input sensitivity: 1.23 V (+4 dBu)
  • Gain at 8Ω: 25.0 dB
  • Output circuitry: Class D
  • Input impedance: >10k, balanced or unbalanced
  • Maximum input level: 12.3 V (+24 dBu)
  • Cooling: Convection
  • Input connectors: 3.5 mm Euro, 5 position (green)
    3.5 mm Euro, 10 position (green)
  • Remote connectors: 3.5 mm Euro, 5 position (black)
    3.5 mm Euro, 10 position (black)
  • Output connectors: 5 mm Euro, 4 position (green)

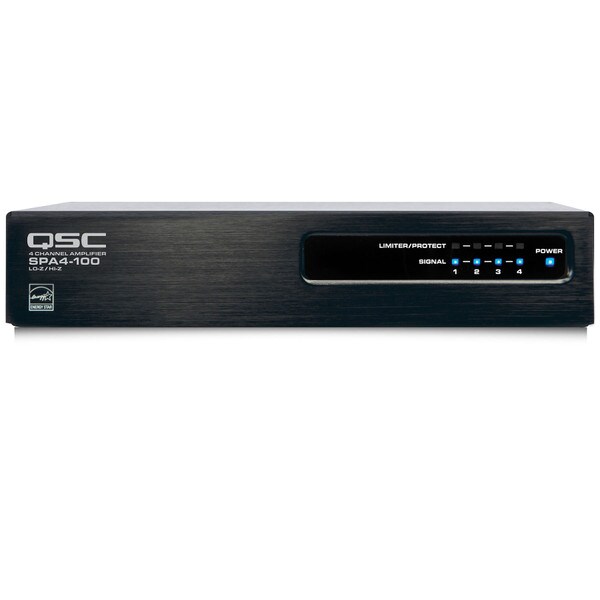

  • Front panel indicators: Power, per channel Signal, per channel Protect/Limit

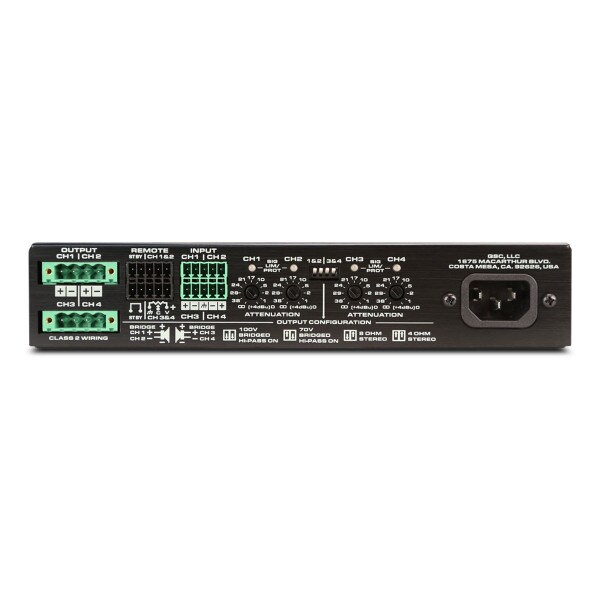

  • Rear panel indicators: Bi-Color LED Signal/Protect/Limit per channel
  • Controls: 4 Ω/8 Ω/70 V Bridged Highpass On/100 V Bridged Highpass (per channel pair)
  • General purpose inputs: Remote volume, remote standby, on 3.5 mm connectors (10k potentiometer is not included)
  • Highpass filter: 80 Hz in Bridged 70 V & 100 V
  • Dimensions: 1.7” x 8.7” x 9.5” (43 mm x 220 mm x241 mm)
  • Net weight: 4.0 lbs (1.4 kg
  • Shipping weight: 6.5 lbs (2.5 kg)
  • Power requirements: Universal Power Supply 100 - 240 VAC, 50 - 60 Hz with active power factor correction
  • Agency approvals: UL, CE, Energy Star, RoHS/WEEE compliant, FCC Class B (Conducted and Radiated emissions), UL 2043 with plenum kit accessory
  • Carton contents: IEC Cable, quick start guide, connector pack, rack mount ears, mounting brackets

Product Details

BrandQSC Audio
ModelSPA4-100
Part Number245-651
UPC684284068545
Unit of MeasureEach
Weight6.6

Product Specifications

Power Output (RMS @ 70V)51W to 100W
Weight Range< 10 lbs.
