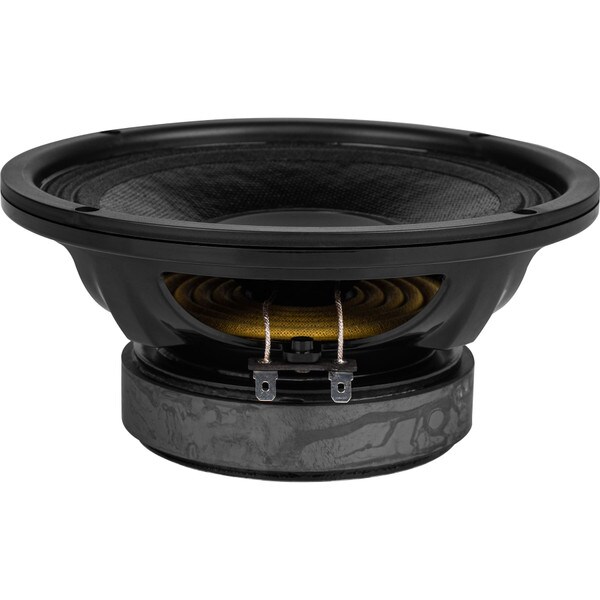

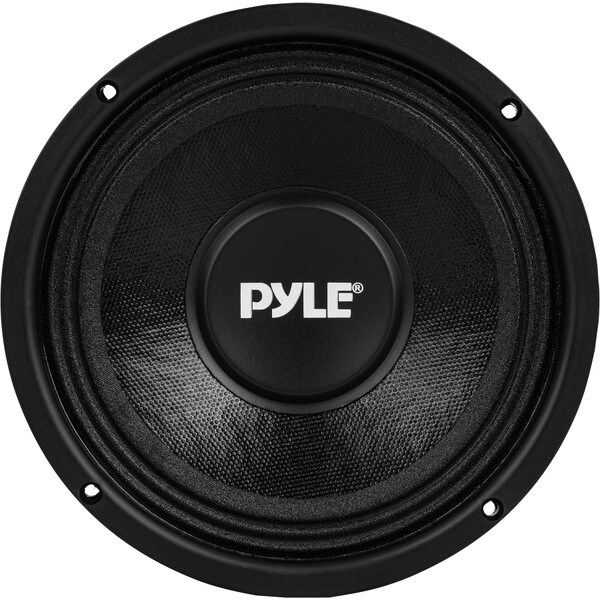

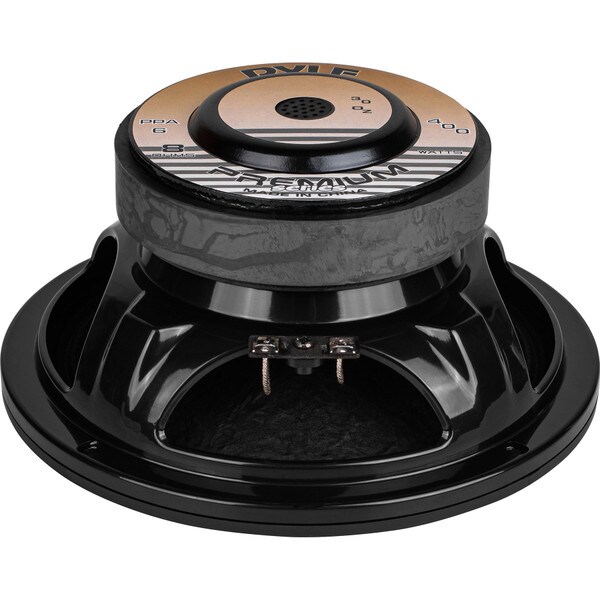

CLEARANCE Pyle PPA6 6-1/2" PA Speaker

Pyle Audio
Part #292-210

CLEARANCE Pyle PPA6 6-1/2" PA Speaker

Pyle Audio
Part #292-210
Model: PPA6
The Pyle Pro PPA6 features a paper coated cone and 1" high temperature aluminum voice coil, cloth edge suspension, and bumped and vented pole pieces for longer excursion and greater power handling.
Key Features
  • 1'' Kapton voice coil
  • Reinforced polymer basket
  • Strong black paper cone
  • Cloth edge suspension
  • Bumped & vented pole piece
  • 8 ohm impedance
  • 30 oz. magnet
60 Day No Hassle Return Policy

Overview

Pyle PPA6 6-1/2" PA Speaker

Pyle Pro professional PA mid-woofers and woofers provide low and mid frequency sound reproduction in a wide range of sizes and capabilities. Featuring strong reinforced polymer frames and large voice coils, these speakers enable the audio professional to design performance systems perfectly suited to their environments and applications at a price that can't be beat.

The Pyle Pro PPA6 features a paper coated cone and 1" high temperature aluminum voice coil, cloth edge suspension, and bumped and vented back plate for longer excursion and greater power handling.

Product Details

BrandPyle Audio
ModelPPA6
Part Number292-210
UPC068888722674
Unit of MeasureEach
Weight3.19

Product Specifications

Nominal Diameter6"
Power Handling (RMS)150 Watts
Power Handling (MAX)400 Watts
Impedance8Ω
Frequency Response94 to 9,000Hz
Sensitivity88.5dB 2.83V/1m
Voice Coil Diameter1"

Thiele-Small Parameters

Resonant Frequency (Fs)94.3Hz
Mechanical Q (Qms)2.97
Electromagnetic Q (Qes)1.27
Total Q (Qts)0.89
Compliance Equivalent Volume (Vas)0.15ft³
Maximum Linear Excursion (Xmax)6.5mm

Materials of Construction

Cone MaterialPaper
Surround MaterialCloth
Voice Coil FormerKapton® / Polyimide
Basket / Frame MaterialPolymer
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter6.54"
Baffle Cutout Diameter5.67"
Depth3.3"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.3ft³
Sealed F393.9Hz
Vented Volume0.5ft³
Vented F367.3Hz
