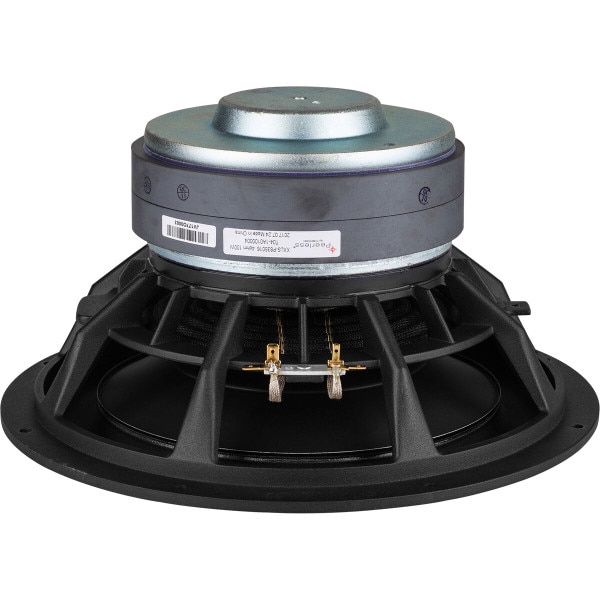

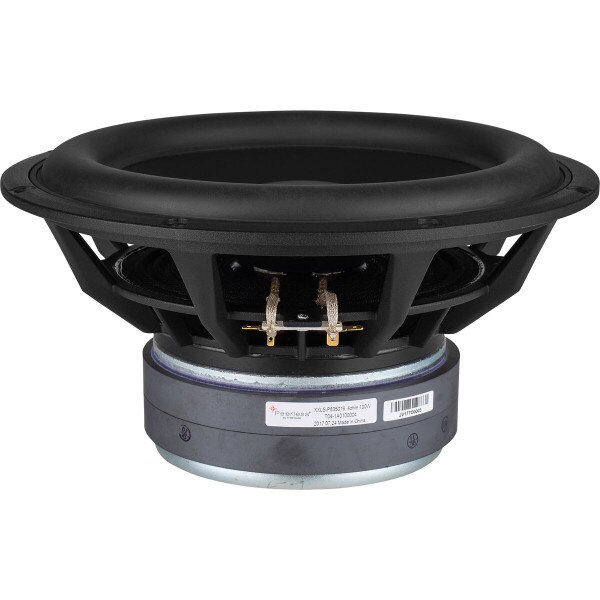

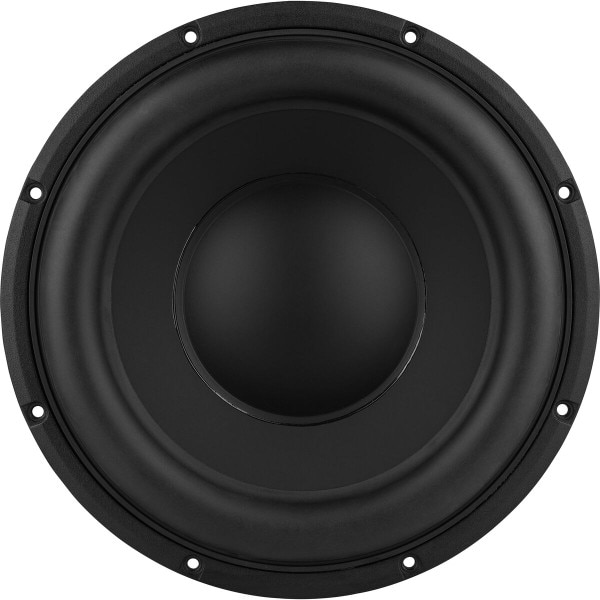

Peerless by Tymphany XXLS-P835016 10" Black Aluminum Cone Subwoofer 4 Ohm

Name: Peerless by Tymphany XXLS-P835016 10" Black Aluminum Cone Subwoofer 4 Ohm
Brand: Peerless by Tymphany
SKU: 264-1648
Price: 198.98 USD
Availability: InStock

Peerless by TymphanyPart # 264-1648

Model: XXLS-P835016

This series of state-of-the-art subwoofers continues to enhance Peerless's reputation for delivering the highest quality components for bass.

Product Details

Brand

Peerless by Tymphany

Model

XXLS-P835016

Part Number

264-1648

UPC

848864045917

Unit of Measure

Each

Weight

14.35

Product Specifications

Nominal Diameter

10"

Power Handling (RMS)

100 Watts

Power Handling (MAX)

200 Watts

Impedance

4Ω

Sensitivity

88.98dB 2.83V/1m

Voice Coil Diameter

Thiele-Small Parameters

Resonant Frequency (Fs)

26.07Hz

DC Resistance (Re)

2.46Ω

Voice Coil Inductance (Le)

0.51mH

Mechanical Q (Qms)

11.27

Electromagnetic Q (Qes)

0.38

Total Q (Qts)

0.37

Compliance Equivalent Volume (Vas)

2.29ft³

Mechanical Compliance of Suspension (Cms)

365mm/N

BL Product (BL)

10.36T·m

Diaphragm Mass Inc. Airload (Mms)

102.1g

Maximum Linear Excursion (Xmax)

12.3mm

Surface Area of Cone (Sd)

356.3cm²

Materials of Construction

Cone Material

Aluminum

Surround Material

Rubber

Basket / Frame Material

Cast Aluminum

Magnet Material

Ferrite

Mounting Information

Overall Outside Diameter

10.59"

Baffle Cutout Diameter

9.41"

Depth

5.99"

# Mounting Holes

Parts Express Staff Recommended Enclosure Volume

Sealed Volume

0.7ft³

Sealed F3

55.8Hz

Vented Volume

1.68ft³

Vented F3

29.5Hz
