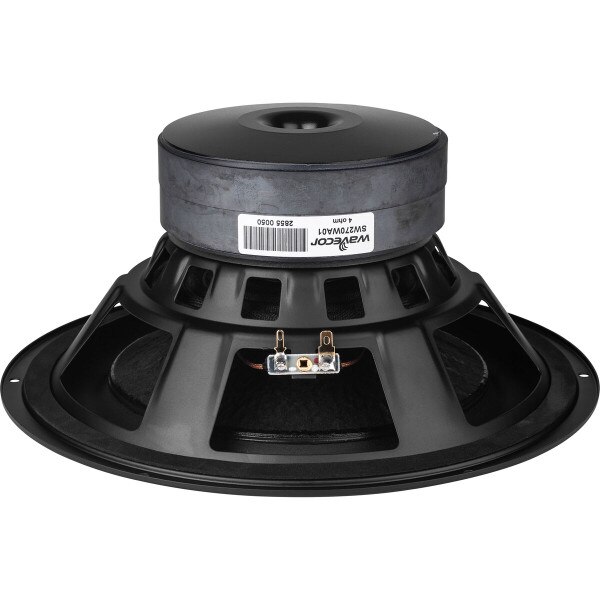

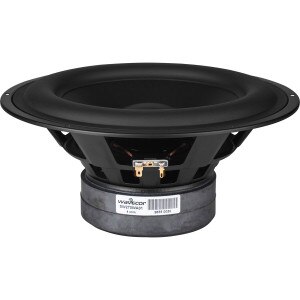

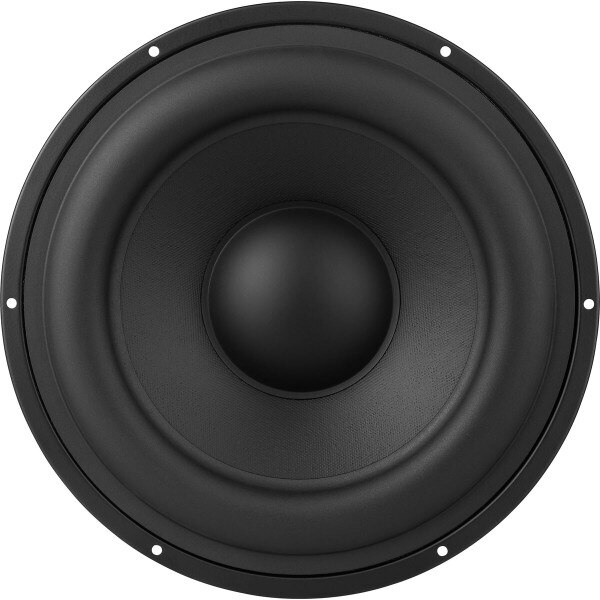

Wavecor SW270WA01 10-1/2" Balanced Drive Paper Cone Subwoofer 4 Ohm

WavecorPart # 298-1072
Model: SW270WA01
The Wavecor SW270WA01 is a 10-1/2" air-dried paper cone subwoofer that was designed specifically for high performance subwoofer applications where sound quality and low distortion are the priorities. The extensive venting on the frame allows for optimal cooling.

Key Features

  • Balanced Drive motor structure for optimal drive force symmetry resulting in largely reduced even order harmonic distortion
  • Very rigid air dried paper cone to ensure piston motion at high levels for reduced distortion
  • Low-loss suspension (high Qm) for better reproduction of details and dynamics
  • New reinforced die cast aluminum chassis with optimal ventilation and increased stroke
  • Large motor with 2” voice coil diameter for better control and power handling
  • Built-in aluminum field-stabilizing ring for reduced distortion at high levels
  • Vented center pole with dual flares for reduced noise level at large cone excursions
Your Price: $181.00
+ FREE SHIPPING
Bulk Pricing
Only 2 In Stock More due any day
Get Notified When Available

We'll send you an email when Wavecor SW270WA01 10-1/2" Balanced Drive Paper Cone Subwoofer 4 Ohm is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Wavecor SW270WA01 10-1/2" Balanced Drive Paper Cone Subwoofer 4 Ohm

The Wavecor SW270WA01 is a 10-1/2" paper cone subwoofer that is equally at home in a home theater or hi-fi installation. This driver utilizes a very rigid air dried paper cone to ensure piston motion at high levels for reduced distortion. The aluminum field-stabilizing rings and balanced drive technology also aid in distortion reduction. The SW270WA01 offers extremely low mechanical losses which allows for great performance in low volume or extreme dynamic situations.

Product Details

BrandWavecor
ModelSW270WA01
Part Number298-1072
UPC848864054377
Unit of MeasureEach
Weight9.9

Product Specifications

Nominal Diameter10"
Power Handling (RMS)150 Watts
Power Handling (MAX)300 Watts
Impedance
Frequency Response28 to 400Hz
Sensitivity88dB 2.83V/1m
Voice Coil Diameter2"

Thiele-Small Parameters

Resonant Frequency (Fs)28Hz
DC Resistance (Re)3.2Ω
Voice Coil Inductance (Le)1.4mH
Mechanical Q (Qms)8.1
Electromagnetic Q (Qes)0.53
Total Q (Qts)0.49
Compliance Equivalent Volume (Vas)1.8ft³
Mechanical Compliance of Suspension (Cms)0.37mm/N
BL Product (BL)9.7T·m
Diaphragm Mass Inc. Airload (Mms)88g
Maximum Linear Excursion (Xmax)11mm
Surface Area of Cone (Sd)312cm²

Materials of Construction

Cone MaterialPaper
Voice Coil Wire MaterialCopper
Voice Coil FormerFiberglass
Basket / Frame MaterialCast Aluminum

Mounting Information

Overall Outside Diameter10.63"
Baffle Cutout Diameter8.98"
Depth4.69"
# Mounting Holes6

Parts Express Staff Recommended Enclosure Volume

Sealed Volume1ft³
Sealed F345.6Hz
Vented Volume1.6ft³
Vented F328.1Hz
