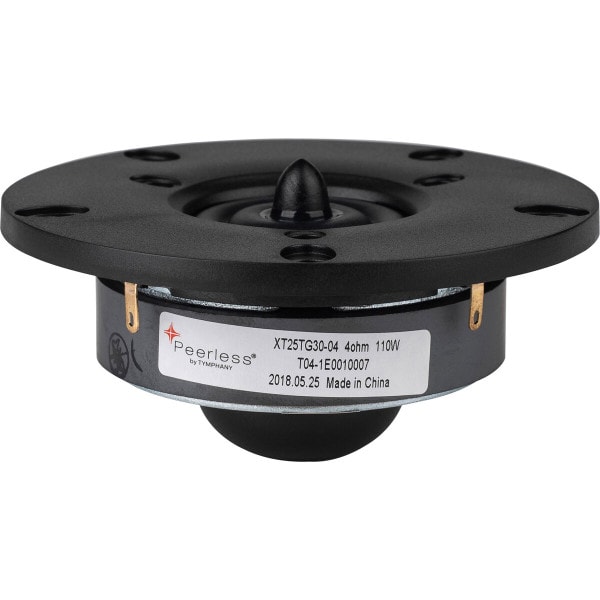

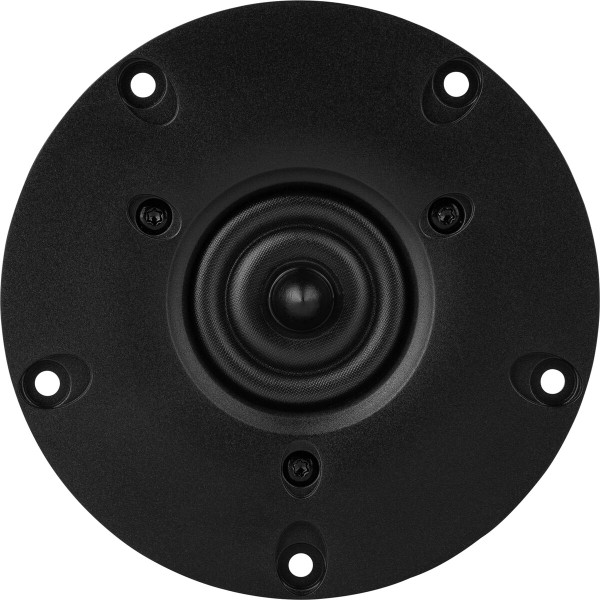

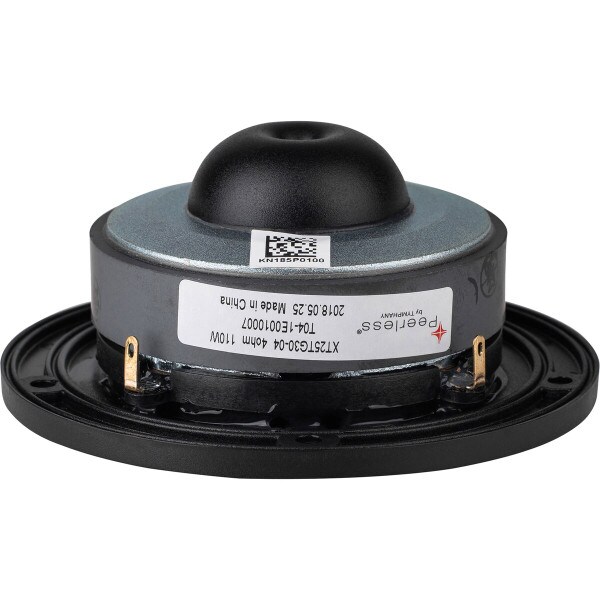

Peerless by Tymphany XT25TG30-04 1" Dual Ring Radiator Tweeter

Peerless by Tymphany
Part #264-1016

Peerless by Tymphany XT25TG30-04 1" Dual Ring Radiator Tweeter

Peerless by Tymphany
Part #264-1016
The XT25TG30-04 from Tymphany features a patented dual concentric diaphragm and a unique wave guide center plug which provide an excellent on- and off-axis response.
Key Features
  • Outstanding performance in 2-way systems
  • Dual ring radiator diaphragm (patented)
  • Waveguide center plug (patented)
  • Copper-clad aluminum VC wire
  • Flat response well beyond 20 kHz
  • Low distortion
Similar items that may interest you:
See all items in Tweeters
Your Price: $28.47
MSRP: $44.99
Save $16.52 (37%)
Bulk Pricing
Quantity:Qty: 1-49 $28.47/ea
Quantity:Qty: 50-99 $28.14/ea
Quantity:Qty: 100-249 $26.57/ea
Quantity:Qty: 250+$25.00/ea

Back-Ordered

Estimated back in stock 8/14/2024
Alert Me When Available
Free Shipping available on orders over $49.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Peerless by Tymphany XT25TG30-04 1" Dual Ring Radiator Tweeter

This superb transducer features a patented dual concentric diaphragm and a unique wave guide center plug which provide an excellent on- and off-axis response. The XT25-type tweeter is acclaimed for its very natural sound with an extremely smooth frequency response that extends well beyond the human hearing range. The dual chamber design and absence of ferrofluid results in a low resonance frequency.

Product Details

BrandPeerless by Tymphany
ModelXT25TG30-04
Part Number264-1016
UPC844632083693
Unit of MeasureEach
Weight1.2

Product Specifications

Cone / Dome Diameter1"
Cutout Diameter2.83
Tweeter TypeSoft Dome
Power Handling (RMS)110 Watts
Impedance4Ω
Frequency Response400 to 20,000Hz
Sensitivity90.8dB 2.83V/1m

Thiele-Small Parameters

Resonant Frequency (Fs)436Hz
DC Resistance (Re)3Ω
Voice Coil Inductance (Le)0.01mH
Mechanical Q (Qms)2.5
Electromagnetic Q (Qes)0.54
Total Q (Qts)0.44

Mounting Information

Overall Outside Diameter4.09"
Depth1.77"
