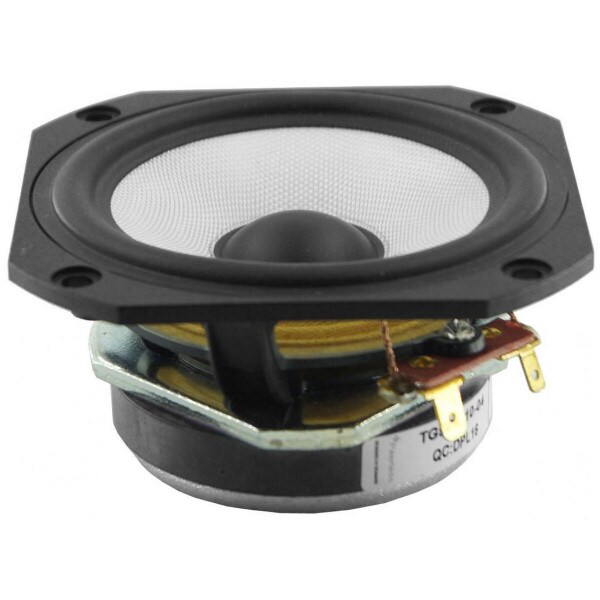

Peerless by Tymphany TG9FD-10-08 3-1/2" Glass Fiber Cone Full-Range Driver 8 Ohm

Peerless by TymphanyPart # 264-1632
Model: TG9FD10-08
8 Questions, 20 Answers or
The Peerless TG9FD10-08 is a 3-1/2" 8 ohm full-range driver, with ferrite magnet, glass fiber cone, rubber surround, and plastic basket, is designed to be a cost-effective high performance full range driver.
Your Price: $18.29
MSRP: $23.99
Save $5.70 (24%)
Bulk Pricing
Back-Ordered
Get Notified When Available

We'll send you an email when Peerless by Tymphany TG9FD-10-08 3-1/2" Glass Fiber Cone Full-Range Driver 8 Ohm is back in stock or available for preorder.

Estimated back in stock 9/5/2025
Alert Me When Available
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Peerless by Tymphany TG9FD-10-08 3-1/2" Glass Fiber Cone Full-Range Driver 8 Ohm

The Peerless TG9FD10-08 is a 3-1/2" 8 ohm full-range driver, with ferrite magnet, glass fiber cone, rubber surround, and plastic basket, is designed to be a cost-effective high performance full range driver. The motor contains a copper cap to lower inductance and distortion. The product was designed with television and compact applications in mind.

Product Details

BrandPeerless by Tymphany
ModelTG9FD10-08
Part Number264-1632
UPC848864045825
Unit of MeasureEach
Weight0.71

Product Specifications

Nominal Diameter3-1/2"
Power Handling (RMS)25 Watts
Power Handling (MAX)50 Watts
Impedance8Ω
Sensitivity84.43dB 2.83V/1m
Voice Coil Diameter0.76"

Thiele-Small Parameters

Resonant Frequency (Fs)105Hz
DC Resistance (Re)6.11Ω
Voice Coil Inductance (Le)0.11mH
Mechanical Q (Qms)1.75
Electromagnetic Q (Qes)1.23
Total Q (Qts)0.72
Compliance Equivalent Volume (Vas)0.035ft³
Mechanical Compliance of Suspension (Cms)502.8mm/N
BL Product (BL)3.32T·m
Diaphragm Mass Inc. Airload (Mms)2.5g
Maximum Linear Excursion (Xmax)2.6mm
Surface Area of Cone (Sd)36.3cm²

Materials of Construction

Cone MaterialFiberglass
Surround MaterialRubber
Voice Coil Wire MaterialCopper
Basket / Frame MaterialPolymer
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter3.31"
Baffle Cutout Diameter3.07"
Depth1.7"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.07ft³
Sealed F3118.2Hz
Vented Volume0.09ft³
Vented F378.4Hz
