CLEARANCE Peerless by Tymphany NE315W-08 12" Subwoofer Speaker

Peerless by Tymphany
Part #264-1142

CLEARANCE Peerless by Tymphany NE315W-08 12" Subwoofer Speaker

Peerless by Tymphany
Part #264-1142
Model: NE315W-08

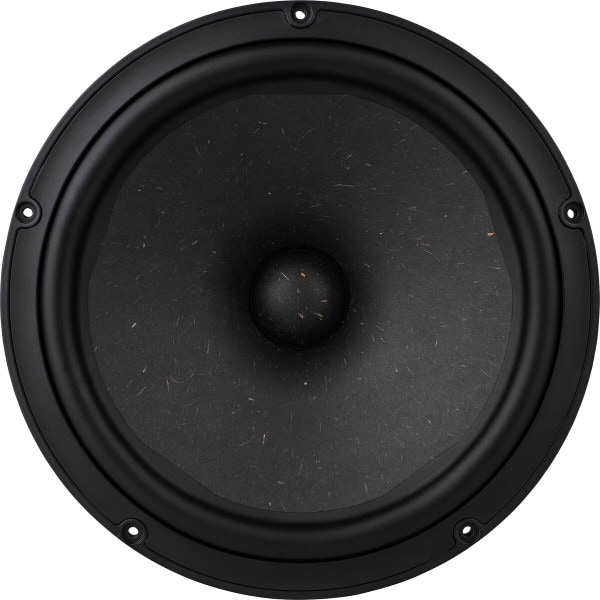

Tymphany's NE315W-08 12" neodymium subwoofer features a sophisticated, aerodynamic cast aluminum basket that also serves as a heat sink. The driver's Pentacone diaphragm technology and high-strength neodymium magnet provide incredibly deep, clean bass fundamentals.
Key Features
  • Cast aluminum frame promotes motor cooling
  • Sculpted design improves airflow and reduces reflections
  • High-strength compact neodymium magnet system
  • Proprietary coated natural wood fiber cone with half-roll rubber surround
  • Long-throw 2" voice coil on strong, heat resistant titanium former
  • Copper pole piece cap for reduced inductance
  • 8 ohm nominal impedance
60 Day No Hassle Return Policy

Overview

Peerless by Tymphany NE315W-08 12" Subwoofer Speaker

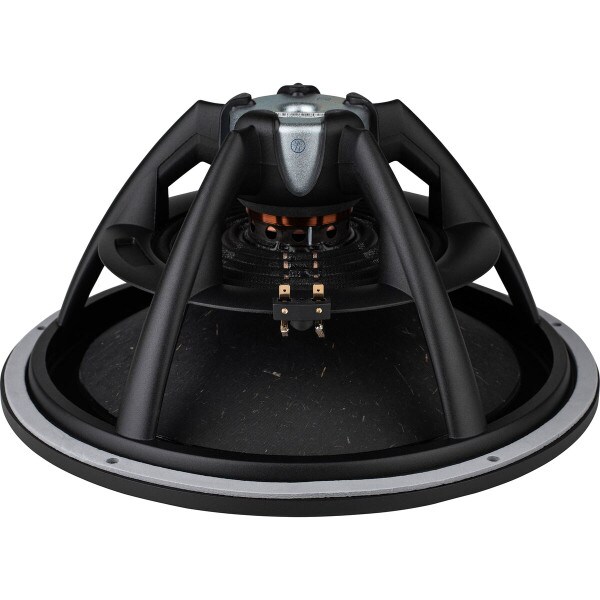

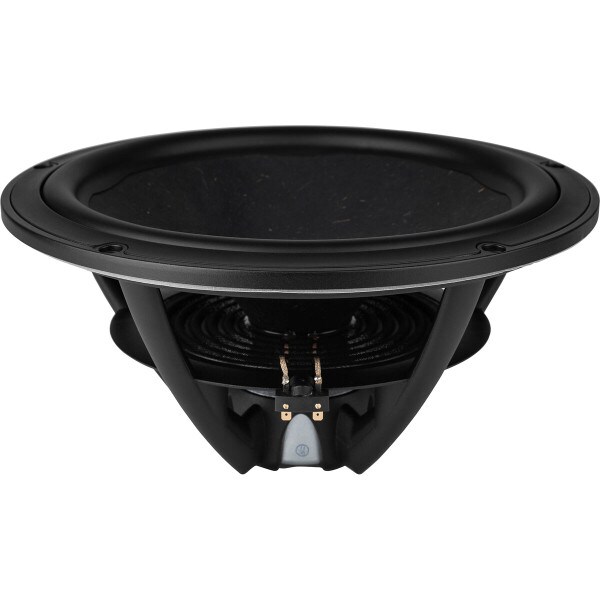

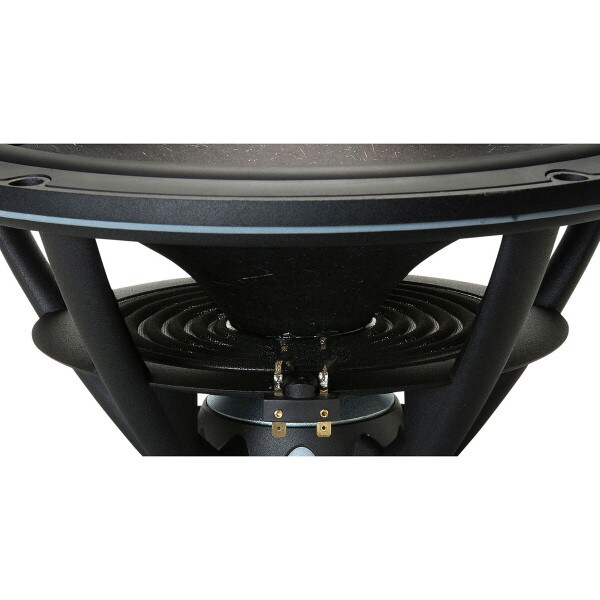

The Tymphany NE315W-08 12" subwoofer's open cast aluminum basket design minimizes internal acoustic reflections and helps cool the neodymium motor. An additional heat sink supplements thermal dissipation. The cone is constructed of a coated natural wood fiber, with a butyl rubber surround designed by finite element analysis for linearity of performance. FEA techniques also contribute to the motor's copper cap, which reduces inductance and extends the driver's upper frequency range.

Product Details

BrandPeerless by Tymphany
ModelNE315W-08
Part Number264-1142
UPC844632092657
Unit of MeasureEach
Weight6.1

Product Specifications

Nominal Diameter12"
Power Handling (RMS)190 Watts
Power Handling (MAX)380 Watts
Impedance8Ω
Frequency Response20 to 1,000Hz
Sensitivity85.4dB 2.83V/1m
Voice Coil Diameter2"

Thiele-Small Parameters

Resonant Frequency (Fs)20Hz
DC Resistance (Re)6.3Ω
Voice Coil Inductance (Le)0.54mH
Mechanical Q (Qms)11.72
Electromagnetic Q (Qes)0.36
Total Q (Qts)0.35
Compliance Equivalent Volume (Vas)5.7ft³
Mechanical Compliance of Suspension (Cms)0.45mm/N
BL Product (BL)17.68T·m
Diaphragm Mass Inc. Airload (Mms)140.1g
Maximum Linear Excursion (Xmax)9.35mm
Surface Area of Cone (Sd)506.7cm²

Materials of Construction

Cone MaterialWood Fiber
Surround MaterialRubber
Voice Coil FormerTitanium
Basket / Frame MaterialCast Aluminum
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter12.4"
Baffle Cutout Diameter11.33"
Depth6.19"
# Mounting Holes5

Parts Express Staff Recommended Enclosure Volume

Sealed Volume1ft³
Sealed F346.7Hz
Vented Volume2ft³
Vented F330.7Hz
