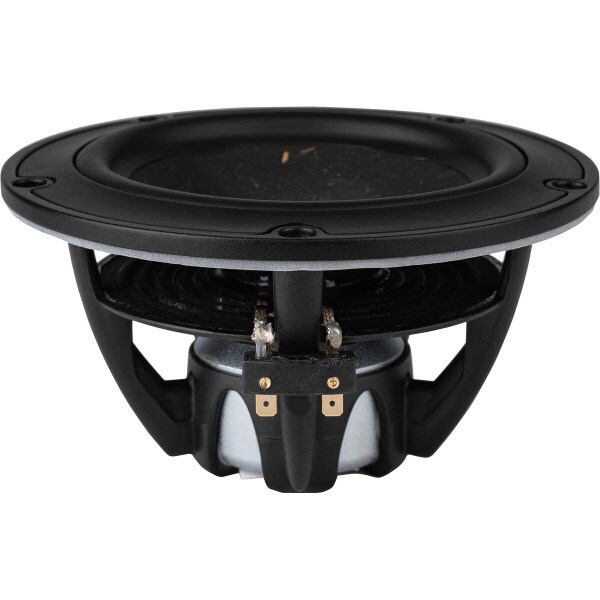

Peerless by Tymphany NE149W-08 5-1/4" Fiber Cone Woofer Speaker 8 Ohm

Peerless by TymphanyPart # 264-1132
Model: NE149W-08
The advanced design and superior construction of Tymphany's NE149W-08 5-1/4" neodymium speaker make it a preferred component for sophisticated audio designs.

Key Features

  • Sculpted design improves airflow and reduces reflections
  • High-strength compact neodymium magnet system
  • Proprietary coated natural wood fiber cone with half-roll rubber surround
  • Copper pole piece cap for extended HF response
  • Long-throw 1-1/2" voice coil on titanium former
  • Cast aluminum frame promotes motor cooling
  • 8 ohm nominal impedance
Similar items that may interest you:
Dayton Audio DC130A-8 5-1/4" Classic Woofer Speaker
Price: $24.98Part # 295-303
GRS 5PF-8 5-1/4" Paper Cone Foam Surround Woofer
Price: $9.59Part # 292-405
See all items in Woofers
Your Price: $86.49
+ FREE SHIPPING
MSRP: $114.99
Save $28.50 (25%)
Bulk Pricing
Back-Ordered
Get Notified When Available

We'll send you an email when Peerless by Tymphany NE149W-08 5-1/4" Fiber Cone Woofer Speaker 8 Ohm is back in stock or available for preorder.

Estimated back in stock 8/15/2025
Alert Me When Available
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Peerless by Tymphany NE149W-08 5-1/4" Fiber Cone Woofer Speaker 8 Ohm

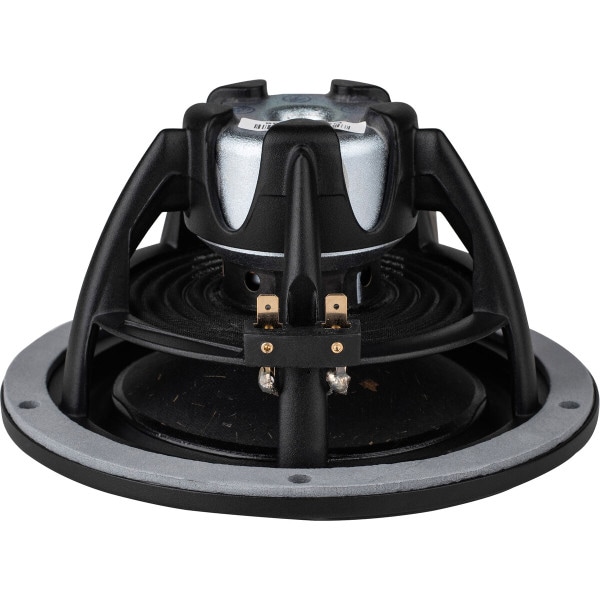

The Tymphany NE149W-08 5-1/4" neodymium woofer is characterized by the NE Series' cast aluminum basket—an innovative sculpted, open design that minimizes internal acoustic reflections and assists the neodymium motor's thermal management.

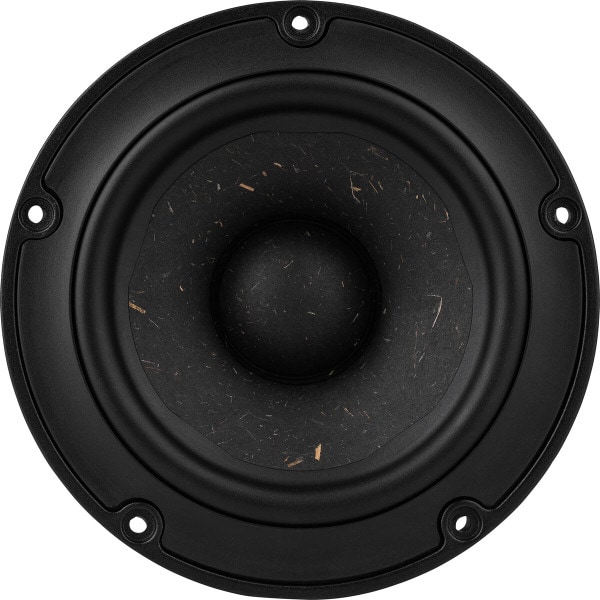

A coated natural wood fiber cone with a butyl rubber surround is FEA optimized for linearity of performance. Finite element analysis techniques also contribute to inclusion of the motor's copper cap, which reduces inductance and extends the speaker's upper frequency performance.

Product Details

BrandPeerless by Tymphany
ModelNE149W-08
Part Number264-1132
UPC844632092602
Unit of MeasureEach
Weight1.55

Product Specifications

Nominal Diameter5-1/4"
Power Handling (RMS)60 Watts
Power Handling (MAX)120 Watts
Impedance8Ω
Frequency Response50 to 5,000Hz
Sensitivity86dB 2.83V/1m
Voice Coil Diameter1.5"

Thiele-Small Parameters

Resonant Frequency (Fs)54Hz
DC Resistance (Re)6.3Ω
Voice Coil Inductance (Le)0.08mH
Mechanical Q (Qms)8.19
Electromagnetic Q (Qes)0.4
Total Q (Qts)0.38
Compliance Equivalent Volume (Vas)0.3ft³
Mechanical Compliance of Suspension (Cms)0.84mm/N
BL Product (BL)7.42T·m
Diaphragm Mass Inc. Airload (Mms)10.3g
Maximum Linear Excursion (Xmax)5mm
Surface Area of Cone (Sd)85cm²

Materials of Construction

Cone MaterialWood Fiber
Surround MaterialRubber
Voice Coil FormerTitanium
Basket / Frame MaterialCast Aluminum
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter5.39"
Baffle Cutout Diameter4.92"
Depth3.18"
# Mounting Holes5

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.15ft³
Sealed F3113.8Hz
Vented Volume0.35ft³
Vented F351.6Hz
