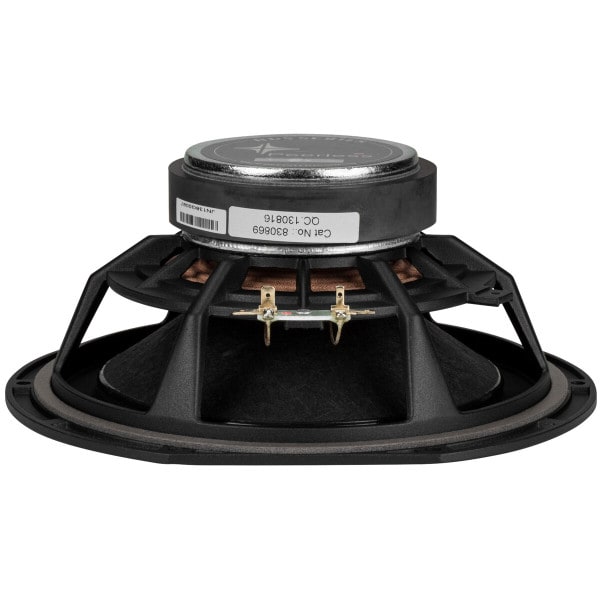

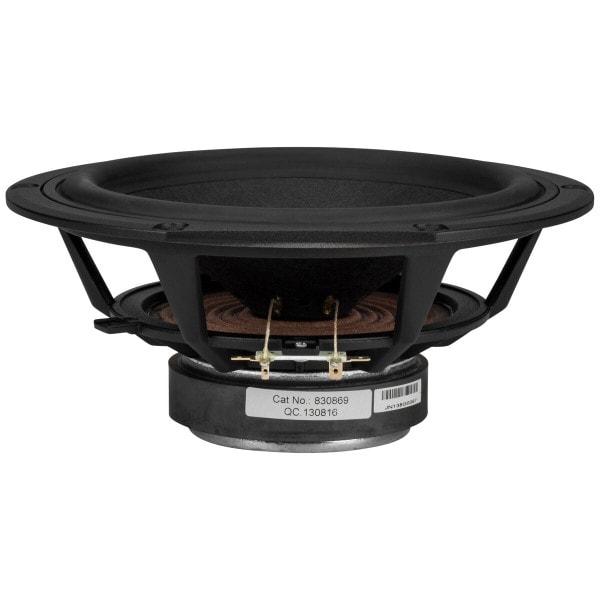

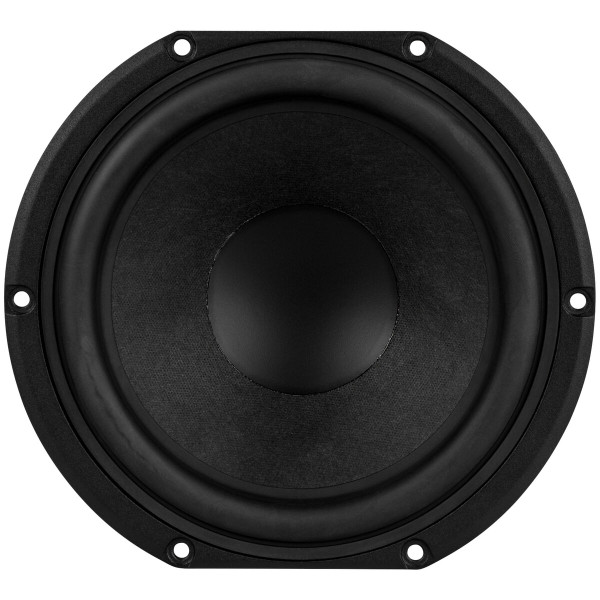

CLEARANCE Peerless by Tymphany 830869 8" Nomex Cone HDS Woofer

Name: Peerless by Tymphany 830869 8" Nomex Cone HDS Woofer
Brand: Peerless by Tymphany
SKU: 264-1098
Price: 61.21 USD
Availability: OutOfStock
Rating: 5 (13 reviews)

Read 13 Reviews | 26 Questions, 63 Answers or

Peerless by Tymphany

Part #264-1098

CLEARANCE Peerless by Tymphany 830869 8" Nomex Cone HDS Woofer

Peerless by Tymphany

Part #264-1098

Model: HDS-P830869

Read 13 Reviews | 26 Questions, 63 Answers or

The Peerless High Definition Sound (HDS) Series offers high-quality solutions for multi-way speaker systems employing vented box alignments.

Key Features

Truncated cast aluminum frame
Nomex cone with half-roll rubber surround
1-1/4" diameter long-throw voice coil
Shorting rings for reduced distortion
Under-spider and voice coil ventilation

See all items in Woofers

Get Notified When Available

We'll send you an email when Peerless by Tymphany 830869 8" Nomex Cone HDS Woofer is back in stock or available for preorder.

60 Day No Hassle Return Policy

Frequently Bought Together

Parts Express Speaker Gasketing Tape 1/8" x 3/8" x 50 ft. Roll	$13.98
Dayton Audio SBPP-SI Binding Post Plate Silver Anodized	$12.98
Parts Express #6 x 3/4" Deep Thread Pan Head Screws Black 100 Pcs.	$6.49

Total Price: $33.45

This Product:Peerless by Tymphany 830869 8" Nomex Cone HDS Woofer$61.21

Parts Express Speaker Gasketing Tape 1/8" x 3/8" x 50 ft. Roll$13.98

Dayton Audio SBPP-SI Binding Post Plate Silver Anodized$12.98

Parts Express #6 x 3/4" Deep Thread Pan Head Screws Black 100 Pcs.$6.49

4 ItemsTotal Price: $33.45

Overview

Peerless by Tymphany 830869 8" Nomex Cone HDS Woofer

The Peerless High Definition Sound (HDS) Series offers high-quality solutions for multi-way speaker systems employing vented box alignments. This driver utilizes the famous Peerless Nomex cone which offers neutral and accurate audio reproduction.

A powerful ferrite magnet system is coupled to a finite element analysis-designed suspension system, containing a linear spider design and rubber surround. The motor incorporates an aluminum shorting ring that reduces coil inductance, extending frequency response performance and reducing second harmonic distortion. A cast aluminum basket provides high structural rigidity, heat-sinking capacity for the motor, and additional ventilation under the spider that in combination with a vented cone neck reduces air compression effects.

Product Details
Brand	Peerless by Tymphany
Model	HDS-P830869
Part Number	264-1098
UPC	844632084102
Unit of Measure	Each
Weight	4.1

Product Specifications
Nominal Diameter	8"
Power Handling (RMS)	60 Watts
Power Handling (MAX)	150 Watts
Impedance	8Ω
Frequency Response	30 to 2,000Hz
Sensitivity	90.2dB 2.83V/1m
Voice Coil Diameter	1.25"

Thiele-Small Parameters
Resonant Frequency (Fs)	30Hz
DC Resistance (Re)	5.9Ω
Voice Coil Inductance (Le)	0.63mH
Mechanical Q (Qms)	4.4
Electromagnetic Q (Qes)	0.33
Total Q (Qts)	0.31
Compliance Equivalent Volume (Vas)	3.09ft³
Mechanical Compliance of Suspension (Cms)	1.21mm/N
BL Product (BL)	8.92T·m
Diaphragm Mass Inc. Airload (Mms)	23.99g
Maximum Linear Excursion (Xmax)	5.5mm
Surface Area of Cone (Sd)	227cm²

Materials of Construction
Cone Material	Nomex
Surround Material	Rubber
Basket / Frame Material	Cast Aluminum
Magnet Material	Ferrite

Mounting Information
Overall Outside Diameter	8.86"
Baffle Cutout Diameter	7.48"
Depth	3.52"
# Mounting Holes	6

Parts Express Staff Recommended Enclosure Volume
Sealed Volume	0.56ft³
Sealed F3	76.8Hz
Vented Volume	1.2ft³
Vented F3	38.4Hz
