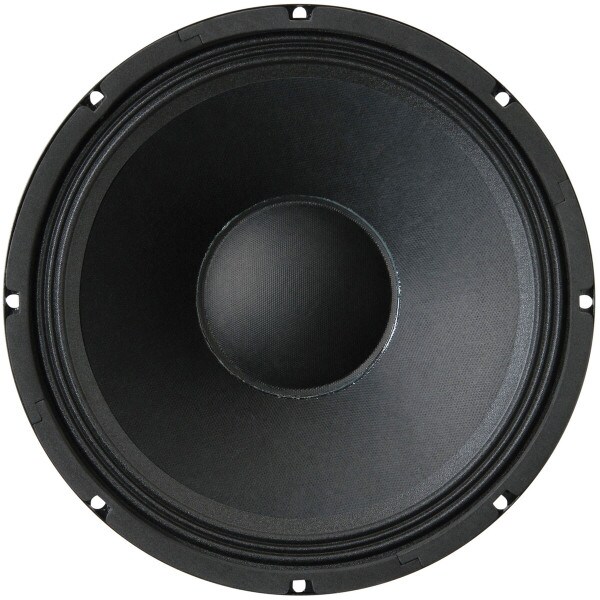

Peavey's Pro Audio replacement speakers are great for getting your Professional cabinet and DJ speakers up and running again, at an economical price. Kevlar® reinforced paper cones, Kapton formers with Nomex® stiffeners, and stamped steel frames increase durability without affecting sensitivity (for high output), or power handling. Peavey Pro Audio replacement drivers work well in ported or sealed cabinets. Peavey item 00497080.
Product Details | |
|---|---|
| Brand | Peavey |
| Model | Pro 15 |
| Part Number | 294-3122 |
| UPC | 014367106428 |
| Unit of Measure | Each |
| Weight | 14.15 |
Product Specifications | |
|---|---|
| Nominal Diameter | 15" |
| Power Handling (RMS) | 200 Watts |
| Power Handling (MAX) | 800 Watts |
| Impedance | 8Ω |
| Frequency Response | 40 to 3,000Hz |
| Sensitivity | 96.4dB 2.83V/1m |
| Voice Coil Diameter | 2.5" |
Thiele-Small Parameters | |
|---|---|
| Resonant Frequency (Fs) | 34.4Hz |
| DC Resistance (Re) | 6Ω |
| Voice Coil Inductance (Le) | 0.74mH |
| Mechanical Q (Qms) | 3.58 |
| Electromagnetic Q (Qes) | 0.48 |
| Total Q (Qts) | 0.43 |
| Compliance Equivalent Volume (Vas) | 11.71ft³ |
| Mechanical Compliance of Suspension (Cms) | 0.32mm/N |
| BL Product (BL) | 13.35T·m |
| Diaphragm Mass Inc. Airload (Mms) | 66.5g |
| Maximum Linear Excursion (Xmax) | 2.5mm |
| Surface Area of Cone (Sd) | 855cm² |
Materials of Construction | |
|---|---|
| Cone Material | Paper / Kevlar |
| Surround Material | Cloth |
| Voice Coil Former | Kapton® / Polyimide |
| Basket / Frame Material | Steel |
| Magnet Material | Ferrite |
Mounting Information | |
|---|---|
| Overall Outside Diameter | 15" |
| Baffle Cutout Diameter | 14" |
| Depth | 6.5" |
| # Mounting Holes | 8 |
Parts Express Staff Recommended Enclosure Volume | |
|---|---|
| Sealed Volume | 3.25ft³ |
| Sealed F3 | 66.2Hz |
| Vented Volume | 4.5ft³ |
| Vented F3 | 45.9Hz |
