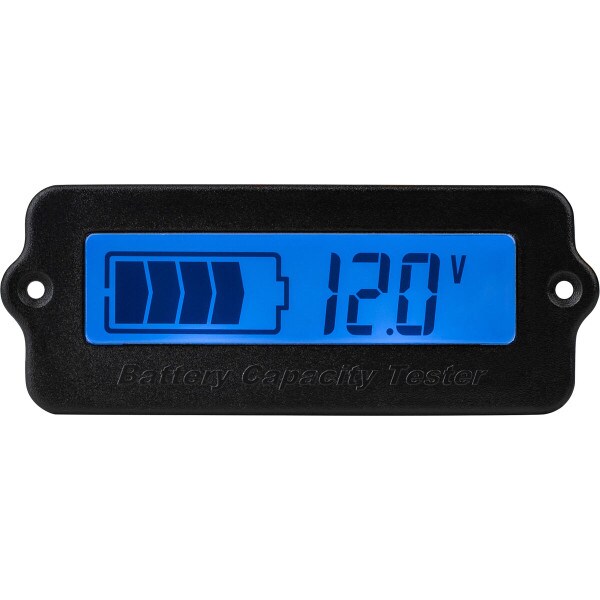

  • Panel Mount LCD Backlit Digital Battery Test Meter

Panel Mount LCD Backlit Digital Battery Test Meter

Parts Express
Part #320-541

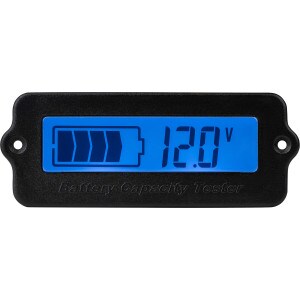

Panel Mount LCD Backlit Digital Battery Test Meter

Parts Express
Part #320-541
Keep track of your DIY project's battery pack condition with this panel mount, backlit LCD battery meter. The tester works with Lead Acid or Li-Ion batteries from 12 to 48 VDC.
Key Features
  • Blue backlight makes it easy to read
  • Level and percentage status display
  • Adjustable for multiple voltages from 12 to 48 VDC using lead-acid or 3 to 15 3.7V Li-ion batteries
  • Includes two #2 x 1/4" screws for mounting
Your Price: $9.98
MSRP: $15.99
Save $6.01 (38%)
Bulk Pricing
Order in the next 5 hr 7 min to ship today. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Panel Mount LCD Backlit Digital Battery Test Meter

Many internal rechargeable battery packs have one external LED light which changes color when the battery pack needs to be recharged. Frustration sets in when you think the battery has a good charge, but fails when you need it. This battery test panel displays five LCD segments and a numerical percentage showing how much battery life is left. This enables you to recharge the battery before it reaches a stage that could damage the battery or unexpectedly lose power when needed. The display and the blue backlight stay on continuously unless you add a NO push button switch. Easily flush mount the battery tester/meter in a 2" x 13/16" hole.

Specifications: • Body dimensions: 1.98" W x 0.8" H x 0.61" D (50.29 x 20.32 x 15.49 mm)with rear socket • External total dimensions: 2.37" W x 0.91" H x 0.61" D (60.2 x 23.11 x 15.49 mm) with rear socket • Hole dimensions: 2" x 13/16" (50.8 x 20.64 mm) • Display dimensions: 1.7" W x 0.45" H (43.18 x 11.43 mm) • Screw hole spacing: 2.08" (53 mm) to center • Working current: 5-15 mA (with backlight) • Working voltage: 12V to 48 VDC • Voltage test range: 12 to 48 VDC • Plug test leads: Black and red tinned 7.5" (190.5 mm) • Energy resolution: 1% • Voltmeter accuracy: 1% • Working temperature Range: -4° to 158° F (-20~70° C) • Operating humidity: 10-80% (non-condensing).

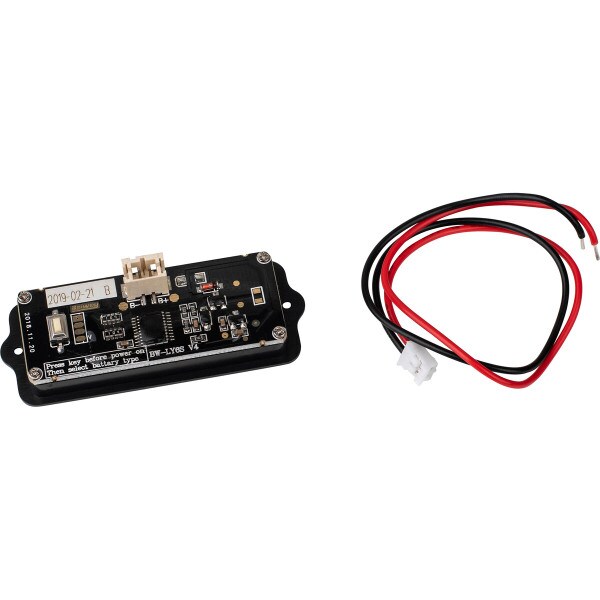

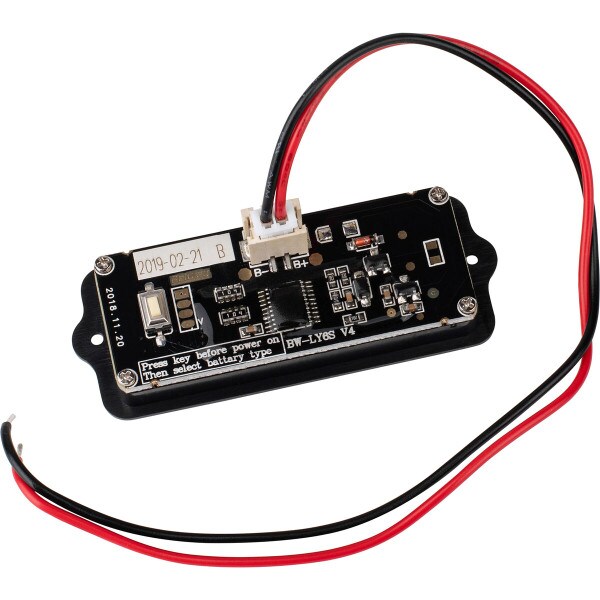

Battery selection instructions:
1. Disconnect tester from battery pack or battery

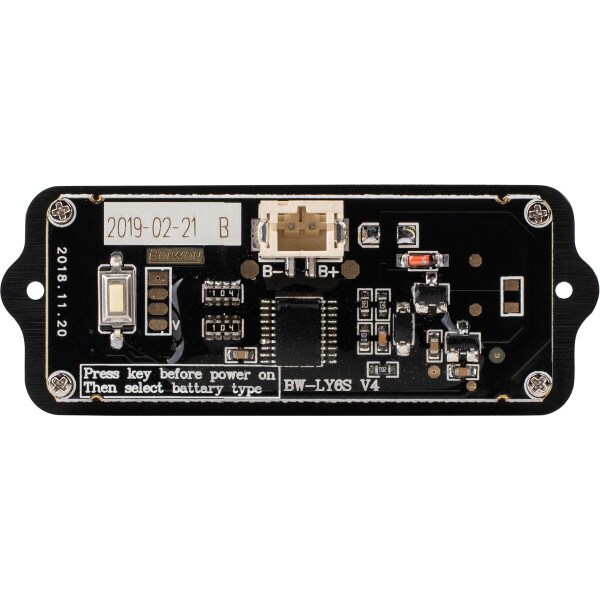

2. Hold rear button down while reapplying battery
3. Release the button and the screen will display two characters, first one for number of batteries, and the other for type of battery. "P" is for lead-acid and "C" is for 3.7V Li-ion. The only combinations available are listed below.
4. Repeatedly press the button until one of the selections below match your requirement.

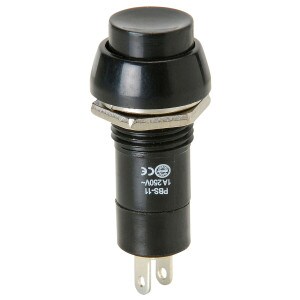

5. Disconnect power and reattach battery pack for continuous testing. Install a N.O. push button switch to the positive side for momentary testing.

Lead-acid
• 1P: 12V
• 2P: 24V
• 3P: 36V
• 4P: 48V

Li-ion
• 3c: Three cells
• 4c: Four cells
• 5c: Five cells
• 6c: Six cells
• 7c: Seven cells
• 8c: Eight cells
• 9c: Nine cells
• 10c: Ten cells
• 11c: Eleven cells
• 12c: Twelve cells
• 13c: Thirteen cells
• 14c: Fourteen cells
• 15c: Fifteen cells
