Heat Shrink Insulated Waterproof Solder Butt Connectors (26-24 AWG) White 25-Pack

Parts ExpressPart # 095-922
These solder, adhesive heat shrink butt connectors are perfect for the person who doesn't like to solder or crimp when splicing wires together. Hot air from a heat gun melts the center solder ring into the two crossed bare wires and the outer tube shrinks around the insulated wire jacket resulting in a firm, water tight, long lasting connection.

Key Features

  • No crimping required for convenience
  • Adhesive lined heat shrink seals water out to prevent corrosion
  • Transparent heat shrink sleeve enables inspection of the solder joint
  • Color coded sleeve identifies industry standard wire gauge recommended
  • Economical 25-pack
Your Price: $7.69
MSRP: $11.99
Save $4.30 (36%)
Bulk Pricing
Quantity:Qty: 1-9 $7.69/ea
Quantity:Qty: 10+ $6.89/ea
Back-Ordered
Get Notified When Available

We'll send you an email when Heat Shrink Insulated Waterproof Solder Butt Connectors (26-24 AWG) White 25-Pack is back in stock or available for preorder.

Estimated back in stock 10/17/2025
Alert Me When Available
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Heat Shrink Insulated Waterproof Solder Butt Connectors (26-24 AWG) White 25-Pack

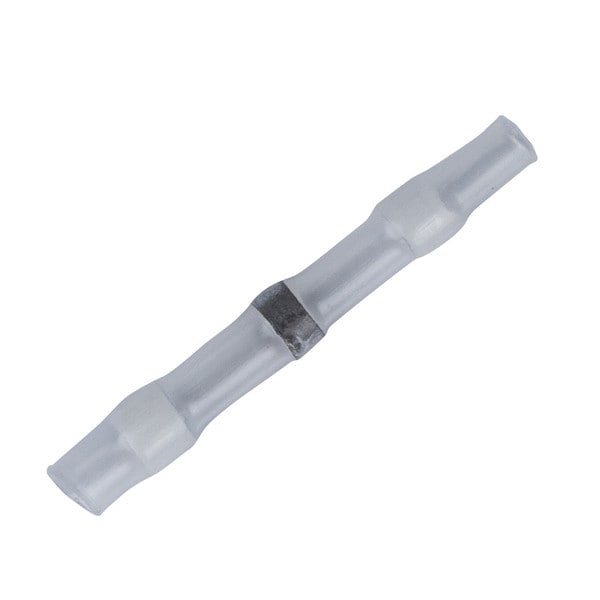

Solder is recommended to give you the best connection between wires, and wire connectors, but isn't always possible or practical. Standard crimp butt splice connectors can pull loose if not done properly and don't seal out moisture which can lead to intermittent connections. The solder ring inside the NTE adhesive lined heatshrink tube enables you to get that perfect connection without using a soldering iron or gun, and no crimping is needed. Just stick your bare wires into each side of the butt connector so they cross underneath the solder ring (without having any bare wires outside the heat shrink tubing). Apply hot forced air, 266° F or higher, to the solder ring until the solder melts and the tubing shrinks tightly around the wire jacket. Inspect the bare wires in the center of the butt connector to ensure they are still crossed and the solder is melted to each wire. The adhesive melts with the solder and the tubing shrinks to give the splice a water tight seal. Heat guns (like our 370-364) reach the desired temperature quickly and work the best. A very hot hair dryer may also work. The 1.06" (27 mm) long clear transparent sleeve with white rings identifies that these solder butt connectors are for 26 to 24 gauge wire.

Product Details

BrandParts Express
Part Number095-922
UPC848864056852
Unit of MeasureEach
Weight0.05

Product Specifications

Connector TypeButt Splice
Terminal / Stud SizeN/A
Wire Gauge26-24 AWG
