  • PRV Audio WG3220Ti-Nd-16 Compression Driver & Line Array Waveguide Package

CLEARANCE PRV Audio WG3220Ti-Nd-16 Compression Driver & Line Array Waveguide Package

PRV AudioPart # 294-3014
Model: WG-3220Ti-Nd16
PRV Audio's WG3220Ti-Nd-16 neodymium compression driver and line array waveguide combo is designed to deliver wide horizontal dispersion to evenly fill large areas with sound. With a 16 ohm impedance this combo is perfect for wiring into groups to maximize overall output capability.

Key Features

  • Smooth response from 1,500 to 9,000 Hz for natural high frequency reproduction
  • Wide horizontal dispersion with narrow vertical dispersion to easily fill large spaces
  • Compact design makes it easy to run multiples for greater output
  • 16 ohm impedance simplifies group wiring
Get Notified When Available

We'll send you an email when PRV Audio WG3220Ti-Nd-16 Compression Driver & Line Array Waveguide Package is back in stock or available for preorder.

60 Day No Hassle Return Policy

Overview

PRV Audio WG3220Ti-Nd-16 Compression Driver & Line Array Waveguide Package

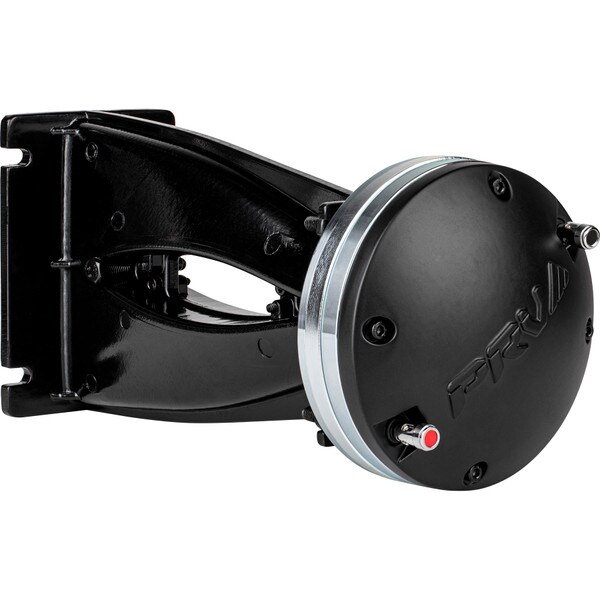

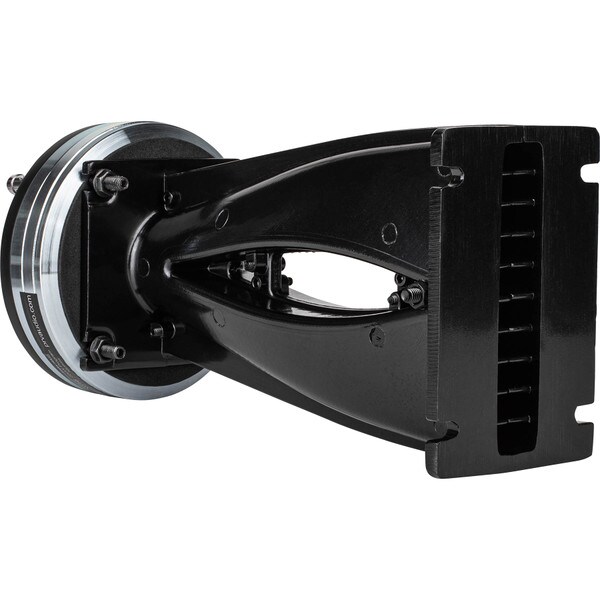

The WG3220Ti-Nd-16 neodymium compression driver and waveguide combo from PRV Audio is perfect for building compact and lightweight high output line array systems with long throw capability. The unique horn design produces extremely wide horizontal and narrow vertical dispersion to put the sound right were you need it while minimizing unwanted floor and ceiling reflections. The lightweight D3220Ti-Nd16 neodymium compression driver uses a 3" titanium diaphragm to deliver accurate and smooth response up to the highest frequencies. With a 16 ohm impedance, wiring multiple WG3220Ti-Nd-16 combos is a snap, making it easy to create large high frequency arrays that are capable of delivering incredible overall output capability.

Specifications: • Power handling: 110 watts RMS (crossover frequency 1,500 kHz, 12 dB/octave), 220 watts max • Impedance: 16 ohms • Useable range: 1,500-19,000 Hz • Dispersion: 140° H x 15° V • Recommended crossover: 1,500 Hz, 12 dB/octave • SPL: 102 dB 1W/1m • Dimensions: 5.24" H x 3.51" W x 10.57" D.

Product Details

BrandPRV Audio
ModelWG-3220Ti-Nd16
Part Number294-3014
UPC799928734844
Unit of MeasureEach
Weight8

Product Specifications

Diaphragm MaterialTitanium
Power Handling (RMS)110 Watts
Impedance16Ω
