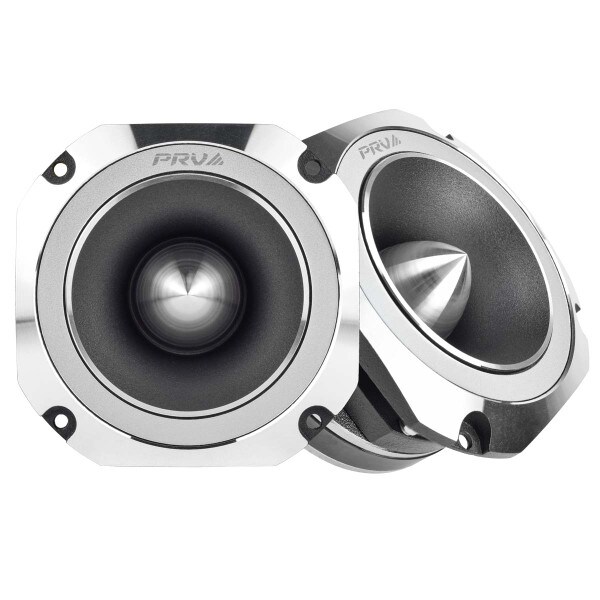

PRV Audio TW700Ti-4-SLIM Super Tweeter 4 Ohm Slim Version Pair

PRV Audio
Part #294-3446

PRV Audio TW700Ti-4-SLIM Super Tweeter 4 Ohm Slim Version Pair

PRV Audio
Part #294-3446
Model: TW700Ti-4 SLIM

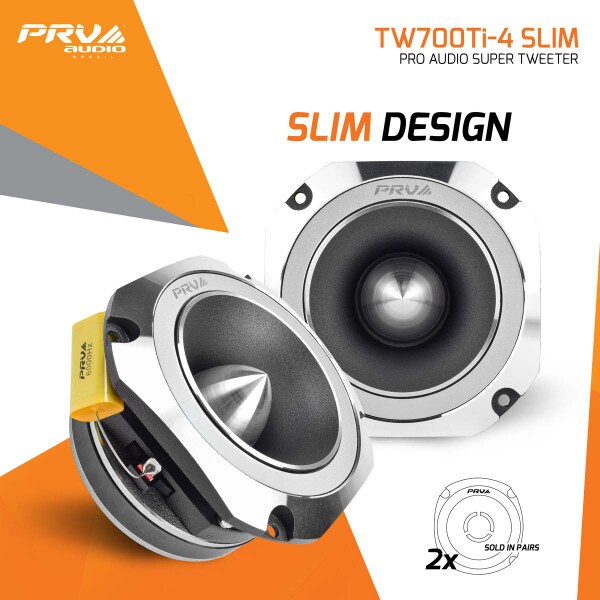

A slim version of the popular TW700Ti series, the PRV Audio TW700Ti-4 SLIM is a compact, high-performance 4-inch bullet tweeter engineered to deliver exceptional high-frequency clarity in car audio systems. Designed with a slim profile and flat sides for close side-by-side mounting, this tweeter ensures precise sound reproduction in even the most demanding audio systems.

Key Features
  • Slim design with flat sides for efficient side-by-side mounting
  • Frequency response up to 20,000 Hz for exceptional clarity
  • 105 dB sensitivity for high-output performance with minimal distortion
  • 1.5-inch high-temperature copper voice coil for durability and power handling

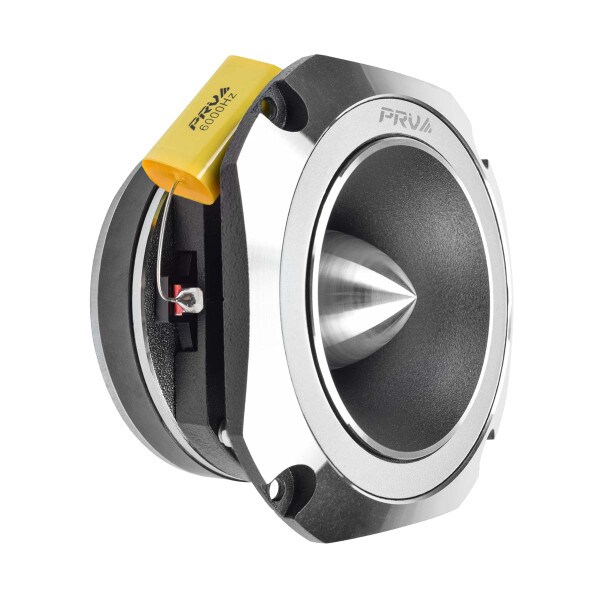

  • Built-in capacitor to protect against damaging frequencies at high power
  • Compact size ideal for custom car audio installations
  • Rugged aluminum construction for reliable long-term use
Your Price: $59.91
MSRP: $74.89
Save $14.98 (20%)
Bulk Pricing
Order in the next 4 hr 45 min to ship today. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

PRV Audio TW700Ti-4-SLIM Super Tweeter 4 Ohm Slim Version Pair

PRV Audio TW700Ti-4 SLIM Pro Audio Super Tweeter Pair

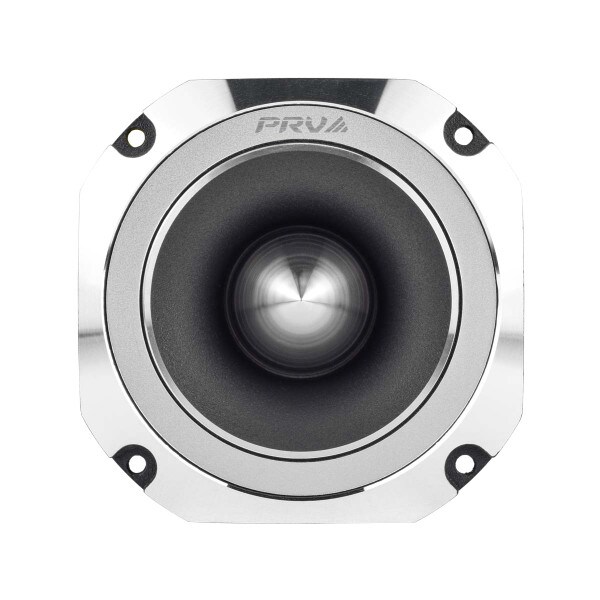

    The 4-inch square high-compression PRO bullet tweeter features flat sides, allowing for close side-by-side mounting. With a high-frequency response reaching up to 20,000 Hz and a sensitivity of 105 dB at 1W/1m, the TW700Ti-4 SLIM is perfectly suited for custom door speaker systems.

    This high-frequency bullet tweeter adds brilliance and articulation to any professional loudspeaker setup, enhancing clarity and detail in your audio.

Specifications

  • Nominal impedance: 4 Ohm
  • Continuous Program Power (RMS): 210 Watts
  • Program Power: 200 Watts
  • Sensitivity 2.83V at 1m: 105 dB
  • Recommended Hi Pass Crossover**: 5000 Hz**
    **For Full Power Handling  **12db Per Octave Crossover
  • Frequency Response at -10dB: 4,500 – 20,000 Hz
  • Voice Coil Diameter: 1.5” (38 mm)
  • Voice Coil Wire: CCAW
  • Voice Coil Former Material: Kapton
  • Diaphragm Material: Aluminum
  • Flux Density: 1.50 T
  • Magnet Material: Ferrite

*Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range.
**Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to provide a clean signal without clipping or saturation.
***Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.

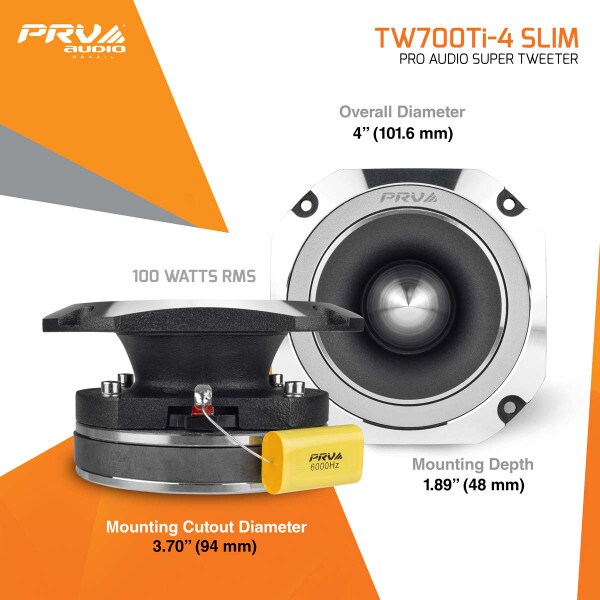

  • Overall Depth: 2.28” (57.9 mm)
  • Mounting Depth: 1.89” (48.0 mm)
  • Overall Width: 4.0” (101.6 mm)
  • Overall Height: 4.0” (101.6 mm)
  • Cutout Diameter: 3.70” (94 mm) + Terminals
  • Net Weight: 2.19 lbs (0.99 kg)

Product Details

BrandPRV Audio
ModelTW700Ti-4 SLIM
Part Number294-3446
UPC810075521054
Unit of MeasurePairs
Weight4.45

Product Specifications

Power Handling (RMS)100 Watts
Impedance4Ω
