CLEARANCE PRV Audio TW1000PH Bullet Super Tweeter 8 Ohm

PRV AudioPart # 294-2883

Model: TW1000PH

Read 6 Reviews | 2 Questions, 4 Answers or

Thanks to the phenolic diaphragm, PRV Audio's TW1000Ph tweeter can deliver the extreme SPL levels you expect from a bullet tweeter but with a natural sound. With an aluminum heatsink on the back plate the TW1000Ph can handle an impressive 100 watts RMS for extended periods of time.

Key Features

High power handling and efficiency for use in extreme SPL applications
Kapton former with copper coil and external heatsink improve power handling
Phenolic diaphragm to produce a natural high frequency response
40° x 40° dispersion for controlled output and long throw

See all items in Horn Loaded Tweeters & Midranges

Get Notified When Available

We'll send you an email when PRV Audio TW1000PH Bullet Super Tweeter 8 Ohm is back in stock or available for preorder.

60 Day No Hassle Return Policy

Overview

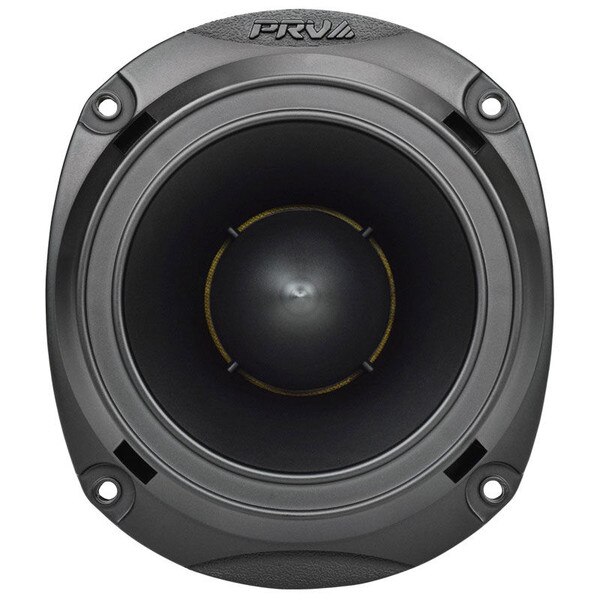

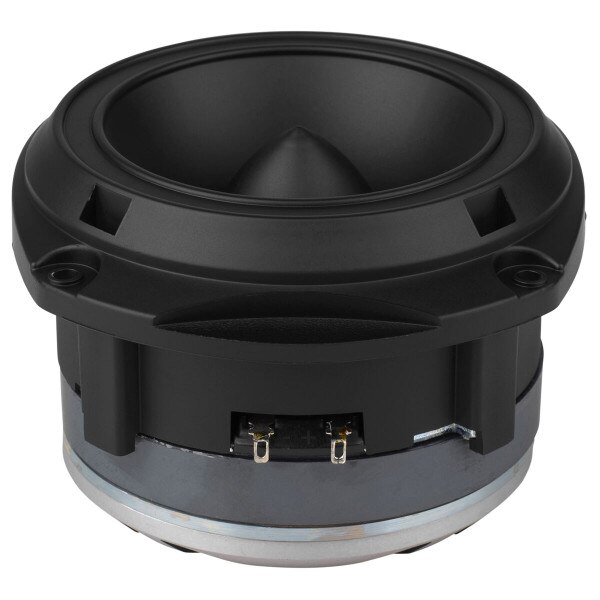

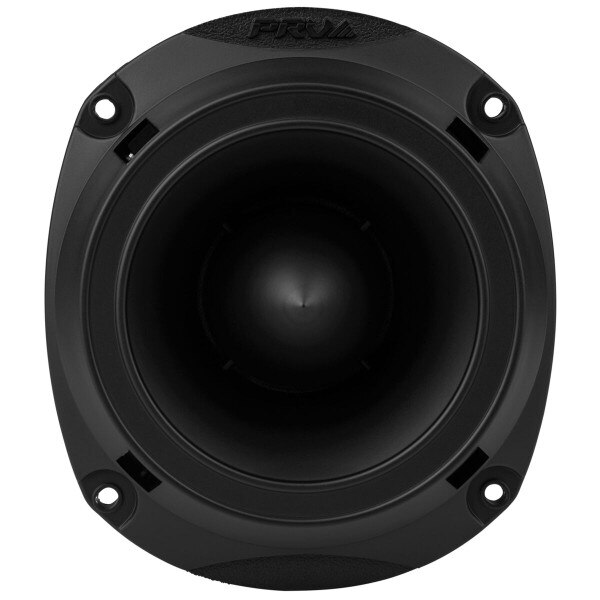

PRV Audio TW1000PH Bullet Super Tweeter 8 Ohm

The PRV TW1000Ph delivers the combination of smooth detailed sound and long lasting quality. The durable phenolic diaphragm is supported inside and out to reduce the amount of moving mass, extending the high frequency response to a more natural sound than a metallic diaphragm.

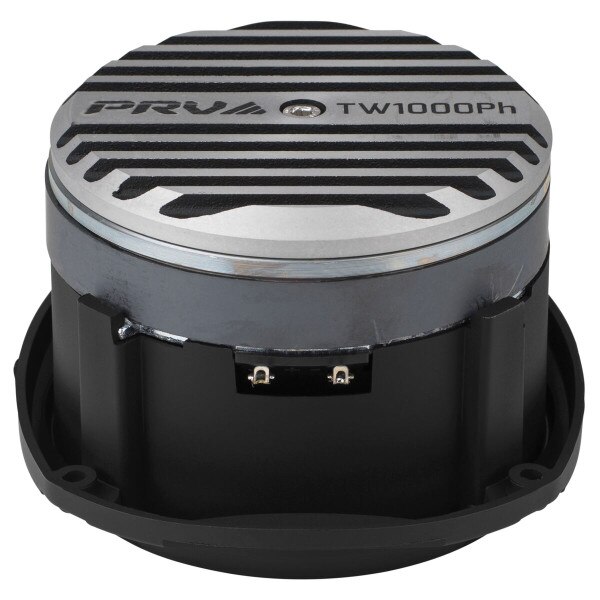

The bullet-shaped horn design on the TW1000Ph allows it to deliver a dynamic high frequency output and longer throw with 40° x 40° dispersion. The use of a 1.83" copper voice coil with a unique aluminum back plate heatsink design improves the power handling and durability for any large professional environment application. Whether in a high output car audio system or a large club system, the TW1000Ph will add the high frequency output you need.

Specifications: • Power handling: 100 watts RMS with recommended crossover of 5,000 Hz, 12 dB/octave • Minimum recommended crossover point: 5,000 Hz • VCdia: 1.83" • Impedance: 8 ohms • Frequency response: 4,000-20,000 Hz • SPL: 106 dB 1W/1m • Dimensions (H x W x D): 4.58" x 5.27" x 3.1".

Product Details
Brand	PRV Audio
Model	TW1000PH
Part Number	294-2883
UPC	602938021715
Unit of Measure	Each
Weight	2.85

Product Specifications
Diaphragm Material	Phenolic
Power Handling (RMS)	100 Watts
Impedance	8Ω

Specifications

Q&A

Reviews

Manuals & Resources

Manuals & Resources

PRV Audio TW1000PH Specifications (PDF File) PRV Audio Manufacturer Warranty (PDF File)
