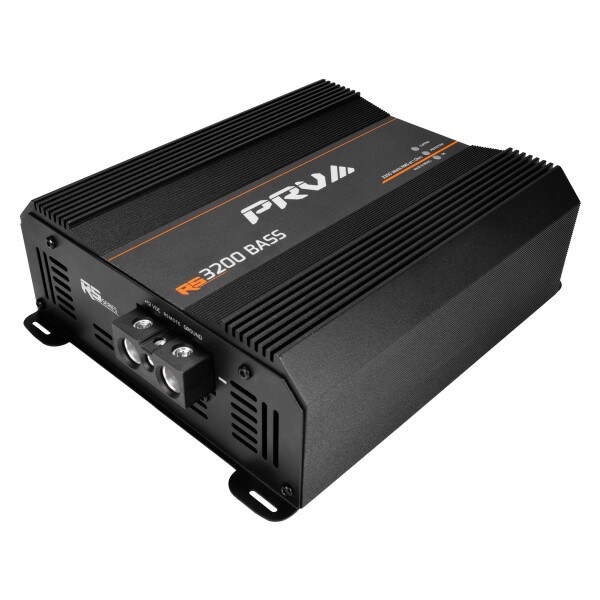

  • PRV Audio RS3200 BASS 1 OHM RS Series 1-Channel Monoblock Amplifier 3200W

NEW PRV Audio RS3200 BASS 1 OHM RS Series 1-Channel Monoblock Amplifier 3200W

PRV AudioPart # 294-3591
Model: RS3200 BASS 1 OHM

The PRV Audio RS3200 BASS 1Ω is a 1-channel monoblock amplifier made for serious low-end performance. It delivers strong power to subwoofers, with built-in controls for bass shaping and filtering. Its compact size makes it great for installations where space is limited.

Key Features

  • 3200 Watts RMS at 1Ω, 2000 Watts RMS at 2Ω
  • Frequency response from 5-200 Hz for deep bass reach
  • Bass boost control up to +12 dB, adjustable 35-50 Hz for tuning lowest tones
  • Subsonic filter and low-pass filter built in for cleaner low-bass output
  • Heavy duty heatsink and cooling fan help maintain performance under load
  • Tiffany RCA inputs and high-level speaker inputs
  • Small footprint for easier placement in tight spaces
NEW $299.91
+ FREE SHIPPING
MSRP: $374.89
Save $74.98 (20%)
Bulk Pricing
In Stock
Get Notified When Available

We'll send you an email when PRV Audio RS3200 BASS 1 OHM RS Series 1-Channel Monoblock Amplifier 3200W is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

PRV Audio RS3200 BASS 1 OHM RS Series 1-Channel Monoblock Amplifier 3200W

PRV Audio RS3200 BASS 1 OHM RS Series 1-Channel Monoblock Amplifier 3200W

The RS Series was created for SPL competitors and anyone who wants more impact from their daily system. This Class-D monoblock amplifier uses an oversized power supply with true copper for powerful bass response.

Engineered specifically for deep bass, these amplifiers deliver a response unlike full range models. With a reinforced power supply on a heavy-duty PCB board, this amplifier provides steady power and next-level performance.

  • Designed for maximum efficiency, this amplifier delivers strong power while reducing strain on your electrical system, letting you enjoy high output performance without quickly draining your battery
  • Smart Bass Amplifier, monoblock 1 channel rated at 3200 watts at 1 Ohm TRUE RMS certified, with intelligent 4-way protection including high voltage, low voltage, shortage, and current protection, plus Clip LED indicators on the top panel

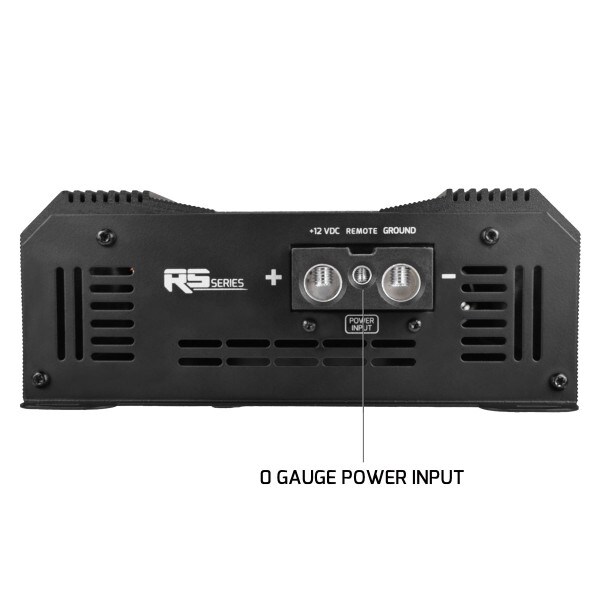

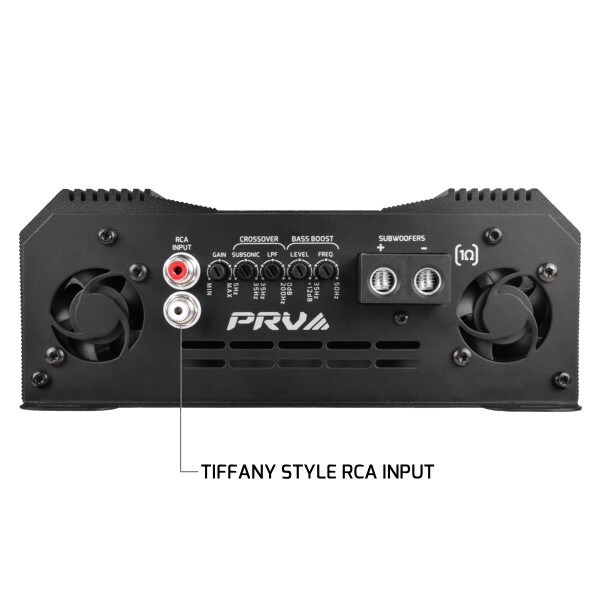

  • Built with premium components such as vibration-resistant Tiffany RCA inputs for clean audio connections, along with heavy duty 0 gauge power inputs and 4 gauge speaker outputs for high current flow
  • High Capacitance Reserve, featuring a large capacitor bank that stores additional energy for steady bass, capable of delivering over 3200 watts of power, with an operating voltage range of 9 to 16 volts

Designed mainly for subwoofer applications, the RS3200 includes a built-in BASS BOOST control adjustable from 0 to +12 dB, along with a variable frequency knob from 35 to 50 Hz to fine-tune the lowest tones in your system.

It delivers 3200 watts RMS at 1 Ohm, optimized for bass frequencies between 5 and 200 Hz, with flexible control using the built-in SUBSONIC and LPF filters.

Built for bass, this amplifier delivers deeper, louder, and more powerful low-end than ever.

Equipped with a compact heavy-duty heatsink and a built-in cooling fan, it stays cool even during the most demanding playlists.

Its small footprint and rugged heatsink make it simple to install anywhere in a vehicle. Measuring just 10.5″ wide, 8.5″ long, and 3.25″ tall, and weighing only 8.2 lbs., it provides excellent performance with an outstanding weight-to-power ratio.

Popular Installation configurations with this amplifier:

Configuration for DUAL 4 Ohm subwoofers, its high power output channel allow you to install 2x subs in parallel at 1 Ohm, giving up to 1600 watts to the sub.

Before Installing:

You must follow the instructions for the product’s installation to guarantee optimal performance. If you have any questions, get in touch with us. Before using the amplifier, always follow these guidelines:

  • Make sure the amplifier is switched off before adding or removing any connections. This prevents possible damage to equipment
  • Keep all cables as far away as possible from the ignition cables, electronic injection modules and starter switch since they may cause noise interference; Minimum recommended installation distance between amplifier is 1.25”
  • Always use OFC 0 AWG Copper wire for power and ground and minimum of 14 AWG speaker wire and good quality connectors. Copper-clad aluminum wire (CCAW) must not be used. This guarantees reliability and performance
  • To avoid damaging the cables, make sure that they do not touch sharp metal edges. Important: For this amp use a 200A fuse 12 inches away from the battery as a safety precaution

The power rated data are based on equipment from the PRV Audio Group laboratory.

Frequency reference of 40Hz with THD+N to ≤1 % in impedances referring to the indicated in each measurement. The electronic components and the manufacturing process can present manufacturing variations, thus leading to a variation in the measurements made. This amplifier is designed to perform on music applications ( with speakers ), any load test ( resistant load ) is not recommended.

Specifications

  • Impedance: 1 Ohm
  • Channels: 1 Channel
  • Rated RMS Power at 14.0 V at 1 Ohm: 3200 Watts
  • Rated RMS Power at 14.0 V at 2 Ohm: 2000 Watts
  • Average Efficiency: 80%
  • Operating Voltage: 9 to 16 Volts
  • Musical Current Draw: 180 A
  • Minimum Power Wire Input: (OFC) 0 Gauge wires
  • Protection Fuse or Circuit Breaker: 200 Amps

  • Minimum Speaker Wire Output: 14 Gauge
  • Frequency Response(-3dB): 5 – 200 Hz
  • Min. Input Sensitivity for Max. Output: 200 mV
  • Signal Input: 1 Pair RCA
  • Signal to Noise: >90 dB
  • Protection System: Shortage on Output
  • Heat Sink Type: Heavy Duty Cast Aluminum
  • Dimensions ( W x D x H ): 10.50” x 8.50” x 3.25”
  • Weight: 8.2 lbs.

Product Details

BrandPRV Audio
ModelRS3200 BASS 1 OHM
Part Number294-3591
UPC810075526509
Unit of MeasureEach
Weight9

Product Specifications

Output Channels1
RMS Power Output (4 Ohms)3200
