  • PRV Audio MT6CX580-NDY-4 Moto Series 6.5" Coaxial Loudspeaker

PRV Audio MT6CX580-NDY-4 Moto Series 6.5" Coaxial Loudspeaker

PRV AudioPart # 267-8036
Model: MT6CX580-NDY-4

Introducing the PRV MOTO Series, an innovative line of high-performance speakers engineered for the rigors of motorsports. Built with only the best components that are made to weather the great outdoors, the MOTO Series is here to upgrade your motorcycle, boat, ATV, side-by-side, and more. The MT6CX580-NDY-4 is the MOTO Series' coaxial loudspeaker that raises a the bar for vocal reproduction in the great outdoors.

Key Features

  • Water-resistant to endure the rain or the tide
  • With a frequency response of 100 to 20k Hz, no additional tweeter is required
  • The screw-on horn design makes servicing the speaker a breeze
  • The 70° coverage from the horn waveguide offers wide coverage
  • A large neodymium magnet is both lightweight but offers advanced heat dissipation
  • The special composition of the spider eliminates distortion from high excursion
  • Silver tinsel lead wires offer dependable and dynamic sound at high power
Your Price: $257.91
+ FREE SHIPPING
MSRP: $322.39
Save $64.48 (20%)
Bulk Pricing
In Stock
Get Notified When Available

We'll send you an email when PRV Audio MT6CX580-NDY-4 Moto Series 6.5" Coaxial Loudspeaker is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

PRV Audio MT6CX580-NDY-4 Moto Series 6.5" Coaxial Loudspeaker

PRV Audio proudly presents the MT6CX580-NDY-4 Coaxial Speaker, part of our MOTO Series (MT), a high-performance PRO audio line built for motorsports installations.

This coaxial speaker installs easily and requires no additional tweeter. Built from premium materials and components, it withstands weather conditions and allows for a straightforward bolt-on upgrade that significantly improves sound quality over factory speakers.

This 2-way coaxial loudspeaker sets a new standard for vocal reproduction in outdoor settings, making it an excellent choice for upgrading the audio system in boats, UTVs, 4-wheelers, Slingshots, or motorcycles.

  • Waterproof treated paper cone and surround ensure durability in harsh environments while delivering true PRO audio performance
  • Full-range sound with a 2-way coaxial design, combining a low-frequency speaker with a 1″ titanium driver, capable of responding from 100 Hz to 20,000 Hz
  • High-output speaker for ATVs, Slingshots, and motorcycles, easily fitting into most stock mounting locations
  • Shared neodymium motor design for both low and high frequencies, minimizing phase issues and offering a compact profile without compromising performance
  • 6.5″ high-performance coaxial speaker engineered for high output, featuring separate midbass and horn drivers for dual amplifier setups.

This coaxial speaker includes a built-in horn driver with a D280Ti titanium diaphragm, mounted on a 70° conical wide-coverage horn waveguide.

The horn's screw-on design allows for easy servicing, and it's constructed from durable PM-4 polycarbonate, a high wear-resistant material for long-lasting thread durability.

Capable of reproducing high frequencies with ease, it perfectly complements the low-frequency speaker for seamless phasing across a broad range.

This low-frequency speaker keeps pace with its high-frequency drivers due to its large voice coil, extreme 95dB sensitivity, and powerful neodymium magnets for efficient heat dissipation.

With an output of up to 130 dB, it pairs effortlessly with its high-efficiency horn tweeter for a balanced performance.

The specially designed spider prevents distortion at high excursion, while the silver tinsel lead wire handles high current, ensuring exceptional reliability and dynamic sound quality.


This 6.5″ coaxial horn speaker delivers exceptional high-output performance with a separate midbass driver and horn tweeter, allowing use with two amplifiers for optimal sound distribution.

The midbass speaker is tuned for rich, deep low-frequency reproduction, while the horn driver handles crisp highs, ensuring each frequency band performs efficiently and without distortion. This separation produces a dynamic, balanced sound ideal for demanding setups.

With its remarkable output levels, this coaxial stands out as one of the loudest speakers in its class—built to impress in compact installations that demand full-range power.

How to Install them:

This Coaxial speaker will need 500 Watts RMS per speaker for its low frequency and 80 Watts RMS per driver for its high frequency with recommended HPF using PRV Digital Signal Processor DSP

  • 95 Hz at 18 dB per octave filter Crossover / BT18 for low frequency component
  • 1400 Hz at 18 dB per octave filter Crossover / BT18 for high frequency component

Recommended LPF for speaker is 6,000 Hz at 18 dB per octave filter Crossover / BT18 or you may set it lower to 2000hz depending on the other components in your system.

One Amplifier
2 Speakers Setup – 1x MDX2000.2 at 2 Ohm, 2 speakers in parallel into CH1 and 2 Drivers in parallel into CH2

One Amplifier
4 Speakers Setup – 1x MDX2000.4 2 Ohm, 2 speakers in parallel per CH1 and CH2 / 2 Drivers in parallel per CH3 and CH4

Reach the highest output level by following these installation recommendations for your coaxial with two amplifiers application!

Two Amplifiers 4 Speakers Setup
Speaker Amp 1x MDX2000.2 2 Ohm 2 speakers in parallel on each channel, giving each speaker up to 500 Watts each
Driver Amp 1x QS400.4 2 Ohm 2 drivers in parallel per bridged channel, giving each driver up to 100 Watts each

Specifications

Nominal and Throat Diameter
Low Freq. 6.5″ (152 mm)
High Freq. 1″ (25.4 mm)
Nominal impedance 4 Ohm
8 Ohm
Nominal Power Handling* 300 Watt
40 Watt
Continuous Program Power (RMS)**500 Watt
80 Watt
Max Peak Power***
1200 Watt
160 Watt
Sensitivity 2.00V at 1m
95 dB
106 dB
Recommended Hi Pass Crossover
*For Full Power Handling
105 Hz*
*12db Per Octave Crossover
1800 Hz*
*12db Per Octave Crossover
Frequency Response
100 – 10 kHz
1.3 – 20 kHz
Voice Coil Diameter
2″ (51 mm)
1.75″ (44 mm)
Voice Coil Wire
CCAW
CCAW
Voice Coil Winding Depth
11.0 mm
N/A
Former Material
Kapton
Kapton
Magnetic Gap Depth
8.0 mm
N/A
Frame Material
Aluminum
Titanium

*Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range.
**Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to provide a clean signal without clipping or saturation.
***Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.

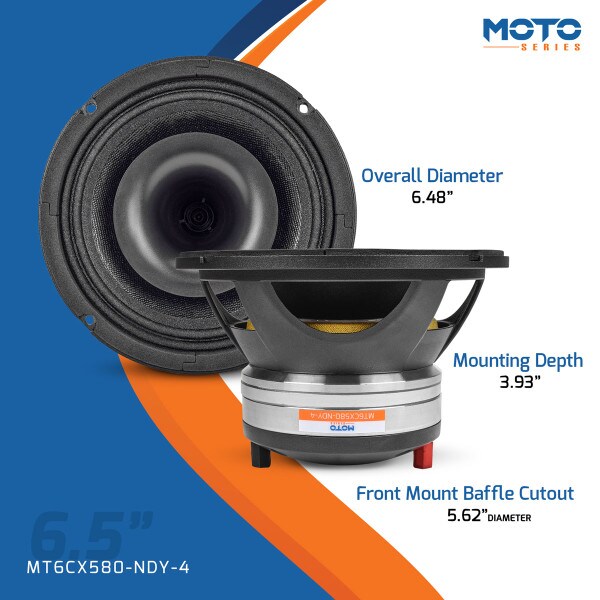

  • Overall Diameter: 6.48″ (164.5 mm)
  • Front Mount Baffle Cutout 5.62″ (143 mm)
  • Mounting Depth: 3.93″ (100 mm)
  • Overall Depth: 4.37″ (111 mm)
  • Net Weight: 4.18 Lbs (1.9 kg)

Product Details

BrandPRV Audio
ModelMT6CX580-NDY-4
Part Number267-8036
UPC810075523379
Unit of MeasureEach
Weight4.62

Product Specifications

Nominal Diameter6-1/2"
Power Handling (RMS)500 Watts
Power Handling (MAX)1200 Watts
Impedance4Ω
Frequency Response100 To 10,000Hz
Sensitivity95dB 2.83V/1m
Voice Coil Diameter2"

Thiele-Small Parameters

Resonant Frequency (Fs)105.9Hz
DC Resistance (Re)3Ω
Voice Coil Inductance (Le)0.178mH
Mechanical Q (Qms)8.54
Electromagnetic Q (Qes)0.43
Total Q (Qts)0.41
Compliance Equivalent Volume (Vas)0.2ft³
Mechanical Compliance of Suspension (Cms)0.202mm/N
BL Product (BL)7.16T·m
Diaphragm Mass Inc. Airload (Mms)11.19g
Maximum Linear Excursion (Xmax)350mm
Surface Area of Cone (Sd)143cm²

Materials of Construction

Cone MaterialTreated Paper
Voice Coil Wire MaterialCCA
Voice Coil FormerKapton® / Polyimide
Basket / Frame MaterialCast Aluminum
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter6.48"
Baffle Cutout Diameter5.62"
Depth4.37"
# Mounting Holes4
