PRV Audio MT10W1200-NDY-4 Moto Series 10" Pro Low Frequency Woofer 4 Ohm

PRV AudioPart # 267-8042
Model: MT10W1200-NDY-4

Introducing the PRV MOTO Series, an innovative line of high-performance speakers engineered for the rigors of motorsports. Built with only the best components that are made to weather the great outdoors, the MOTO Series is here to upgrade your motorcycle, boat, ATV, side-by-side, and more. The MT10W1200-NDY-4 is engineered specially for the the tough environment of the open road, making it an excellent choice for a motorcycle saddlebag.

Key Features

  • A great fit for a saddlebag with a size of only about a cubic foot
  • Weather-resistant to survive getting caught in the rain
  • A vented neodymium motor will keep the voice coil cool
  • The 1.65" peak-to-peak excursion gives this woofer great efficiency
  • A powerful neodymium magnet structure creates distortion-canceling fixtures
  • 97 dB sensitivity means a potential for a high output
  • Designed specifically to take the abuse of a bike sound competition
Your Price: $329.91
+ FREE SHIPPING
MSRP: $412.39
Save $82.48 (20%)
Bulk Pricing
In Stock
Get Notified When Available

We'll send you an email when PRV Audio MT10W1200-NDY-4 Moto Series 10" Pro Low Frequency Woofer 4 Ohm is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

PRV Audio MT10W1200-NDY-4 Moto Series 10" Pro Low Frequency Woofer 4 Ohm

The MOTO Series MT10W1200-NDY-4 is engineered to deliver powerful low frequency midbass response in custom motorcycle saddlebags, built to perform in demanding road conditions.

PRV Audio proudly introduces the MOTO Series (MT), a high-performance PRO audio line crafted for motorsports installations. This series features the latest materials and components to withstand harsh weather while delivering premium sound quality.

  • Optimized for compact enclosures, perfect for motorcycle saddlebags
  • Delivers high acoustical output with 1,200 watts RMS power

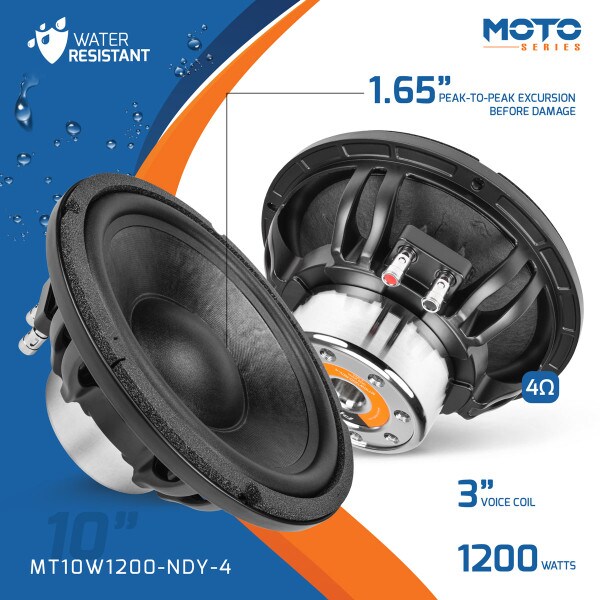

  • Rubber surround supports a generous 1.65″ peak-to-peak excursion
  • Strong neodymium magnet structure with distortion-canceling features
  • Fast transient response with deep lows and dynamic midbass
  • Weather-resistant paper cone and dust cap deliver true PRO audio midbass performance

The MT10W1200-NDY-4 sets a new performance standard by combining durability, efficiency, and maximum cone displacement in a stylish design. This midbass speaker delivers deep low frequency response with impressive power and authority.

The custom-tooled surround enables long throw and maximizes cone surface area, achieving superior fidelity and high efficiency.

Crafted with a special composite non-pressed paper cone, this speaker minimizes break-up and is treated for water resistance, providing a smooth frequency response and low moving mass. This design boosts speaker efficiency and allows for a robust 1.65″ peak-to-peak excursion without damage.

Extensive motor venting cools the voice coil, allowing for high power handling with minimal power compression. The large 3″ voice coil supports 1,200 watts of RMS power, backed by an advanced cooling system built into the motor.

Its powerful, optimized neodymium motor includes venting for enhanced voice coil cooling, while the neodymium magnet reduces speaker weight compared to a ferrite motor. This compact design fits perfectly and sounds exceptional in saddlebags with approximately 1 cubic foot of space.

Built to withstand the rigors of bike sound competitions, its 3″ voice coil is wound inside-outside on a fiberglass former, with an impressive 18 mm winding length for extended Xmax and reduced distortion.

With a high sensitivity rating of 97 dB 1W/1M, this speaker is capable of producing substantial output!

Specifications

  • Nominal Diameter: 10″ (254 mm)
  • Nominal impedance:* 4 Ohm
  • Nominal Power Handling:** 600 Watts
  • Continuous Program Power (RMS): 1200 Watts
  • Max Peak Power:*** 2400 Watts
  • Sensitivity 2.00V at 1m: 97.0 dB
  • Recommended Hi Pass Crossover:* 65 Hz*
    *For Full Power Handling *12db Per Octave Crossover
  • Frequency Response: 40 – 4,000 Hz
  • Voice Coil Diameter: 3″ (76 mm)
  • Voice Coil Wire: CCAW
  • Voice Coil Winding Depth: 18.0 mm
  • Former Material: Glass Fiber
  • Magnetic Gap Depth: 10.0 mm
  • Frame Material: Die Cast Aluminum

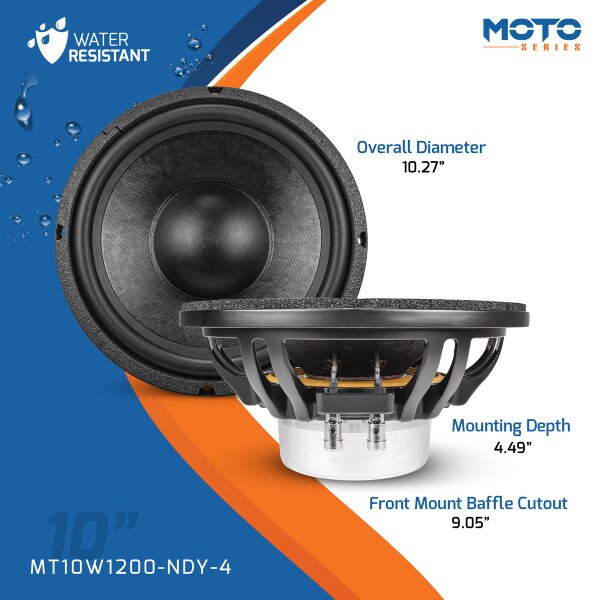

  • Overall Diameter: 10.27” (261 mm)
  • Front Mount Baffle Cutout: 9.05” (230 mm)
  • Mounting Depth: 4.49” (114 mm)
  • Overall Depth: 5.00” (127 mm)
  • Net Weight: 8.38 Lbs (3.8 kg)

    • *Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range.
    **Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to provide a clean signal without clipping or saturation.
    ***Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.

Product Details

BrandPRV Audio
ModelMT10W1200-NDY-4
Part Number267-8042
UPC810075521405
Unit of MeasureEach
Weight8.38

Product Specifications

Nominal Diameter10"
Power Handling (RMS)600 Watts
Power Handling (MAX)1200 Watts
Impedance4Ω
Frequency Response40 To 4,000Hz
Sensitivity97dB 2.83V/1m
Voice Coil Diameter3"

Thiele-Small Parameters

Resonant Frequency (Fs)46.9Hz
DC Resistance (Re)3Ω
Voice Coil Inductance (Le)0.376mH
Mechanical Q (Qms)7.94
Electromagnetic Q (Qes)0.31
Total Q (Qts)0.3
Compliance Equivalent Volume (Vas)1.46ft³
Mechanical Compliance of Suspension (Cms)0.212mm/N
BL Product (BL)12.29T·m
Diaphragm Mass Inc. Airload (Mms)54.1g
Maximum Linear Excursion (Xmax)6.5mm
Surface Area of Cone (Sd)373cm²

Materials of Construction

Cone MaterialTreated Paper
Surround MaterialPaper
Voice Coil Wire MaterialCCA
Voice Coil FormerFiberglass
Basket / Frame MaterialCast Aluminum
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter10.27"
Baffle Cutout Diameter9.05"
Depth5"
# Mounting Holes4
