  • PRV Audio D280Ti-S 1" Titanium Horn Driver 8 Ohm 1-3/8"-18 TPI

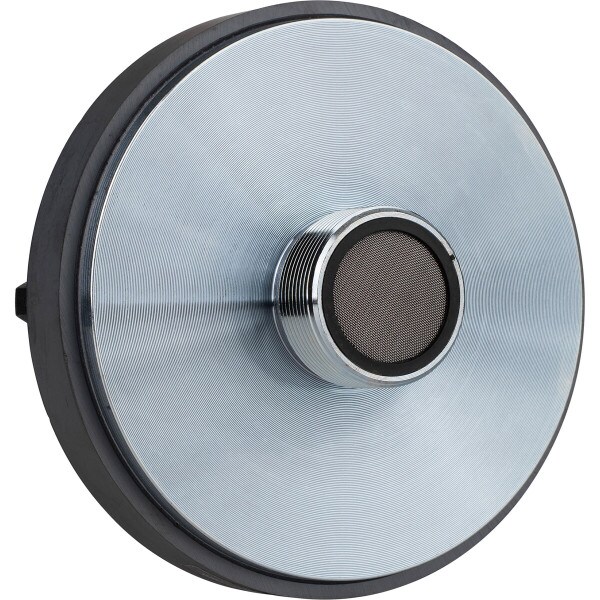

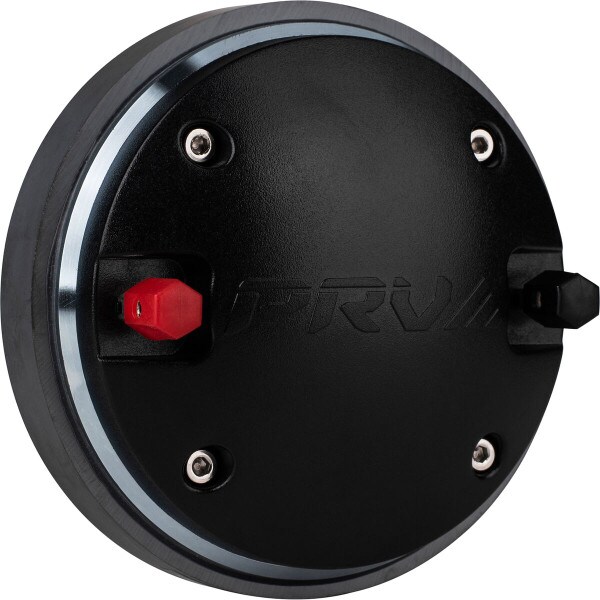

PRV Audio D280Ti-S 1" Titanium Horn Driver 8 Ohm 1-3/8"-18 TPI

PRV AudioPart # 294-2827
Model: D280Ti-S

Upgrade your PA speaker cabinets today using PRV Audio's amazing D280-Ti compression driver. High output and smooth frequency response allows you to use this horn driver in almost any high output audio application: pro, home, or car. Standard 1-3/8"-18 TPI threading.

Key Features

  • 1-inch throat diameter
  • Titanium diaphragm for durability and precise sound reproduction
  • 80 watts RMS and 160 watts program power for robust performance
  • High sensitivity of 109 dB at 2.83V/1m for efficient sound output
  • Frequency response range of 1,300 Hz to 20,000 Hz for wide coverage
  • Screw-on type connection for easy installation and replacement
  • Lightweight design for seamless integration
Your Price: $39.91
MSRP: $49.89
Save $9.98 (20%)
Bulk Pricing
In Stock
Get Notified When Available

We'll send you an email when PRV Audio D280Ti-S 1" Titanium Horn Driver 8 Ohm 1-3/8"-18 TPI is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

PRV Audio D280Ti-S 1" Titanium Horn Driver 8 Ohm 1-3/8"-18 TPI

PRV Audio D280Ti-S 1" Exit Pro Audio Titanium Compression Driver

    The D280Ti-S delivers superior sound quality with its titanium diaphragm, offering both durability and precision. With a power handling capacity of 80 watts RMS and a sensitivity of 109 dB, it provides robust output while maintaining low distortion.

    Designed for versatility, this compression driver features a 1-inch throat diameter that fits most standard horn designs, while its screw-on type connection simplifies installation. The lightweight construction makes it easy to integrate into various audio systems, whether for stage monitors, PA setups, or studio use. For added convenience, the diaphragm is replaceable, promising long-lasting performance and reliability.

Specifications

  • Exit Throat Diameter: 1” (25.4mm)
  • Nominal impedance: 8 Ohms
  • Rated AES Power Handling (RMS): 80 Watts
  • Program Power: 160 Watts
  • Sensitivity 2.83V at 1m: 109 dB
  • Recommended Hi Pass Crossover**: 1800 Hz**
    **For Full Power Handling **12db Per Octave Crossover
  • Frequency Response at -10dB: 1,300 – 20,000 Hz
  • Voice Coil Diameter: 1.75” (44.4 mm)
  • Voice Coil Wire: CCAW
  • Voice Coil Former Material: Kapton
  • Diaphragm Material: Titanium
  • Flux Density: 1.65 T
  • Magnet Material: Ferrite

*Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range.
**Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to provide a clean signal without clipping or saturation.
***Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.

  • Overall Diameter: 4.52” (115 mm)
  • Overall Depth: 2.56” (65 mm)
  • Mounting Thread: 1 3/8” 18 TPI
  • Net Weight: 3.31 lbs. (1.5 kg)

Product Details

BrandPRV Audio
ModelD280Ti-S
Part Number294-2827
UPC799928733854
Unit of MeasureEach
Weight3.5

Product Specifications

Diaphragm MaterialTitanium
Exit Diameter1"
Mounting Type1-3/8"-18 TPI
Power Handling (RMS)80 Watts
Impedance8Ω
