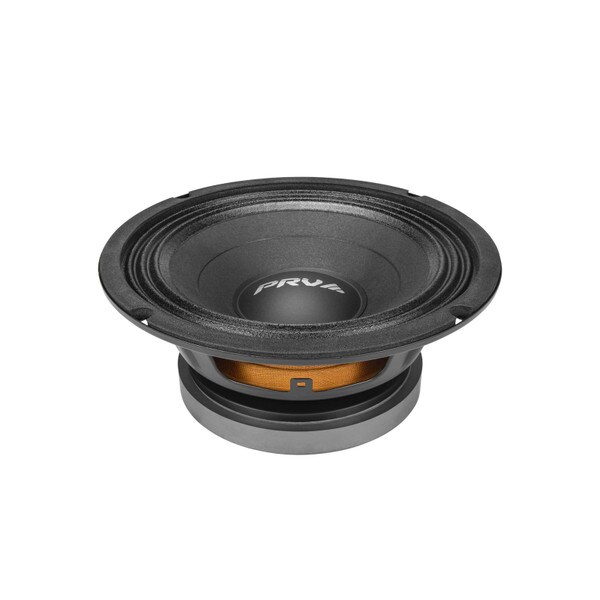

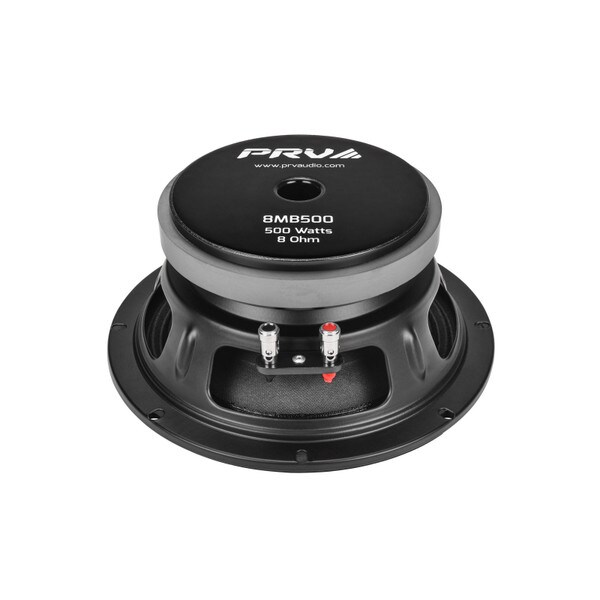

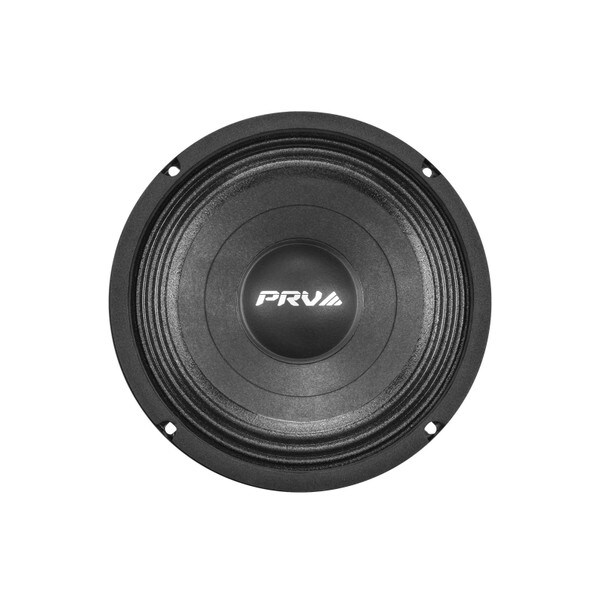

PRV Audio 8MB500 - 8" Midbass Woofer

PRV AudioPart # 294-3534
Model: 8MB500

Unleash the full potential of your audio system with the PRV Audio 8MB500, an 8-inch midbass woofer designed to deliver powerful, precise sound. Perfect for car audio enthusiasts and professional sound engineers alike, this woofer combines high power handling with exceptional clarity, ensuring your music is reproduced with remarkable depth and detail.

Key Features

  • 500W peak power handling for robust audio performance
  • 8-inch cone for impactful midbass and clear midrange frequencies
  • 8-ohm impedance for versatile system compatibility
  • Wide frequency response from 60Hz to 5kHz for detailed sound reproduction
  • High sensitivity of 97 dB for efficient and loud output
Your Price: $39.91
MSRP: $49.89
Save $9.98 (20%)
Bulk Pricing
Back-Ordered
Get Notified When Available

We'll send you an email when PRV Audio 8MB500 - 8" Midbass Woofer is back in stock or available for preorder.

Expected back in stock any day
Alert Me When Available
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

PRV Audio 8MB500 - 8" Midbass Woofer

The PRV Audio 8MB500 midbass woofer is engineered for those who demand the best in audio performance. With a peak power handling of 500 watts, this woofer delivers dynamic and powerful sound, making it ideal for a variety of audio applications. Whether you're enhancing your car audio system or setting up a professional sound environment, the 8MB500 ensures your midbass and midrange frequencies are reproduced with accuracy and impact.

Featuring a robust 8-inch cone, the 8MB500 excels at producing rich and punchy midbass tones, while also handling midrange frequencies with precision. Its 8-ohm impedance ensures broad compatibility with a wide range of amplifiers and audio systems, providing flexibility in your setup. The woofer's wide frequency response range of 60Hz to 5kHz captures the essential details of your music, from deep lows to nuanced mids.

With a high sensitivity rating of 97 dB, the 8MB500 efficiently converts power into sound, delivering loud and clear audio output without requiring excessive power from your amplifier. This efficiency ensures that your audio system operates at peak performance, providing an immersive and powerful listening experience.

Product Details

BrandPRV Audio
Model8MB500
Part Number294-3534
UPC810075524611
Unit of MeasureEach
Weight27.15

Product Specifications

Nominal Diameter8"
Power Handling (RMS)500 Watts
Power Handling (MAX)1000 Watts
Impedance8Ω
Frequency Response75 to 7,500Hz
Sensitivity95dB 2.83V/1m
Voice Coil Diameter2"

Thiele-Small Parameters

Resonant Frequency (Fs)69.4Hz
DC Resistance (Re)6.1Ω
Voice Coil Inductance (Le)0.29mH
Mechanical Q (Qms)21.86
Electromagnetic Q (Qes)0.78
Total Q (Qts)0.75
Compliance Equivalent Volume (Vas)0.684ft³
Mechanical Compliance of Suspension (Cms)0.24mm/N
BL Product (BL)8.66T·m
Diaphragm Mass Inc. Airload (Mms)21.91g
Maximum Linear Excursion (Xmax)4.5mm
Surface Area of Cone (Sd)241cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialCloth
Voice Coil Wire MaterialCCA
Voice Coil FormerKapton® / Polyimide
Basket / Frame MaterialSteel
Magnet MaterialFerrite

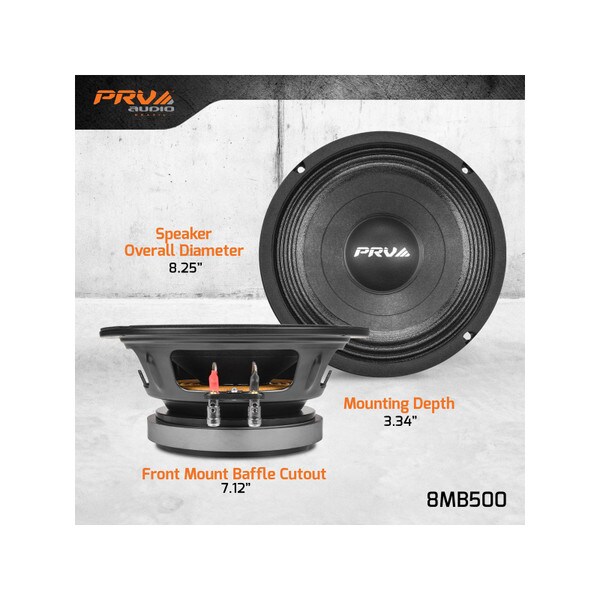

Mounting Information

Overall Outside Diameter8.25"
Baffle Cutout Diameter7.17"
Depth3.35"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume1.264ft³
Sealed F379.97Hz
Vented Volume2.348ft³
Vented F338.89Hz
