  • PRV Audio 6MR200A Alto Series 6.5" Midrange Driver 8 Ohm

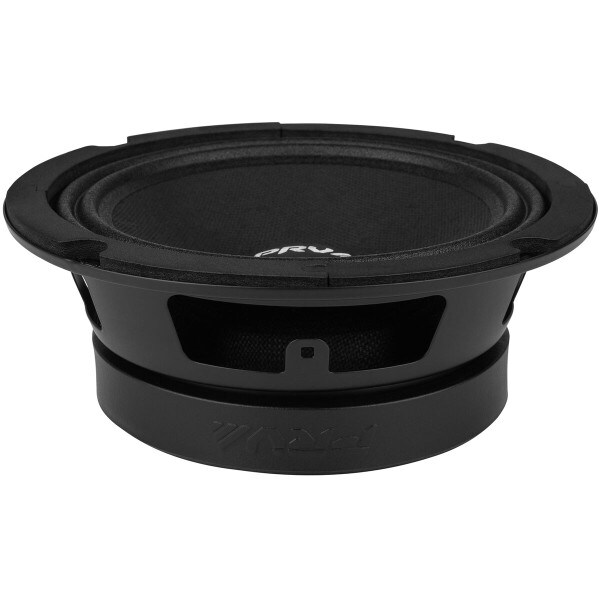

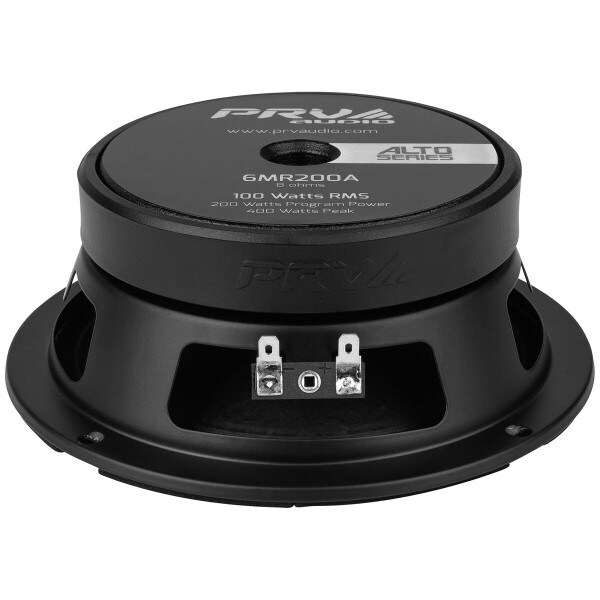

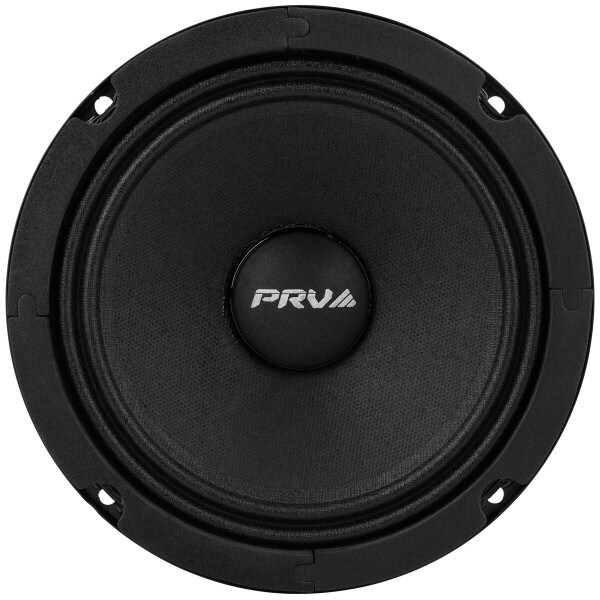

PRV Audio 6MR200A Alto Series 6.5" Midrange Driver 8 Ohm

PRV AudioPart # 294-2984
Model: 6MR200A

The PRV Audio 6MR200A is a 6.5" shallow-mount midrange speaker engineered for high-output applications where space is limited. Delivering 200W program power and a sensitivity of 94 dB, it offers clear, dynamic sound reproduction across a wide frequency range. Its compact design and durable construction make it suitable for car audio systems, professional sound reinforcement, and musical instrument amplification.

Key Features

  • 1.5" copper voice coil on Kapton former allows high power handling
  • Kevlar-loaded paper cone with cloth sealed surround offers durability and clarity
  • Vented pole piece reduces power compression for consistent performance
  • Shallow 2.24" mounting depth allows installation in tight spaces
  • Frequency response of 155–11,000 Hz covers critical midrange frequencies​
Your Price: $24.91
MSRP: $31.14
Save $6.23 (20%)
Bulk Pricing
18 In Stock
Get Notified When Available

We'll send you an email when PRV Audio 6MR200A Alto Series 6.5" Midrange Driver 8 Ohm is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

PRV Audio 6MR200A Alto Series 6.5" Midrange Driver 8 Ohm

PRV Audio 6MR200A Alto Series 6.5" Midrange Driver 8 Ohm

PRV Audio’s ALTO Series is thoughtfully designed and voiced to deliver natural, smooth sound with dynamic character. A special composite cone is used to achieve superior fidelity by smoothing the frequency response and maintaining a low moving mass, which boosts efficiency.

  • 6.5″ PRO audio Midrange driver designed for low frequency reproduction with a shallow profile
  • 200 watts RMS program power allows for high acoustic output using a small amplifier
  • Great choice for high-output home, car, and professional audio setups
  • Consistent response across the mid-bass and vocal range even at the highest volumes

For maximum signal fidelity, a cloth-sealed surround is paired with a precisely engineered Kevlar-reinforced paper cone. A vented pole piece also helps dissipate heat, minimizing power compression

The 6MR200A midrange speaker is the next step up from the 6MR250A, engineered to deliver maximum output from a compact frame without compromising performance, featuring just a 2.24″ mounting depth.

This professional midrange is specifically designed to handle frequencies from 100 Hz to 6,000 Hz in three-way systems, but it also excels as a midrange in bass guitar cabinets, a woofer in two-way satellite designs, or a high-output car audio door speaker.

General Specifications

  • Nominal Diameter: 6″ (152 mm)
  • Nominal impedance: 8 Ohms
  • Rated AES Power Handling (RMS): 100 Watts
  • Program Power: 200 Watts
  • Sensitivity 2.83V at 1m: 94 dB
  • Recommended Hi Pass Crossover:* 150 Hz**
    *For Full Power Handling **12db Per Octave Crossover
  • Frequency Response: at -10dB 155 – 11,000 Hz
  • Voice Coil Diameter: 1.5″ (38 mm)
  • Voice Coil Wire: Copper
  • Voice Coil Winding Depth: 8.0 mm
  • Former Material: Kapton
  • Magnetic Gap Depth: 5.5 mm
  • Frame Material: Stamped Steel
  • Overall Diameter: 6.59″ (167.5 mm)
  • Front Mount Baffle Cutout: 5.69″ (144.5 mm)
  • Mounting Depth: 2.24″ (57 mm)
  • Overall Depth: 2.5″ (63.5 mm)
  • Net Weight: 3.52 Lbs (1.60 kg)

*Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range.
**Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to provide a clean signal without clipping or saturation.
***Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.

Explore the PRV Alto Series

6MR200A 6.5" Midrange Driver 8 Ohm

6MR200A-4 6.5" Midrange Driver 4 Ohm

8MR450A 8" Midrange Driver 8 Ohm

10W650A 10" Woofer 8 Ohm

10W650A-4 10" Woofer 4 Ohm

10MR650A 10" Midrange Driver 8 Ohm

10MR650A-4 10" Midrange Driver 4 Ohm

12W750A 12" Woofer 8 Ohm

12W800A 12" Woofer 8 Ohm

Product Details

BrandPRV Audio
Model6MR200A
Part Number294-2984
UPC602938021838
Unit of MeasureEach
Weight3.9

Product Specifications

Nominal Diameter6"
Power Handling (RMS)100 Watts
Power Handling (MAX)200 Watts
Impedance8Ω
Frequency Response155 to 11,000Hz
Sensitivity94dB 2.83V/1m
Voice Coil Diameter1.5"

Thiele-Small Parameters

Resonant Frequency (Fs)144.1Hz
DC Resistance (Re)5.5Ω
Voice Coil Inductance (Le)0.26mH
Mechanical Q (Qms)13.16
Electromagnetic Q (Qes)1.28
Total Q (Qts)1.17
Compliance Equivalent Volume (Vas)0.11ft³
Mechanical Compliance of Suspension (Cms)0.12mm/N
BL Product (BL)6.27T·m
Diaphragm Mass Inc. Airload (Mms)10.1g
Maximum Linear Excursion (Xmax)2.62mm
Surface Area of Cone (Sd)137cm²

Materials of Construction

Cone MaterialPaper
Voice Coil Wire MaterialCopper
Voice Coil FormerKapton® / Polyimide
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter6.59"
Baffle Cutout Diameter5.69"
Depth2.5"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.3ft³
Sealed F3126.3Hz
