PRV Audio 69FR250-4 6"x 9" Full-Range Speaker 4 Ohm

PRV AudioPart # 294-2897
Model: 69FR250-4

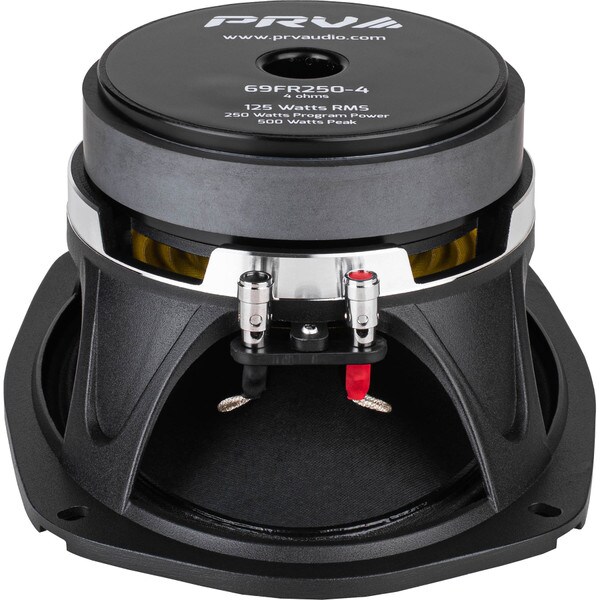

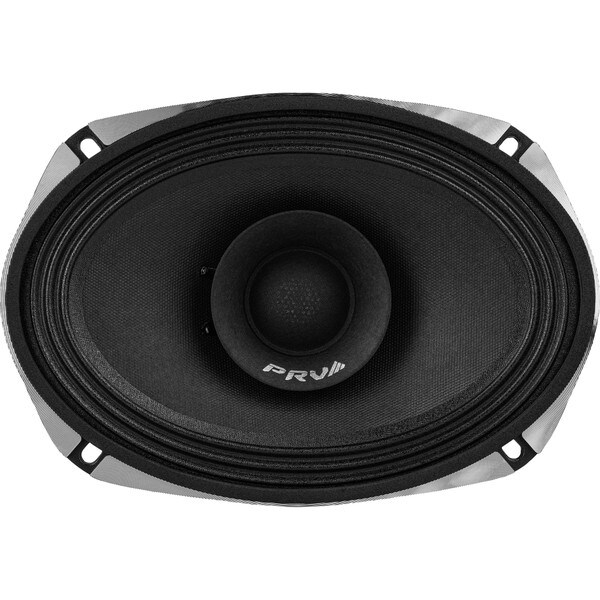

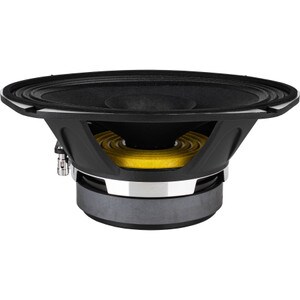

PRV Audio's 69FR250-4 6" x 9" full-range driver uses a naturally damped paper cone and optimized whizzer cone to produce response from 85 to 20,000 Hz. This driver makes it easy to add midrange and high frequencies to any system.

Key Features

  • 1.5" voice coil with ample venting to handle up to 125 watts RMS
  • 90 dB sensitivity for high output capability
  • Naturally damped paper cone provides smooth response
  • True full-range response eliminates the need for a crossover in the sensitive midrange band
  • Recommended for use with an 85 Hz @ 12 dB/octave high pass crossover
Your Price: $74.91
MSRP: $93.64
Save $18.73 (20%)
Bulk Pricing
5 In Stock
Get Notified When Available

We'll send you an email when PRV Audio 69FR250-4 6"x 9" Full-Range Speaker 4 Ohm is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

PRV Audio 69FR250-4 6"x 9" Full-Range Speaker 4 Ohm

The 69FR250-4 6" x 9" full-range driver from PRV Audio makes it easy to add midrange and high frequency to any system. The naturally damped paper cone and optimized whizzer cone gives this driver the ability to produce frequency response from 85 to 20,000 Hz without the need for a crossover in the sensitive midrange band. The 69FR250-4 is a great option for use in car audio systems and simple portable speaker designs.

Product Details

BrandPRV Audio
Model69FR250-4
Part Number294-2897
UPC602938022927
Unit of MeasureEach
Weight5.45

Product Specifications

Nominal Diameter6 x 9"
Power Handling (RMS)125 Watts
Power Handling (MAX)250 Watts
Impedance
Frequency Response75 to 18,000Hz
Sensitivity95dB 2.83V/1m
Voice Coil Diameter1.5"

Thiele-Small Parameters

Resonant Frequency (Fs)81.1Hz
DC Resistance (Re)3.5Ω
Voice Coil Inductance (Le)0.16mH
Mechanical Q (Qms)15.28
Electromagnetic Q (Qes)0.74
Total Q (Qts)0.7
Compliance Equivalent Volume (Vas)0.36ft³
Mechanical Compliance of Suspension (Cms)0.18mm/N
BL Product (BL)6.1T·m
Diaphragm Mass Inc. Airload (Mms)15.1g
Maximum Linear Excursion (Xmax)3.5mm
Surface Area of Cone (Sd)200cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialCloth
Voice Coil Wire MaterialCCA
Voice Coil FormerKapton® / Polyimide
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter9.3125" x 6.4375"
Baffle Cutout Diameter8.75" x 5.875"
Depth3.875"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.5ft³
Sealed F395.1Hz
Vented Volume0.75ft³
Vented F366.2Hz
