PRV Audio 4MR60-NDY-4 4" Neodymium Midrange Speaker 4 Ohms

PRV Audio
Part #294-3402

PRV Audio 4MR60-NDY-4 4" Neodymium Midrange Speaker 4 Ohms

PRV Audio
Part #294-3402
Model: 4MR60-NDY-4

Introducing the PRV 4MR60NDY-4, a compact 4-inch neodymium full-range loudspeaker designed to provide expansive frequency coverage and a consistently level midrange response.

Key Features
  • Very low profile loudspeaker, fit it in tight spots easily
  • Strong neodymium motor, increases efficiency on a compact design
  • Broad 90-20,000 Hz frequency range for ultimate flexibility
Your Price: $39.91
MSRP: $49.89
Save $9.98 (20%)
Bulk Pricing
Ships next business day. Details

20In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

PRV Audio 4MR60-NDY-4 4" Neodymium Midrange Speaker 4 Ohms

Introducing the PRV 4MR60NDY-4, a compact 4-inch neodymium full-range loudspeaker designed to provide expansive frequency coverage and a consistently level midrange response. This characteristic ensures the pristine delivery of vocals and instruments, making it an excellent choice for optimal audio performance in portable speaker systems, line arrays, and even car audio setups where constraints of weight and space are key considerations in the project. Remarkably efficient with a 91 dB rating and capable of handling up to 60 watts of power, this driver achieves an impressive output that defies its compact size.

Boasting an exceptional frequency response spanning from 90 to 20,000Hz, this speaker emerges as a versatile "Master of All Trades," seamlessly delivering high-fidelity sound whether employed as a midbass, midrange, or full-range speaker.

Product Details

BrandPRV Audio
Model4MR60-NDY-4
Part Number294-3402
UPC810075522938
Unit of MeasureEach
Weight0.6

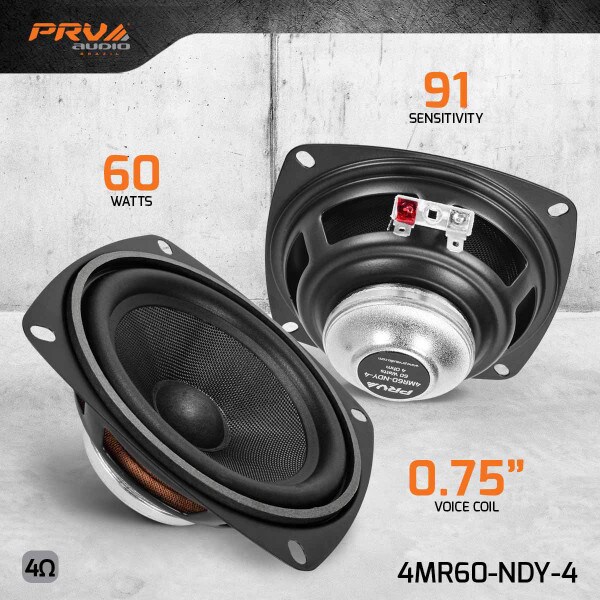

Product Specifications

Nominal Diameter4"
Power Handling (RMS)60 Watts
Power Handling (MAX)120 Watts
Impedance4Ω
Frequency Response90 to 20,000Hz
Sensitivity91dB 2.83V/1m
Voice Coil Diameter0.75"

Thiele-Small Parameters

Resonant Frequency (Fs)95.6Hz
DC Resistance (Re)3.3Ω
Voice Coil Inductance (Le)0.051mH
Mechanical Q (Qms)4.74
Electromagnetic Q (Qes)1.04
Total Q (Qts)0.85
Compliance Equivalent Volume (Vas)1ft³
Mechanical Compliance of Suspension (Cms)0.664mm/N
BL Product (BL)2.82T·m
Diaphragm Mass Inc. Airload (Mms)4.17g
Maximum Linear Excursion (Xmax)1.4mm
Surface Area of Cone (Sd)55.4cm²

Materials of Construction

Voice Coil Wire MaterialCCA
Voice Coil FormerKapton® / Polyimide
Basket / Frame MaterialSteel
Magnet MaterialNeodymium

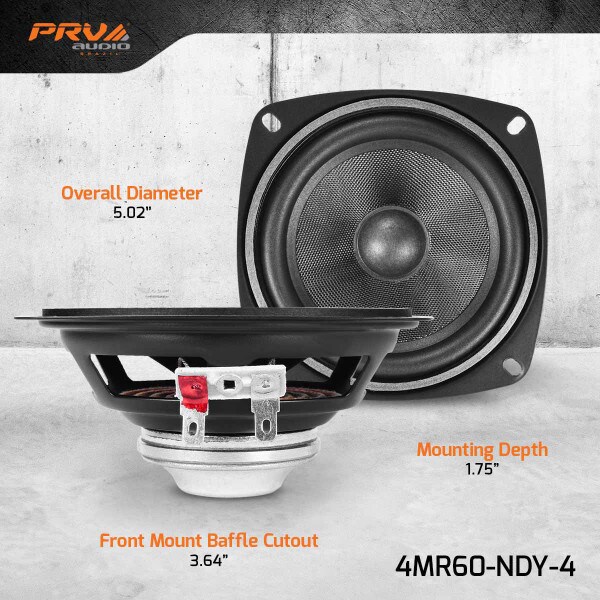

Mounting Information

Overall Outside Diameter4.16"
Baffle Cutout Diameter3.64"
Depth1.75"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.158ft³
Sealed F3102.8Hz
Vented Volume0.44ft³
Vented F349.18Hz
