  • PRV Audio 3DF500/3500 3-Way Crossover Terminal 500/3,500 Hz 12 dB/Octave Selectable 4-8 Ohm

CLEARANCE PRV Audio 3DF500/3500 3-Way Crossover Terminal 500/3,500 Hz 12 dB/Octave Selectable 4-8 Ohm

PRV AudioPart # 294-3046
Model: 3DF500/3500

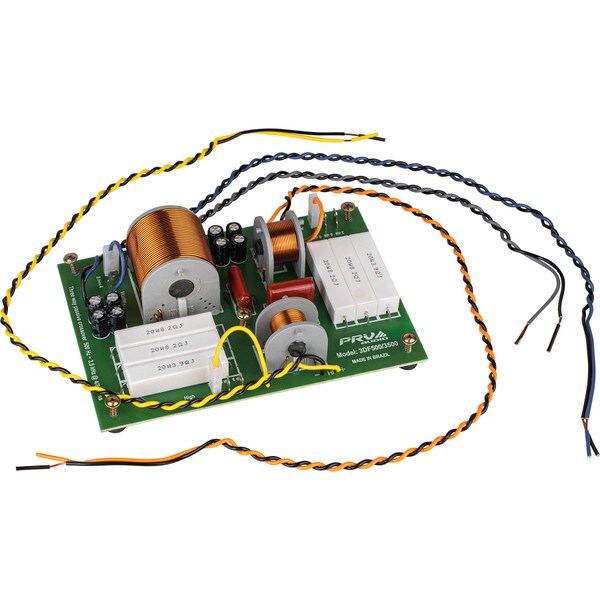

The PRV Audio 3DF500/3500 is a rugged three‑way passive crossover designed for demanding pro audio systems. With 400 W RMS (800 W program) power handling and fixed crossover points at 500 Hz and 3,500 Hz, it provides solid frequency separation and durability for live or installed sound rigs.

Key Features

  • 400 W RMS (800 W program) rating supports powerful speaker setups
  • Woofer impedance (4 Ω/8 Ω) adapts to different cabinet designs
  • Selectable woofer roll‑off slope (6 dB/12 dB/octave)
  • Fixed crossover points at 500 Hz and 3,500 Hz ensure precise LF/MF/HF separation
  • HF and mid attenuation (0/3/6 dB) allow smooth level matching across drivers
  • Brightness control adds HF presence for enhanced clarity
CLEARANCE $102.91
+ FREE SHIPPING
MSRP: $128.64
Save $25.73 (20%)
Bulk Pricing
7 In Stock
Get Notified When Available

We'll send you an email when PRV Audio 3DF500/3500 3-Way Crossover Terminal 500/3,500 Hz 12 dB/Octave Selectable 4-8 Ohm is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

PRV Audio 3DF500/3500 3-Way Crossover Terminal 500/3,500 Hz 12 dB/Octave Selectable 4-8 Ohm

PRV Audio 3DF500/3500 3-Way Crossover Terminal 500/3,500 Hz 12 dB/Octave Selectable 4-8 Ohm

PRV Audio crossovers are carefully engineered with a focus on component quality and mechanical durability. They not only deliver great sound but also endure the rigors of transport and live performances. These crossovers include distinctive selectable features:

Woofer Impedance Selection
This setting enables the same crossover to work with 8 or 4 Ohm speakers, including series or parallel combinations, offering a single solution for various cabinet configurations.

Woofer Roll-Off Crossover Adjustment
Some woofers exhibit excessive response at the cutoff frequency and require 12 dB/octave filters, while others have a natural roll-off near the crossover point and perform well with 6 dB/octave filters. PRV's 2DF1800 two-way crossover and 3DF400/1800 three-way crossover allow you to select between these filter slopes.

Speaker Attenuation
Adjust the output level of various speakers within your cabinet using this setting; it aids in achieving a smooth transition from highs to mids to lows—especially beneficial when driver sensitivities differ.

Brightness Adjustment
Many large format compression drivers naturally roll off above 10 kHz. Our brightness adjustment compensates for this by attenuating frequencies below 6 kHz while boosting high-frequency energy, enhancing brightness and definition.

All crossovers come preset from the factory with these adjustments in their default positions for quick and easy installation. However, with some experimentation and fine-tuning, you can significantly enhance the final sound quality of your speaker system.

Specifications

  • Type: Three-Way
  • Impedance: 8 Ohms
  • Crossover Point: 500/3,500 Hz
  • Woofer Impedance:  4/8 Ohms
  • Rated AES Power Handling – RMS: 400 Watts
  • Program Power: 800 Watts

  • Selectable Crossover Point: N/A
  • HF Attenuation: 0/3/6 dB
  • Brightness: N/A
  • Woofer Octave Sel: N/A
  • Midrange Attenuation: 0/3/6 dB
  • Octave: 12 dB

Product Details

BrandPRV Audio
Model3DF500/3500
Part Number294-3046
UPC602938022958
Unit of MeasureEach
Weight2.65

Product Specifications

Crossover Type3-Way
