PRV Audio 2DF800 2-Way Crossover Terminal 800 Hz 12 dB/Octave with Selectable Attenuation

PRV AudioPart # 294-3042
Model: 2DF800

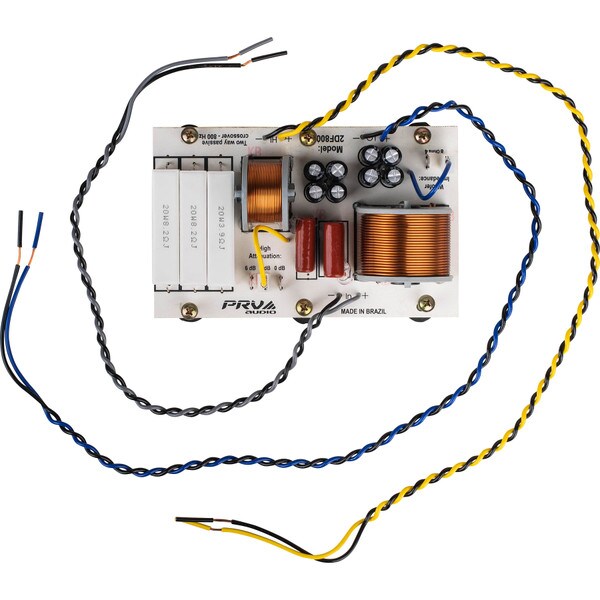

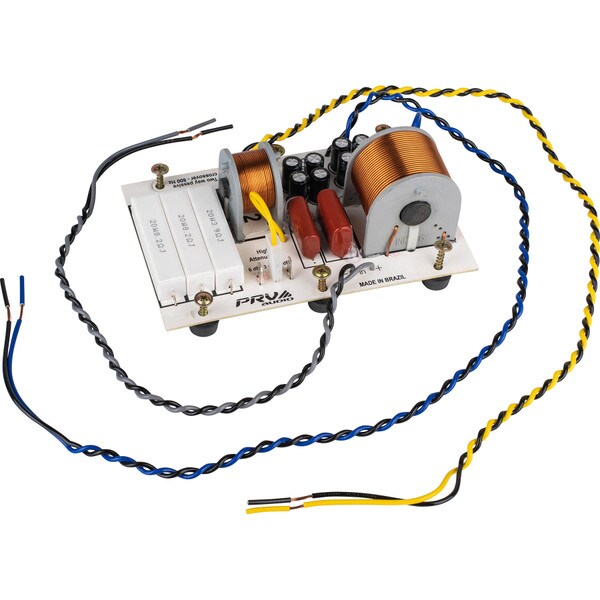

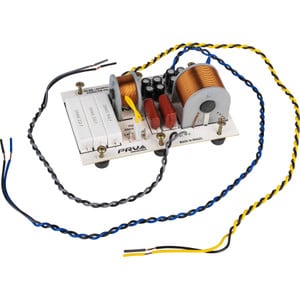

The PRV Audio 2DF800 is a high-power two-way passive crossover built for 400 W RMS (800 W program), equipped with versatile tuning options to match various speaker setups. It's engineered to deliver reliable frequency separation and live-stage durability, with adjustable impedance, slope, and frequency response controls.

Key Features

  • 400 W RMS (800 W program) rating for high-output systems
  • Woofer impedance switch (4 Ω/8 Ω) adapts to different cabinet designs
  • Selectable woofer roll-off (6 dB/12 dB)
  • HF attenuation options (0/3/6 dB) balance tweeter levels
  • Brightness control boosts clarity in high-frequency output
  • Fixed 800 Hz crossover point ensures precise two-way frequency division
Your Price: $64.91
MSRP: $81.14
Save $16.23 (20%)
Bulk Pricing
13 In Stock
Get Notified When Available

We'll send you an email when PRV Audio 2DF800 2-Way Crossover Terminal 800 Hz 12 dB/Octave with Selectable Attenuation is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

PRV Audio 2DF800 2-Way Crossover Terminal 800 Hz 12 dB/Octave with Selectable Attenuation

PRV Audio 2DF800 2-Way Crossover Terminal 800 Hz 12 dB/Octave with Selectable Attenuation

PRV Audio crossovers are carefully engineered with a focus on component quality and mechanical durability. They not only deliver great sound but also endure the rigors of transport and live performances. These crossovers include distinctive selectable features:

Woofer Impedance Selection
This setting enables the same crossover to work with 8 or 4 Ohm speakers, including series or parallel combinations, offering a single solution for various cabinet configurations.

Woofer Roll-Off Crossover Adjustment
Some woofers exhibit excessive response at the cutoff frequency and require 12 dB/octave filters, while others have a natural roll-off near the crossover point and perform well with 6 dB/octave filters. PRV's 2DF1800 two-way crossover and 3DF400/1800 three-way crossover allow you to select between these filter slopes.

Speaker Attenuation
Adjust the output level of various speakers within your cabinet using this setting; it aids in achieving a smooth transition from highs to mids to lows—especially beneficial when driver sensitivities differ.

Brightness Adjustment
Many large format compression drivers naturally roll off above 10 kHz. Our brightness adjustment compensates for this by attenuating frequencies below 6 kHz while boosting high-frequency energy, enhancing brightness and definition.

All crossovers come preset from the factory with these adjustments in their default positions for quick and easy installation. However, with some experimentation and fine-tuning, you can significantly enhance the final sound quality of your speaker system.

Specifications

  • Type: Two-Way
  • Impedance: 8 Ohms
  • Crossover Point: 1,800 Hz
  • Woofer Impedance:  4/8 Ohms
  • Rated AES Power Handling – RMS: 650 Watts
  • Program Power: 1,300 Watts

  • Selectable Crossover Point: N/A
  • HF Attenuation: 6/7.5/9 dB
  • Brightness: Yes
  • Woofer Octave Sel: 6/12 dB octave
  • Midrange Attenuation: N/A
  • Octave: 12 dB
