  • PRV Audio 2DF3500 2-Way Crossover Terminal 3,500 Hz 12 dB/Octave Selectable 4-8 Ohm

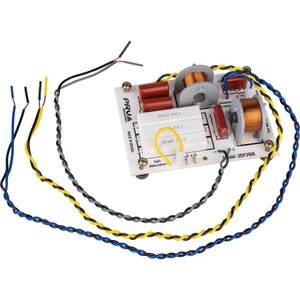

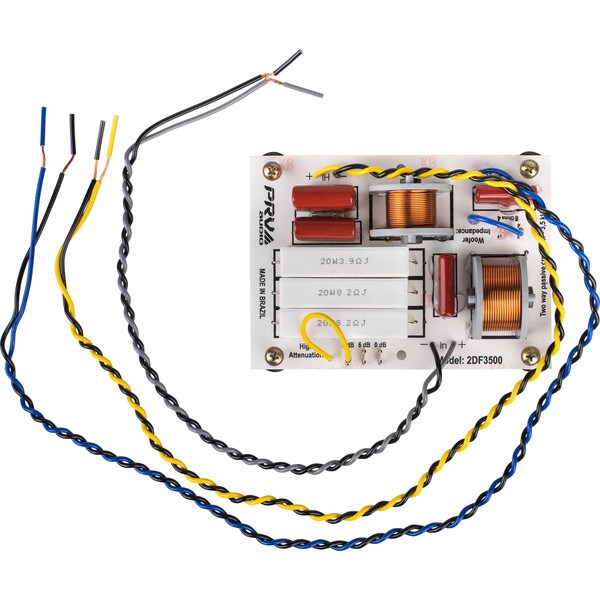

PRV Audio 2DF3500 2-Way Crossover Terminal 3,500 Hz 12 dB/Octave Selectable 4-8 Ohm

PRV AudioPart # 294-3044
Model: 2DF3500

The PRV Audio 2DF3500 is a rugged yet flexible two-way passive crossover, handling 400 W RMS (800 W program). It offers tunable impedance, slope, and attenuation controls to optimize speaker integration and tonal balance in professional systems.

Key Features

  • 400 W RMS (800 W program) supports high-output speaker systems
  • Selectable woofer impedance (4/8 Ω)
  • Switchable woofer roll-off (6 dB/12 dB/oct)
  • HF attenuation (0/3/6 dB) ensures balanced tweeter levels
  • Brightness control boosts HF clarity for added definition
  • Fixed 3,500 Hz crossover point suits standard two-way systems
Your Price: $52.91
MSRP: $66.14
Save $13.23 (20%)
Bulk Pricing
9 In Stock
Get Notified When Available

We'll send you an email when PRV Audio 2DF3500 2-Way Crossover Terminal 3,500 Hz 12 dB/Octave Selectable 4-8 Ohm is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

PRV Audio 2DF3500 2-Way Crossover Terminal 3,500 Hz 12 dB/Octave Selectable 4-8 Ohm

PRV Audio 2DF3500 2-Way Crossover Terminal 3,500 Hz 12 dB/Octave Selectable 4-8 Ohm

PRV Audio crossovers are carefully engineered with a focus on component quality and mechanical durability. They not only deliver great sound but also endure the rigors of transport and live performances. These crossovers include distinctive selectable features:

Woofer Impedance Selection
This setting enables the same crossover to work with 8 or 4 Ohm speakers, including series or parallel combinations, offering a single solution for various cabinet configurations.

Woofer Roll-Off Crossover Adjustment
Some woofers exhibit excessive response at the cutoff frequency and require 12 dB/octave filters, while others have a natural roll-off near the crossover point and perform well with 6 dB/octave filters. PRV's 2DF1800 two-way crossover and 3DF400/1800 three-way crossover allow you to select between these filter slopes.

Speaker Attenuation
Adjust the output level of various speakers within your cabinet using this setting; it aids in achieving a smooth transition from highs to mids to lows—especially beneficial when driver sensitivities differ.

Brightness Adjustment
Many large format compression drivers naturally roll off above 10 kHz. Our brightness adjustment compensates for this by attenuating frequencies below 6 kHz while boosting high-frequency energy, enhancing brightness and definition.

All crossovers come preset from the factory with these adjustments in their default positions for quick and easy installation. However, with some experimentation and fine-tuning, you can significantly enhance the final sound quality of your speaker system.

Specifications

  • Type: Two-Way
  • Impedance: 8 Ohms
  • Crossover Point: 3,500 Hz
  • Woofer Impedance:  4/8 Ohms
  • Rated AES Power Handling – RMS: 400 Watts
  • Program Power: 800 Watts

  • Selectable Crossover Point: N/A
  • HF Attenuation: 0/3/6 dB
  • Brightness: No
  • Woofer Octave Sel: N/A
  • Midrange Attenuation: N/A
  • Octave: 12 dB

Product Details

BrandPRV Audio
Model2DF3500
Part Number294-3044
UPC602938022941
Unit of MeasureEach
Weight0.85

Product Specifications

ConfigurationAssembled Board Only
Crossover Type2-Way
