PRV Audio 2DF2K Two-Way Crossover Terminal 2,000 Hz 12 dB/Octave 8 Ohm

PRV AudioPart # 294-2859
Model: 2DF2K

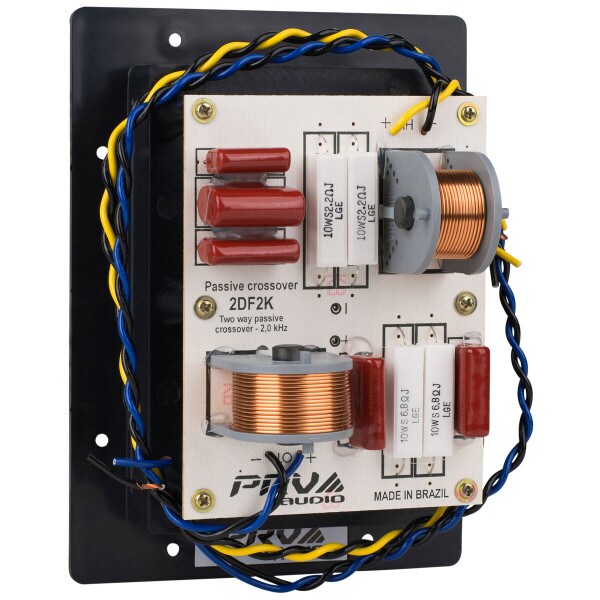

Get your two-way professional audio speaker cabinet up and running like new with the PRV Audio 2DF2k crossover. A speakON-compatible input and parallel wired pass-through output makes amplifier connection simple, quick, and secure.

Key Features

  • High quality components can handle up to 450 watts RMS
  • Common 2,000 Hz crossover point is compatible with many popular horn drivers
  • Perfect replacement or upgrade crossover for two-way speaker cabinets

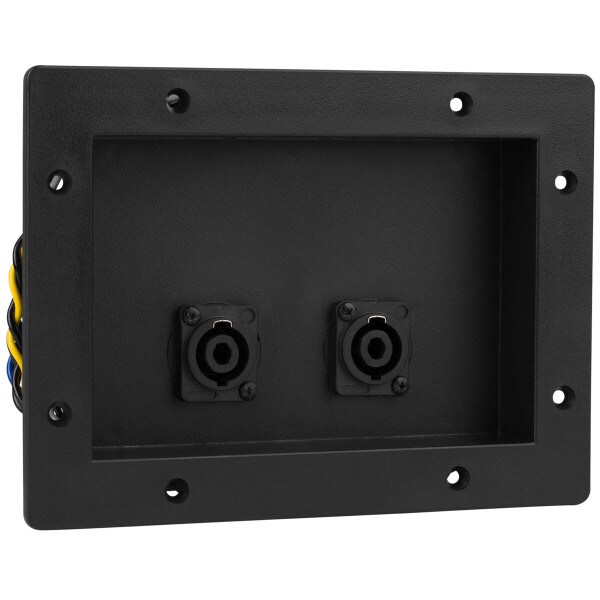

  • Parallel wired speakON-compatible input/output connectors
Your Price: $62.91
MSRP: $78.64
Save $15.73 (20%)
Bulk Pricing
Back-Ordered
Get Notified When Available

We'll send you an email when PRV Audio 2DF2K Two-Way Crossover Terminal 2,000 Hz 12 dB/Octave 8 Ohm is back in stock or available for preorder.

Estimated back in stock 8/30/2025
Alert Me When Available
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

PRV Audio 2DF2K Two-Way Crossover Terminal 2,000 Hz 12 dB/Octave 8 Ohm

PRV Audio 2DF2K Two-Way Crossover Terminal 2,000 Hz 12 dB/Octave 8 Ohm

PRV Audio crossovers are carefully engineered with a focus on component quality and mechanical durability. They not only deliver great sound but also endure the rigors of transport and live performances. These crossovers include distinctive selectable features:

Woofer Impedance Selection
This setting enables the same crossover to work with 8 or 4 Ohm speakers, including series or parallel combinations, offering a single solution for various cabinet configurations.

Woofer Roll-Off Crossover Adjustment
Some woofers exhibit excessive response at the cutoff frequency and require 12 dB/octave filters, while others have a natural roll-off near the crossover point and perform well with 6 dB/octave filters. PRV's 2DF1800 two-way crossover and 3DF400/1800 three-way crossover allow you to select between these filter slopes.

Speaker Attenuation
Adjust the output level of various speakers within your cabinet using this setting; it aids in achieving a smooth transition from highs to mids to lows—especially beneficial when driver sensitivities differ.

Brightness Adjustment
Many large format compression drivers naturally roll off above 10 kHz. Our brightness adjustment compensates for this by attenuating frequencies below 6 kHz while boosting high-frequency energy, enhancing brightness and definition.

All crossovers come preset from the factory with these adjustments in their default positions for quick and easy installation. However, with some experimentation and fine-tuning, you can significantly enhance the final sound quality of your speaker system.

Specifications

  • Type: Two-Way
  • Impedance: 8 Ohms
  • Crossover Point: 2,000 Hz
  • Woofer Impedance:  N/A
  • Rated AES Power Handling – RMS: 450 Watts
  • Program Power: 900 Watts

  • Selectable Crossover Point: N/A
  • HF Attenuation: N/A
  • Brightness: No
  • Woofer Octave Sel: N/A
  • Midrange Attenuation: N/A
  • Octave: 12 dB

Note: Each connector is wired 1+ to 2+ and 1- to 2-. Please consult your amplifier manual to see if this affects amplifier operation prior to connecting 4-pole speakON-compatible speaker cables. 2-pole speakON-compatible speaker cables are not affected.

Product Details

BrandPRV Audio
Model2DF2K
Part Number294-2859
UPC799928733991
Unit of MeasureEach
Weight1.4

Product Specifications

ConfigurationIncludes Connector Dish
Crossover Type2-Way
