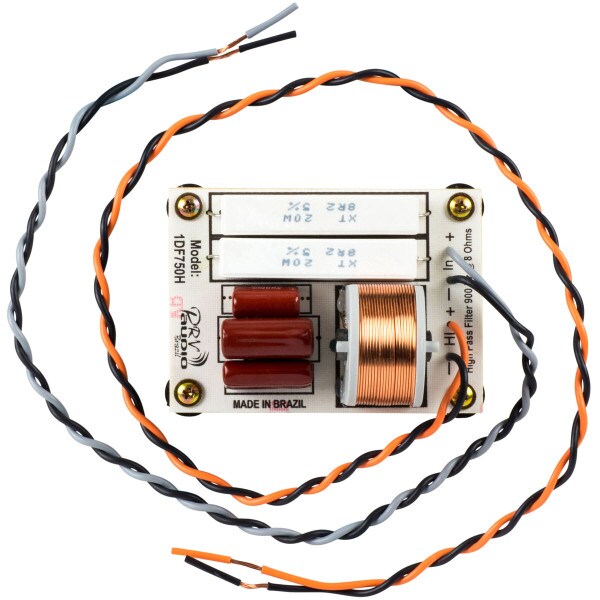

CLEARANCE PRV Audio 1DF750H High Pass Crossover Board 750 Hz

PRV AudioPart # 294-2864
Model: 1DF750H

The PRV Audio 1DF750H is a compact high‑pass crossover for compression drivers, with a fixed 900 Hz cutoff and a 12 dB/octave slope. Rated at 250 W RMS (500 W program), it's built with premium components and a rugged design to enhance high-frequency clarity and reliability.

Key Features

  • Fixed 900 Hz high-pass filter protects compression drivers from low-frequency strain
  • 12 dB/octave slope ensures smooth transition and accurate frequency separation
  • Handles 250 W RMS (500 W program) for dependable performance in pro systems
  • Compact board design fits easily into horn driver assemblies or enclosures
Get Notified When Available

We'll send you an email when PRV Audio 1DF750H High Pass Crossover Board 750 Hz is back in stock or available for preorder.

60 Day No Hassle Return Policy

Overview

PRV Audio 1DF750H High Pass Crossover Board 750 Hz

PRV Audio 1DF750H High Pass Crossover Board 750 Hz

PRV Audio crossovers are carefully engineered with a focus on component quality and mechanical durability. They not only deliver great sound but also endure the rigors of transport and live performances. These crossovers include distinctive selectable features:

Woofer Impedance Selection
This setting enables the same crossover to work with 8 or 4 Ohm speakers, including series or parallel combinations, offering a single solution for various cabinet configurations.

Woofer Roll-Off Crossover Adjustment
Some woofers exhibit excessive response at the cutoff frequency and require 12 dB/octave filters, while others have a natural roll-off near the crossover point and perform well with 6 dB/octave filters. PRV's 2DF1800 two-way crossover and 3DF400/1800 three-way crossover allow you to select between these filter slopes.

Speaker Attenuation
Adjust the output level of various speakers within your cabinet using this setting; it aids in achieving a smooth transition from highs to mids to lows—especially beneficial when driver sensitivities differ.

Brightness Adjustment
Many large format compression drivers naturally roll off above 10 kHz. Our brightness adjustment compensates for this by attenuating frequencies below 6 kHz while boosting high-frequency energy, enhancing brightness and definition.

All crossovers come preset from the factory with these adjustments in their default positions for quick and easy installation. However, with some experimentation and fine-tuning, you can significantly enhance the final sound quality of your speaker system.

Specifications

  • Type: High Pass
  • Impedance: 8 Ohms
  • Crossover Point: 900 Hz
  • Woofer Impedance:  N/A
  • Rated AES Power Handling – RMS: 250 Watts
  • Program Power: 500 Watts

  • Selectable Crossover Point: N/A
  • HF Attenuation: N/A
  • Brightness: No
  • Woofer Octave Sel: N/A
  • Midrange Attenuation: N/A
  • Octave: 12 dB

Product Details

BrandPRV Audio
Model1DF750H
Part Number294-2864
UPC799928734646
Unit of MeasureEach
Weight0.65

Product Specifications

ConfigurationAssembled Board Only
Crossover TypeHigh Pass
