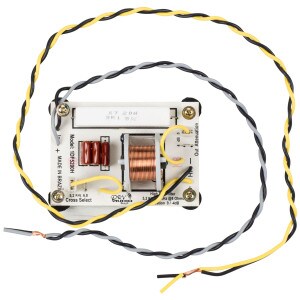

PRV Audio 1DF5200H High Pass Crossover Board 5,200/6,800 Hz with Selectable Attenuation

PRV AudioPart # 294-2866
Model: 1DF5200H

The PRV Audio 1DF5200H is a compact high-pass crossover module engineered for compression drivers and super tweeters. With selectable crossover points at 5,200 Hz or 6,800 Hz and adjustable attenuation, it ensures precise tonal protection and seamless system integration. It delivers professional-grade performance in a small, durable form factor.

Key Features

  • Selectable 5,200 Hz or 6,800 Hz high-pass filter protects HF drivers from low-frequency strain
  • 12 dB/octave slope ensures smooth and effective frequency transition
  • 0 dB/4 dB attenuation balancing to match driver sensitivity
  • Brightness control tunes high-frequency presence for clarity or warmth
Your Price: $29.91
MSRP: $37.39
Save $7.48 (20%)
Bulk Pricing
In Stock
Get Notified When Available

We'll send you an email when PRV Audio 1DF5200H High Pass Crossover Board 5,200/6,800 Hz with Selectable Attenuation is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

PRV Audio 1DF5200H High Pass Crossover Board 5,200/6,800 Hz with Selectable Attenuation

PRV Audio 1DF5200H High Pass Crossover Board 5,200/6,800 Hz with Selectable Attenuation

PRV Audio crossovers are carefully engineered with a focus on component quality and mechanical durability. They not only deliver great sound but also endure the rigors of transport and live performances. These crossovers include distinctive selectable features:

Woofer Impedance Selection
This setting enables the same crossover to work with 8 or 4 Ohm speakers, including series or parallel combinations, offering a single solution for various cabinet configurations.

Woofer Roll-Off Crossover Adjustment
Some woofers exhibit excessive response at the cutoff frequency and require 12 dB/octave filters, while others have a natural roll-off near the crossover point and perform well with 6 dB/octave filters. PRV's 2DF1800 two-way crossover and 3DF400/1800 three-way crossover allow you to select between these filter slopes.

Speaker Attenuation
Adjust the output level of various speakers within your cabinet using this setting; it aids in achieving a smooth transition from highs to mids to lows—especially beneficial when driver sensitivities differ.

Brightness Adjustment
Many large format compression drivers naturally roll off above 10 kHz. Our brightness adjustment compensates for this by attenuating frequencies below 6 kHz while boosting high-frequency energy, enhancing brightness and definition.

All crossovers come preset from the factory with these adjustments in their default positions for quick and easy installation. However, with some experimentation and fine-tuning, you can significantly enhance the final sound quality of your speaker system.

Specifications

  • Type: High Pass
  • Impedance: 8 Ohms
  • Crossover Point: 5,200 Hz
  • Woofer Impedance:  N/A
  • Rated AES Power Handling – RMS: 100 Watts
  • Program Power: 200 Watts

  • Selectable Crossover Point: 6,800 Hz
  • HF Attenuation: 0/4 dB
  • Brightness: Yes
  • Woofer Octave Sel: N/A
  • Midrange Attenuation: N/A
  • Octave: 12 dB

Product Details

BrandPRV Audio
Model1DF5200H
Part Number294-2866
UPC799928734639
Unit of MeasureEach
Weight0.395

Product Specifications

ConfigurationAssembled Board Only
Crossover TypeHigh Pass
