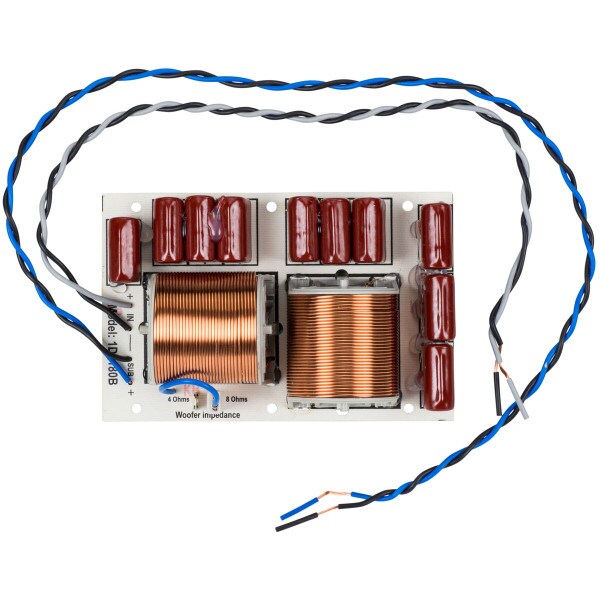

CLEARANCE PRV Audio 1DF180B Low Pass Subwoofer Crossover Board 180 Hz

PRV AudioPart # 294-2863
Model: 1DF180B

The PRV Audio 1DF180B is a low‑pass crossover module set at 180 Hz, designed to precisely direct bass to woofers. Its compact size and selectable impedance make it a simple and effective addition to your subwoofer system.

Key Features

  • Fixed 180 Hz low‑pass filter ensures clean bass separation
  • 12 dB/octave slope provides smooth transition without harsh roll-offs
  • Handles 600 W RMS (1,200 W program) for reliable performance in high-output systems
  • Switchable 4/8 Ω woofer impedance for versatile cabinet compatibility
  • Simplifies design by filtering bass without requiring a full crossover network
  • Compact PCB form factor fits easily within speaker enclosures
CLEARANCE $109.91
+ FREE SHIPPING
MSRP: $137.39
Save $27.48 (20%)
Bulk Pricing
7 In Stock
Get Notified When Available

We'll send you an email when PRV Audio 1DF180B Low Pass Subwoofer Crossover Board 180 Hz is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

PRV Audio 1DF180B Low Pass Subwoofer Crossover Board 180 Hz

PRV Audio 1DF180B Low Pass Subwoofer Crossover Board 180 Hz

PRV Audio crossovers are carefully engineered with a focus on component quality and mechanical durability. They not only deliver great sound but also endure the rigors of transport and live performances. These crossovers include distinctive selectable features:

Woofer Impedance Selection
This setting enables the same crossover to work with 8 or 4 Ohm speakers, including series or parallel combinations, offering a single solution for various cabinet configurations.

Woofer Roll-Off Crossover Adjustment
Some woofers exhibit excessive response at the cutoff frequency and require 12 dB/octave filters, while others have a natural roll-off near the crossover point and perform well with 6 dB/octave filters. PRV's 2DF1800 two-way crossover and 3DF400/1800 three-way crossover allow you to select between these filter slopes.

Speaker Attenuation
Adjust the output level of various speakers within your cabinet using this setting; it aids in achieving a smooth transition from highs to mids to lows—especially beneficial when driver sensitivities differ.

Brightness Adjustment
Many large format compression drivers naturally roll off above 10 kHz. Our brightness adjustment compensates for this by attenuating frequencies below 6 kHz while boosting high-frequency energy, enhancing brightness and definition.

All crossovers come preset from the factory with these adjustments in their default positions for quick and easy installation. However, with some experimentation and fine-tuning, you can significantly enhance the final sound quality of your speaker system.

Specifications

  • Type: Low Pass
  • Impedance: 4/8 Ohms
  • Crossover Point: 180 Hz
  • Woofer Impedance:  4/8 Ohms
  • Rated AES Power Handling – RMS: 600 Watts
  • Program Power: 1,200 Watts

  • Selectable Crossover Point: N/A
  • HF Attenuation: N/A
  • Brightness: No
  • Woofer Octave Sel: N/A
  • Midrange Attenuation: N/A
  • Octave: 12 dB

Product Details

BrandPRV Audio
Model1DF180B
Part Number294-2863
UPC799928734653
Unit of MeasureEach
Weight2.83

Product Specifications

ConfigurationAssembled Board Only
Crossover TypeSubwoofer
