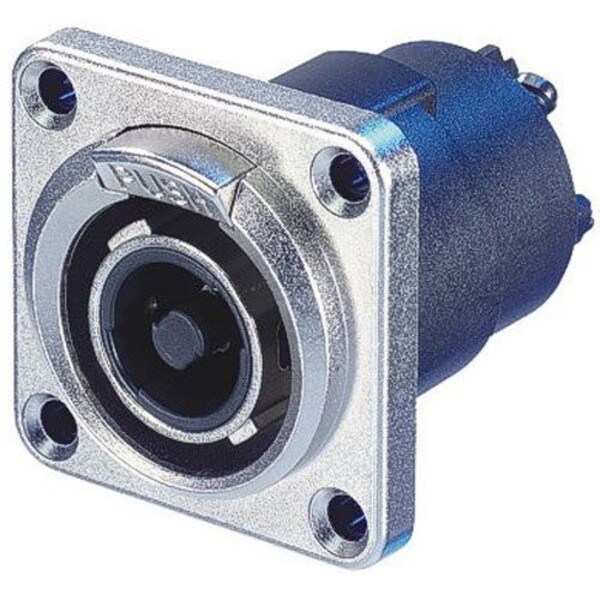

Neutrik NLT4FPXX speakON STX 4 Pole Female Chassis Connector Metal Housing

NeutrikPart # 092-341
Model: NLT4FPXX
1 Question, 7 Answers or
Neutrik's NLT4FP is a 4 pole female speakON chassis connector, with metal housing, and solder contacts.

Key Features

  • Current rating 40 Amp continuous, 50 Amp audio with 50% duty cycle
  • Robust and durable all metal housing
  • Sealing ring provides weatherproof IP54 rating
  • Reinforced metal quick lock system for ease and precise locking
  • Extra large solder contacts for up to 6 mm (AWG10) wires
  • Mate with all available speakON products
Your Price: $12.73
MSRP: $13.53
Save $0.80 (6%)
Bulk Pricing
38 In Stock
Get Notified When Available

We'll send you an email when Neutrik NLT4FPXX speakON STX 4 Pole Female Chassis Connector Metal Housing is back in stock or available for preorder.

Order in the next 10 hr 13 min to ship today. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Neutrik NLT4FPXX speakON STX 4 Pole Female Chassis Connector Metal Housing

The new STX Series is the next generation of 4 pole speakON connectors especially designed for amplifier-loudspeaker applications in harsh and demanding environments such as professional touring. The extremely rugged and durable STX Series feature an all metal housing and a built-in gasket providing weatherproof protection to IP54. The 4 pole version is now available as 4 gender system including male cable and female chassis connector.

Product
Connector TypespeakON
GenderFemale
Electrical
Contact resistance<2 mΩ (after lifetime)
Dielectric strength4 kVdc (peak)
Insulation resistance>10 GΩ (after dampheat)
Rated current per contact40A RMS continuous
Rated current per contact50A audiosignal, duty cycle 50%
Rated voltage250V (Insulation)
AttentionspeakON is NOT to be used as an AC mains connector!
Mechanical
Lifetime>5,000 mating cycles
Wire size6 mm²
Wire size10 AWG
WiringSolder contacts
Locking deviceQuick lock
Mounting directionFront & rear
Chassis shapeSquare G-size flange
LayoutFour thru holes
Material
Contact plating4 µm Ag
ContactsSpring Copper (CuSn0.2)
InsertPolyamide (PA 6 30% GR)
Locking elementZinc diecast (ZnAl4Cu1)
ShellZinc diecast (ZnAl4Cu1) black chrome
Environmental
ApprovalsUL, cUL
FlammabilityUL 94 HB
Protection classIP 54 (mated condition)
SolderabilityComplies with IEC 68-2-20
Temperature range-30°C to +80°C

Product Details

BrandNeutrik
ModelNLT4FPXX
Part Number092-341
UPC844632095740
Unit of MeasureEach
Weight0.16

Product Specifications

Circuit4-Pole
GenderFemale
Mounting TypeChassis / Panel Mount
