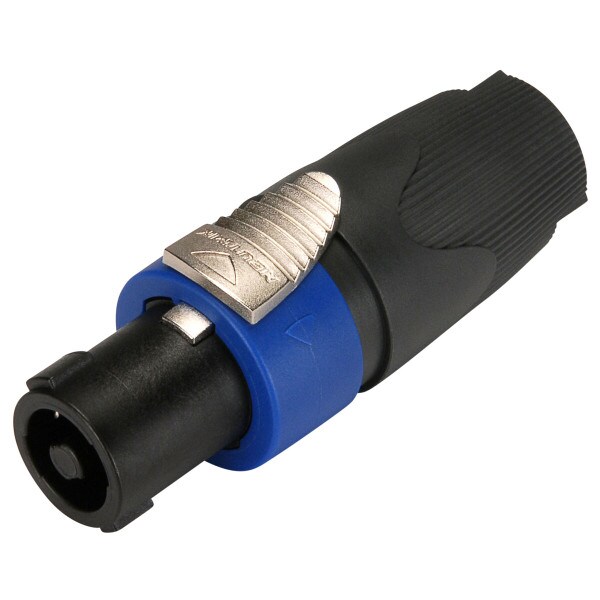

  • Neutrik NL4FX speakON SPX Series 4-Pole Cable Connector

CLEARANCE Neutrik NL4FX speakON SPX Series 4-Pole Cable Connector

NeutrikPart # 092-190
Model: NL4FX
Speakers with more power need a connector that can handle them safely. That’s where Neutrik's NL4FX speakON cable connector comes in. Its high current rating of 50A easily handles pro audio speakers and power amplifiers carrying more than 1,000 watts. Convenient three-piece design enables smooth assembly and installation.

Key Features

  • 4-pole cable connector designed for bi-amped speaker applications

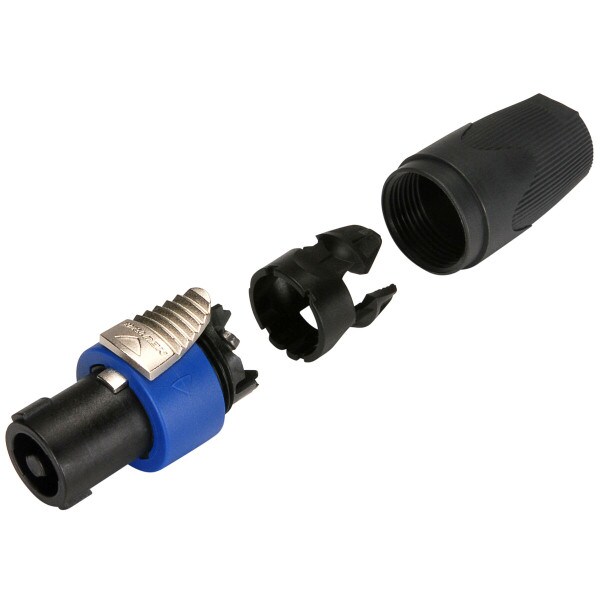

  • Ergonomic and easy-to-assemble three-piece design
  • One-piece chuck-type strain relief for 7 to 14.5 mm cable O.D.
  • Higher pull-out force, thanks to the screw-type termination
  • Accurate "quick lock" locking system
Get Notified When Available

We'll send you an email when Neutrik NL4FX speakON SPX Series 4-Pole Cable Connector is back in stock or available for preorder.

60 Day No Hassle Return Policy

Overview

Neutrik NL4FX speakON SPX Series 4-Pole Cable Connector

Enjoy premium-quality sound and forget about short-circuiting with the Neutrik NL4FX speakON SPX series cable connector. With a current rating of 40A RMS continuous, it is made from high-impact materials for exceptional durability. This 4-pole cable connector has three easy-to-connect pieces, that have solid contacts with screw-type terminals for increased protection. Its 'quick change' feature offers the convenience of converting a straight connector to a right angle, and vice versa without removing the cable. Less assembling parts and the fact that no special tools are required to handle the new insert, make handling easy. The large latch and rear boot also add to the convenience. The 50A current rating is ideal for high-powered live sound speakers and power amplifiers carrying more than 1,000 watts.

Specifications: • Connector type: Cable connector, straight, 4-pole • Rated current per contact: 40 amp RMS continuous, 50 amp audio signal (50% duty cycle) • Wiring: Screw-type terminals or soldering • Mfg. #NL4FX.

Note: speakON SPX is compatible with the standard NL4 series of connectors.

Product Details

BrandNeutrik
ModelNL4FX
Part Number092-190
Unit of MeasureEach
Weight0.15

Product Specifications

Circuit4-Pole
GenderFemale
Mounting TypeCable Mount
