  • Neutrik NE8MX6-T etherCON Cat 6a Cable Connector for 24 AWG or Smaller - Nickel

Neutrik NE8MX6-T etherCON Cat 6a Cable Connector for 24 AWG or Smaller - Nickel

NeutrikPart # 092-1826
Model: NE8MX6-T
1 Question, 4 Answers or

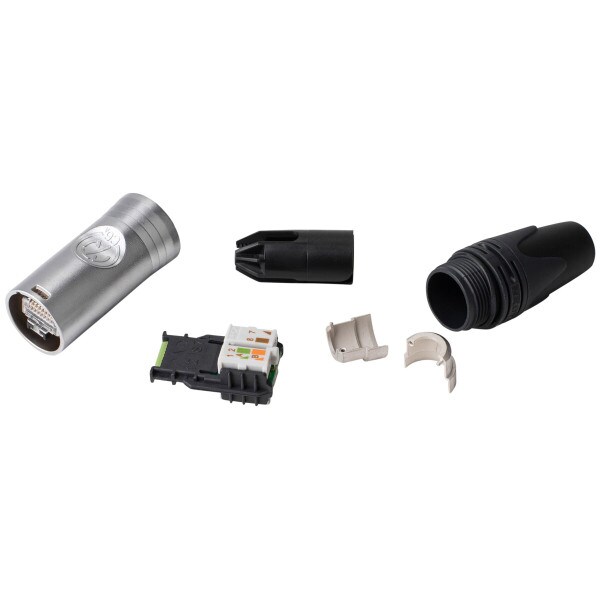

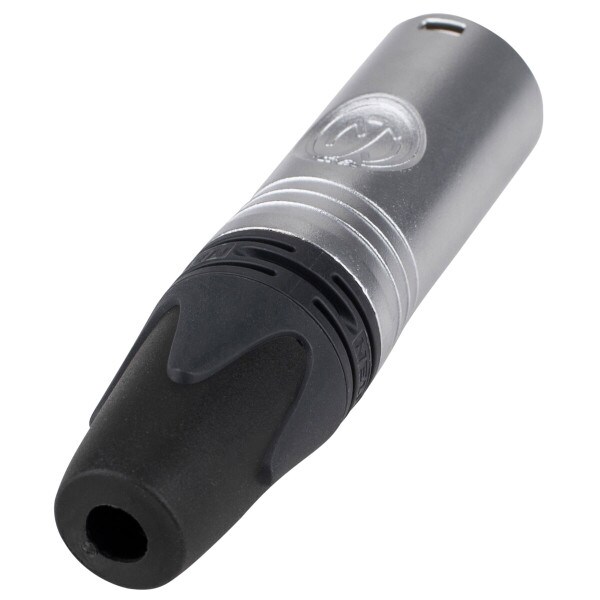

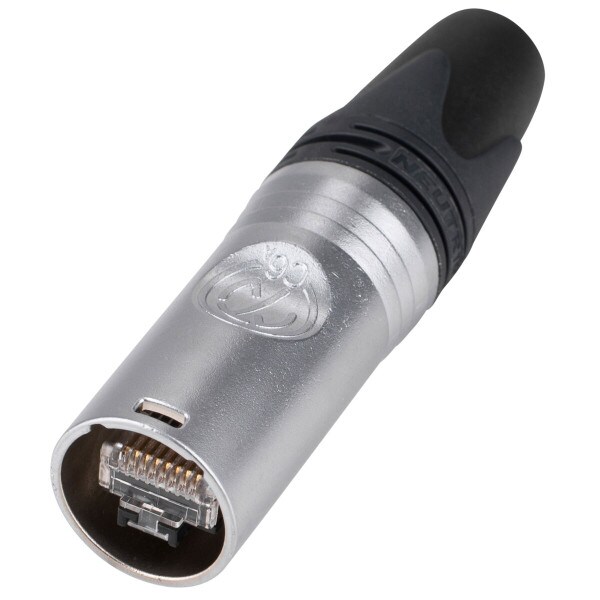

The Neutrik NE8MX6-T is a cable mount RJ45 Cat 6a connector with self-termination, for wire size < AWG24. IP65 ingress protection when mated with NE8FDX-P6-W or NE8FDX-Y6-W. Includes a robust metal shell, proven Neutrik chuck-type strain relief and a Cat 6a compliant RJ45 plug.
Your Price: $16.95
MSRP: $22.99
Save $6.04 (26%)
Bulk Pricing
Quantity:Qty: 1-99 $16.95/ea
Quantity:Qty: 100-249 $16.04/ea
Quantity:Qty: 250+ $15.43/ea
149 In Stock
Get Notified When Available

We'll send you an email when Neutrik NE8MX6-T etherCON Cat 6a Cable Connector for 24 AWG or Smaller - Nickel is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Neutrik NE8MX6-T etherCON Cat 6a Cable Connector for 24 AWG or Smaller - Nickel

The Neutrik NE8MX6-T is a cable mount RJ45 Cat 6a connector with self-termination, for wire size < AWG24. IP65 ingress protection when mated with NE8FDX-P6-W or NE8FDX-Y6-W. Includes a robust metal shell, proven Neutrik chuck-type strain relief and a Cat 6a compliant RJ45 plug. The set is suitable for a cable diameter range of 7 mm to 9.5 mm and wire gauge of AWG26/1 - AWG24/1 (solid) or AWG27/7 - AWG24/7 (stranded). Cat 6a specification to TIA / EIA 568-C.2, ISO / IEC 11801. PoE+ compliant according to 802.3at Type 2.

NOTE: This connector WILL intermate with etherCON Cat 5 products, but WILL NOT intermate with Cat 6 connectors NE8FDY-C6 and NE8FDY-C6-B.

The etherCON Series by Neutrik is a ruggedized and lockable RJ45 connector system, optimized for pro audio, video and lightning network applications. The chassis connectors are shaped to fit into standardized panels for the entertainment industry. The D-Series offers the most rugged design of the etherCON series and is perfectly suitable for panel mount and the installer market.

Product Details

BrandNeutrik
ModelNE8MX6-T
Part Number092-1826
Unit of MeasureEach
Weight0.09
