Neutrik NE8FDX-P6-W etherCON RJ45 Cat 6a Shielded Feed-Thru Connector with IP65 Seal

NeutrikPart # 092-1822
Model: NE8FDX-P6-W

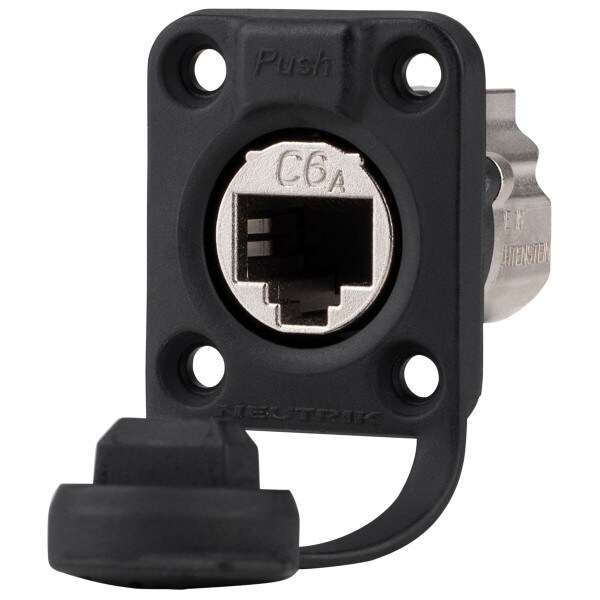

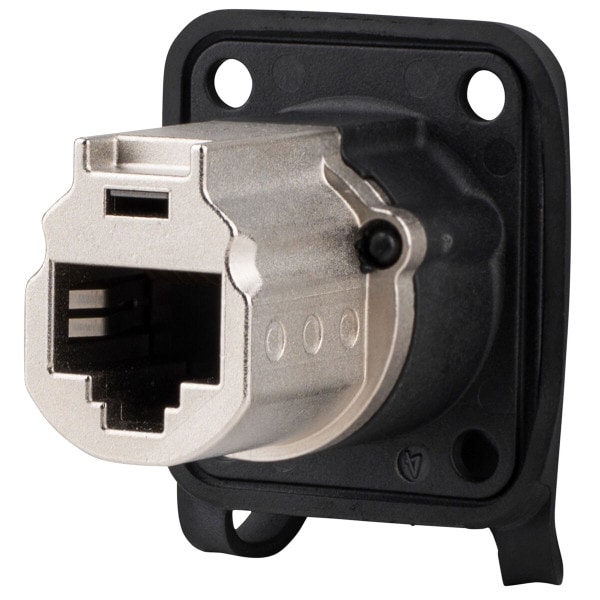

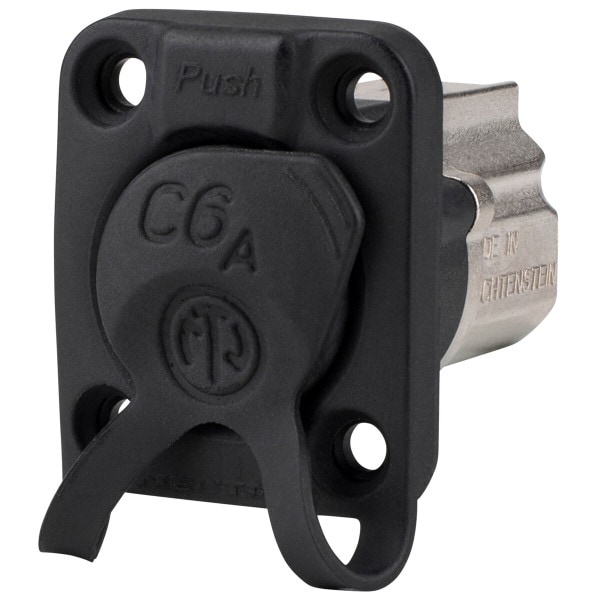

The Neutrik NE8FDX-P6-W is a panel mount RJ45 Cat 6a feed-thru receptacle with a captive rubber seal. IP65 ingress protection in mated condition and unmated (when sealing cap is closed). With a D-shape metal flange and secure locking system, this connector is shielded to provide high noise immunity and EMI protection.
Your Price: $23.53
MSRP: $30.99
Save $7.46 (24%)
Bulk Pricing
Quantity:Qty: 1-99 $23.53/ea
Quantity:Qty: 100-249 $22.28/ea
Quantity:Qty: 250+ $21.42/ea
60 In Stock
Get Notified When Available

We'll send you an email when Neutrik NE8FDX-P6-W etherCON RJ45 Cat 6a Shielded Feed-Thru Connector with IP65 Seal is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Neutrik NE8FDX-P6-W etherCON RJ45 Cat 6a Shielded Feed-Thru Connector with IP65 Seal

The Neutrik NE8FDX-P6-W is a panel mount RJ45 Cat 6a feed-thru receptacle with a captive rubber seal. IP65 ingress protection in mated condition and unmated (when sealing cap is closed). With a D-shape metal flange and secure locking system, this connector is shielded to provide high noise immunity and EMI protection. Cat 6a specification to TIA / EIA 568-C.2, ISO / IEC 11801. PoE+ compliant according to 802.3at Type 2.

NOTE: This connector WILL intermate with etherCON Cat 5 products, but WILL NOT intermate with Cat 6 connector NE8MC6-MO or NKE6S* cables.

The etherCON Series by Neutrik is a ruggedized and lockable RJ45 connector system, optimized for pro audio, video and lightning network applications. The chassis connectors are shaped to fit into standardized panels for the entertainment industry. The D-Series offers the most rugged design of the etherCON series and is perfectly suitable for panel mount and the installer market.

Product Details

BrandNeutrik
ModelNE8FDX-P6-W
Part Number092-1822
Unit of MeasureEach
Weight0.06
