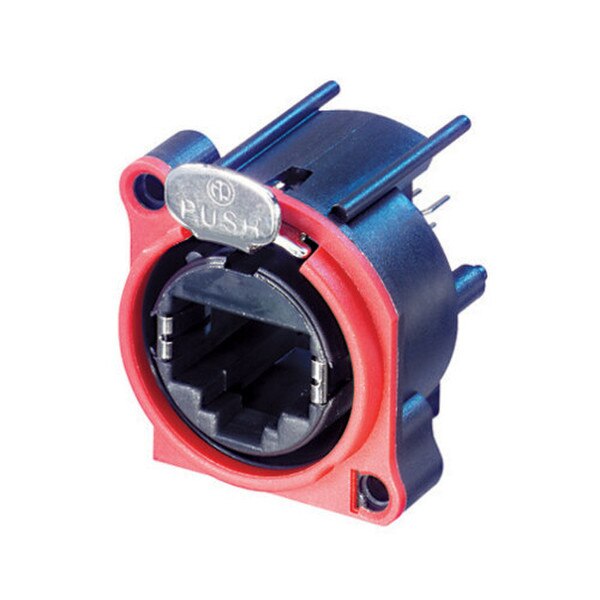

Neutrik NE8FAV etherCON A Series Panel Mount Connector Vertical PCBV
Vertical PCB mount RJ45 receptacle, A-Series cutout with latch lock, max. panel thickness 3mm.
The etherCON Series is a ruggedized and lockable RJ45 connector system, optimized for pro audio, video and lightning network applications. The chassis connectors are shaped to fit into standardized panels out of the entertainment industry. The all plastic A-Series offers the most space saving and cost effective design.
Key Features
- Accommodates rugged etherCON NE8MC* or any standard RJ45 plug
- Approved latch lock system
- Most space saving and cost effective design
- CAT5e / Class D according to TIA/EIA 568C and ISO/IEC 11801
- Isolated to panel ground
- PoE type 4 class 8 (100W) acc. IEEE 802.3bt
- Does not intermate with CAT6 cable connector NE8MC6-MO and NKE6S* cables
Your Price: $5.00
MSRP: $5.32
Bulk Pricing
102 In Stock
Get Notified When Available
We'll send you an email when Neutrik NE8FAV etherCON A Series Panel Mount Connector Vertical PCBV is back in stock or available for preorder.
Order in the next 4 hr 49 min to ship today. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy
Neutrik NE8FAV Data Sheet
Neutrik NE8FAV 3D Image
