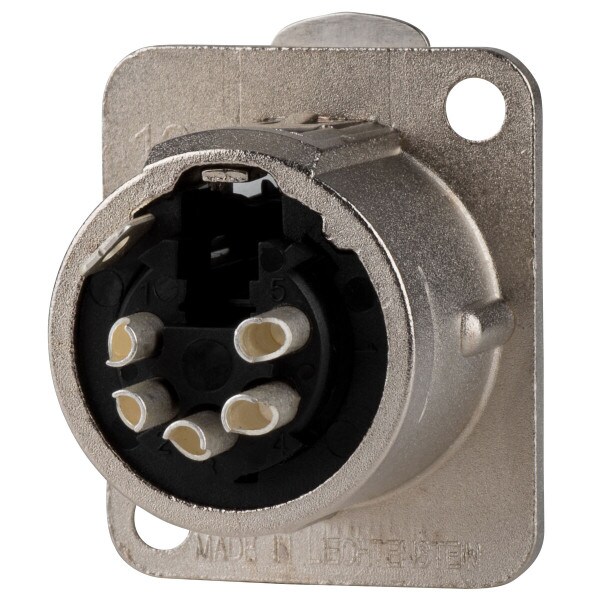

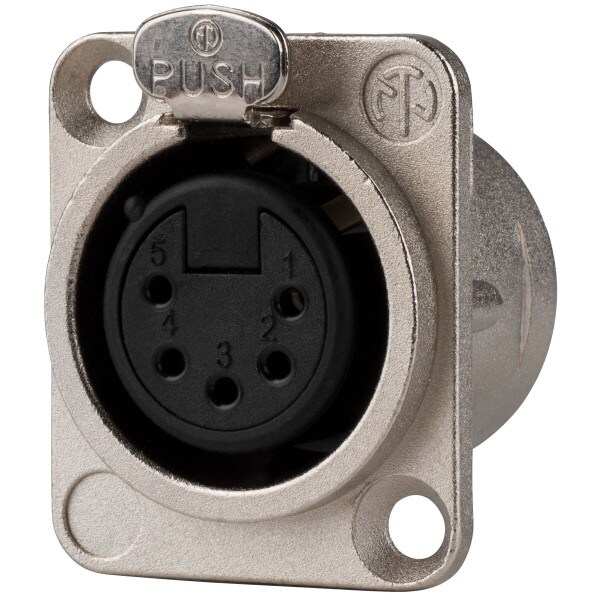

Neutrik NC5FD-L-1 DL Series Female Panel Mount 5-Pin XLR Connector Nickel

NeutrikPart # 092-2431
Model: NC5FD-L-1

5-pole female receptacle, solder cups, Nickel housing, silver contacts.

Universal D-size metal body XLR panel mount series. UL recognized component.

Key Features

  • Robust "D" metal shell
  • Standardized D sized 24 mm panel cutout
  • Solder cups
Your Price: $10.89
MSRP: $11.58
Save $0.69 (6%)
Bulk Pricing
131 In Stock
Get Notified When Available

We'll send you an email when Neutrik NC5FD-L-1 DL Series Female Panel Mount 5-Pin XLR Connector Nickel is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Neutrik NC5FD-L-1 DL Series Female Panel Mount 5-Pin XLR Connector Nickel

The Neutrik DL Series

Universal metal body XLR series with solder cups. Unified D-size shell for male and female. Metal shell offer RF protection. Metal housing in nickel or black plating. UL recognized component.

Termination: Soldercups

Locking mechanism: Latch lock

Grounding: Separate ground contact to mating connector shell and front panel

Front or rear panel mount

Panel fastening: Countersunk mounting holes to accept M3 bolts

Panel thickness: 1 - 3 mm

  • Robust "D" metal shell
  • Standardized D sized 24 mm panel cutout
  • Solder cups

Product Details

BrandNeutrik
ModelNC5FD-L-1
Part Number092-2431
UPC848864031309
Unit of MeasureEach
Weight0.05

Product Specifications

Conductors5-Pin
GenderFemale
Mounting TypeChassis / Panel Mount
