Neutrik NBNC75BTU11 BNC Rear Twist Cable Connector

NeutrikPart # 092-162
Model: NBNC75BTU11
1 Question, 1 Answer or
Features a true 75 ohm design that meets the stringent requirements of HDTV/DVD.

Key Features

  • BNC 75 ohm male cable mount
  • Standard 0.063" (1.60mm) center pin
  • Use with Belden 1694A, Commscope 5765, etc
Your Price: $3.47
MSRP: $4.99
Save $1.52 (30%)
Bulk Pricing
Quantity:Qty: 1-99 $3.47/ea
Quantity:Qty: 100-249 $3.28/ea
Quantity:Qty: 250+ $3.16/ea
109 In Stock
Get Notified When Available

We'll send you an email when Neutrik NBNC75BTU11 BNC Rear Twist Cable Connector is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

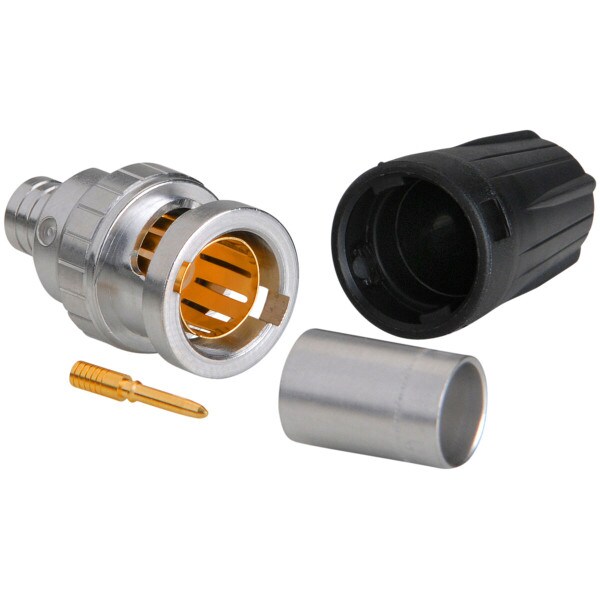

Neutrik NBNC75BTU11 BNC Rear Twist Cable Connector

Featuring a true 75 ohm design that meets the stringent requirements of HDTV/DVD, this connector sustains consistent impedance at high frequencies up to 3 GHz, is easy to handle in high density applications such as video patchbays and switchers, shows excellent return loss and VSWR, consists of machined parts that are precisely made to our high standards, and offers a center pin assembly with a snug fit to provide tactile indication when the contact is snapped into position. Rear Twist BNC Cable Connector • "Rear Twist Principle" locking/unlocking using the easily accessible soft touch boot (patent pending) • Ideal for recessed bulkheads where access to the "head" of the connector might be an issue. This connector turns from the back, not the front • Shield and jacket crimp technology prevents the problem of an exposed grounding braid on cable assemblies • Standard color is black, optional colored boots available • Cable jacket crimp die size listed below, center pin is a standard .063" (1.60 mm) • Mfg. #NBNC75BTU11 • Crimp die size: 0.290"/7.36 mm • For use with cable types: Belden 1694A, Commscope 5765, Gepco VSD2001, Suhner S05133-07, Suhner S05163-02

Product Details

BrandNeutrik
ModelNBNC75BTU11
Part Number092-162
Unit of MeasureEach
Weight0.04

Product Specifications

GenderMale
Mounting TypeCable Mount
