Neutrik NBNC75BLP7 BNC Rear Twist Cable Connector

2 Questions, 2 Answers or
Neutrik
Part #092-163

Neutrik NBNC75BLP7 BNC Rear Twist Cable Connector

Neutrik
Part #092-163
Model: NBNC75BLP7
2 Questions, 2 Answers or
Features a true 75 ohm design that meets the stringent requirements of HDTV/DVD. • Crimp die size: .255"/6.47 mm • For use with cable types: Belden 8241, Canare LV-61S, Commscope 5563, Cordial CVI (CVM) 06-37, Nokia/Draka 0.6/3.7, Sommer 600-0051(M,L,S), Sommer 600-0054(M,L,S), RG59B/U
Key Features
  • BNC 75 ohm male cable mount
  • Standard 0.063" (1.60mm) center pin
  • Use with Belden 8241, Canare LV-61S, etc
Your Price: $3.18
MSRP: $4.99
Save $1.81 (36%)
Bulk Pricing
Quantity:Qty: 1-99 $3.18/ea
Quantity:Qty: 100-249 $3.01/ea
Quantity:Qty: 250+$2.90/ea
Order in the next 2 hr 58 min to ship today. Details

96In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

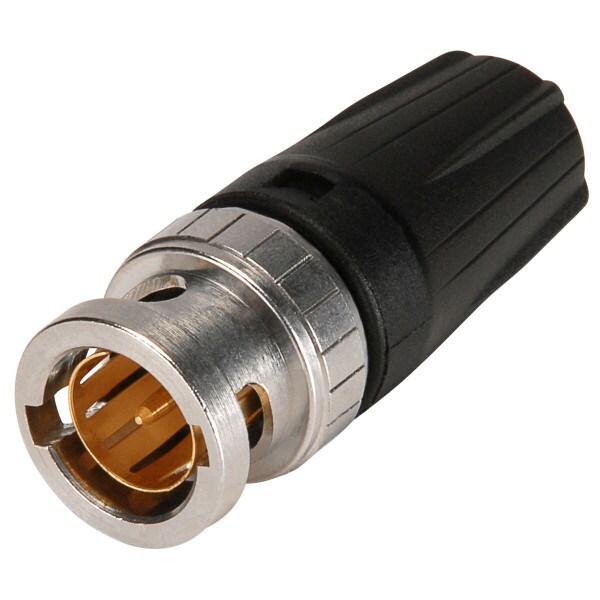

Neutrik NBNC75BLP7 BNC Rear Twist Cable Connector

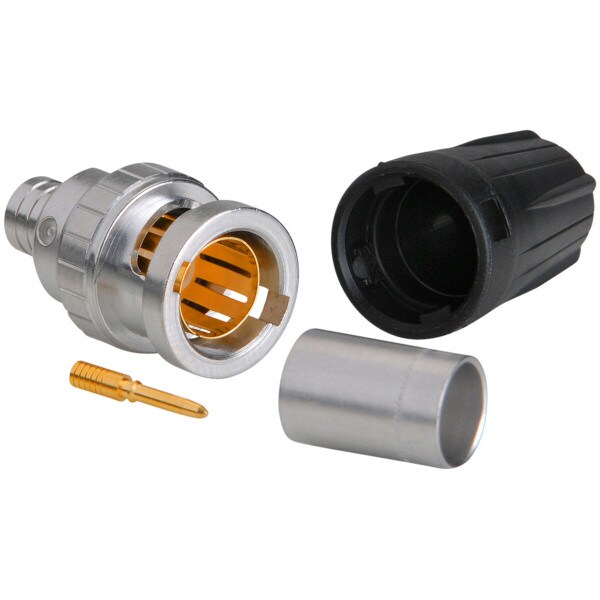

Featuring a true 75 ohm design that meets the stringent requirements of HDTV/DVD, this connector sustains consistent impedance at high frequencies up to 3 GHz, is easy to handle in high density applications such as video patchbays and switchers, shows excellent return loss and VSWR, consists of machined parts that are precisely made to our high standards, and offers a center pin assembly with a snug fit to provide tactile indication when the contact is snapped into position. "Rear Twist Principle" locking/unlocking using the easily accessible soft touch boot (patent pending). Ideal for recessed bulkheads where access to the "head" of the connector might be an issue, this connector turns from the back, not the front. Shield and jacket crimp technology prevents the problem of an exposed grounding braid on cable assemblies. Standard color is black, optional colored boots available. Center pin is a standard .063" (1.60 mm)

• Mfg. #NBNC75BLP7 • Crimp die size: .255"/6.47 mm • For use with cable types: Belden 8241, Canare LV-61S, Commscope 5563, Cordial CVI (CVM) 06-37, Nokia/Draka 0.6/3.7, Sommer 600-0051(M,L,S), Sommer 600-0054(M,L,S), RG59B/U

Product Details

BrandNeutrik
ModelNBNC75BLP7
Part Number092-163
Unit of MeasureEach
Weight0.04

Product Specifications

GenderAdapter / Coupler
Mounting TypeCable Mount
