  • Neutrik NAC3MX-W-TOP powerCON TRUE1 True Outdoor Protection IP65 Locking Male Cable Connector 20A

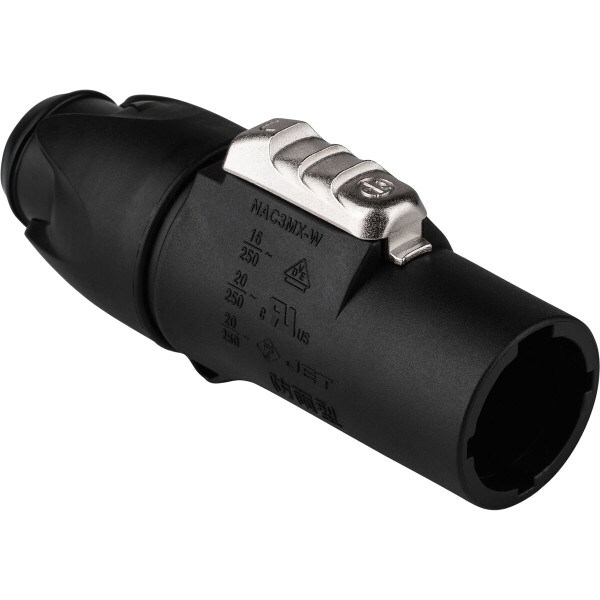

CLEARANCE Neutrik NAC3MX-W-TOP powerCON TRUE1 True Outdoor Protection IP65 Locking Male Cable Connector 20A

Neutrik
Part #092-2902

CLEARANCE Neutrik NAC3MX-W-TOP powerCON TRUE1 True Outdoor Protection IP65 Locking Male Cable Connector 20A

Neutrik
Part #092-2902
Model: NAC3MX-W-TOP
The powerCON TRUE1 TOP is a locking 16A (USA 20A) true mains connector for outdoor AC electrical applications. It replaces 3 pole equipment couplers and provides a very rugged solution in combination with a locking device to guarantee a safe power connection.
Key Features
  • Heavy duty, UV-resistant, sealed power connector for harsh and demanding environments
  • Outdoor protection according to IP65 and UL50E enclosure type 4 (in mated condition)
  • True mains connector with breaking capacity (CBC)
  • Easy and reliable twist-lock system
  • Unique Neutrik cable retention
  • UL498 certified for safety
  • ENEC certified according to IEC 60320
Similar items that may interest you:

Overview

Neutrik NAC3MX-W-TOP powerCON TRUE1 True Outdoor Protection IP65 Locking Male Cable Connector 20A

The powerCON TRUE1 TOP is a locking 20A true mains connector. It replaces 3 pole AC equipment couplers and provides a very rugged solution in combination with a locking device to guarantee a safe power connection. The unique locking strain relief construction helps prevent accidental exposure to electrical wires.

The TRUE1 TOP also features an IP65 rating (in mated condition) with no washers, gaskets, or other special treatment required. It is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live. The NAC3MX-W-TOP is a cable mount receptacle with screw terminals.

Specifications: • Current rating: 16A @ 250 VAC; 20A @ 120 VAC • T-8 cable screw heads • Cable type: SJTOW, SJOOW 3 x 12 AWG • Cable diameter: 6-12 mm.

Product Details

BrandNeutrik
ModelNAC3MX-W-TOP
Part Number092-2902
UPC848864057026
Unit of MeasureEach
Weight0.05

Product Specifications

ConfigurationNeutrik powerCON
Current Rating20A
Power Connector TypeCable Mount
