  • Neutrik NAC3M-TRUE1-S powerCON TRUE1 Series Waterproof Male Cable Connector for 6 to 12mm Cable

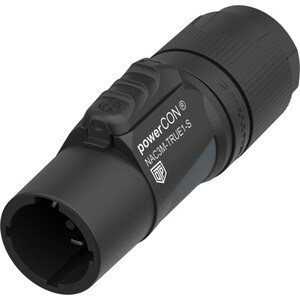

Neutrik NAC3M-TRUE1-S powerCON TRUE1 Series Waterproof Male Cable Connector for 6 to 12mm Cable

NeutrikPart # 092-312
Model: NAC3M-TRUE1-S

The powerCON TRUE1 is a locking true mains connector for harsh and demanding applications. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.

The powerCON TRUE1 is a connector series with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.

Key Features

  • Heavy duty sealed power connector for harsh and demanding environment
  • Uses high impact UV-resistant materials
  • Lockable single phase connector
  • Extremely robust and reliable
  • ENEC and VDE certified according to IEC 60320-1 and EN IEC 60320-1
  • UL and CSA Certified According to UL 60320-1 and CSA 22.2 No. 60320-1
  • UL Certified According to UL 498
Your Price: $10.82
MSRP: $12.08
Save $1.26 (10%)
Bulk Pricing
In Stock
Get Notified When Available

We'll send you an email when Neutrik NAC3M-TRUE1-S powerCON TRUE1 Series Waterproof Male Cable Connector for 6 to 12mm Cable is back in stock or available for preorder.

Order in the next 0 hr 1 min to ship today. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Neutrik NAC3M-TRUE1-S powerCON TRUE1 Series Waterproof Male Cable Connector for 6 to 12mm Cable

The Neutrik powerCON TRUE1 Series

The highly innovative entertainment industry is permanently evolving accompanied by increasing demands on interconnection systems. Particular environmentally sealed connectors are highly requested for heavy-duty and harsh environment applications of entertainment equipment like PA systems, signs and LED screens or lightings.

  • Heavy duty sealed power connector for harsh and demanding environment
  • Uses high impact UV-resistant materials
  • Lockable single phase connector
  • Extremely robust and reliable
  • ENEC and VDE certified according to IEC 60320-1 and EN IEC 60320-1
  • UL and CSA Certified According to UL 60320-1 and CSA 22.2 No. 60320-1
  • UL Certified According to UL 498
  • IP65 and IP67 (mated or with closed cap)
  • True mains connector with breaking capacity (CBC)
  • Easy and reliable twist lock system
  • Unique NEUTRIK locking bushing and strain relief for cable diameters 6 mm to 12 mm (0.23 – 0.47 inches)

Product Details

BrandNeutrik
ModelNAC3M-TRUE1-S
Part Number092-312
UPC7613187023354
Unit of MeasureEach
Weight0.085

Product Specifications

ConfigurationNeutrik powerCON
Current Rating20A
Power Connector TypeCable Mount
