  • Neutrik NAC3MPX-TOP powerCON TRUE1 True Outdoor Protection Male IP65 Receptacle Power IN 20A

Neutrik NAC3MPX-TOP powerCON TRUE1 True Outdoor Protection Male IP65 Receptacle Power IN 20A

NeutrikPart # 092-2906
Model: NAC3MPX-TOP
The powerCON TRUE1 TOP is a locking 16A (USA 20A) true mains connector for outdoor AC electrical applications. It replaces 3 pole equipment couplers and provides a very rugged solution in combination with a locking device to guarantee a safe power connection.

Key Features

  • Heavy duty, UV-resistant, sealed power connector for harsh and demanding environments
  • Outdoor protection according to IP65 and UL50E enclosure type 4 (in mated condition)
  • True mains connector with breaking capacity (CBC)
  • Easy and reliable twist-lock system
  • UL498 certified for safety
  • ENEC certified according to IEC 60320
Your Price: $5.02
MSRP: $6.99
Save $1.97 (28%)
Bulk Pricing
Quantity:Qty: 1-99 $5.02/ea
Quantity:Qty: 100-249 $4.75/ea
Quantity:Qty: 250+ $4.57/ea
112 In Stock
Get Notified When Available

We'll send you an email when Neutrik NAC3MPX-TOP powerCON TRUE1 True Outdoor Protection Male IP65 Receptacle Power IN 20A is back in stock or available for preorder.

Order in the next 1 hr 21 min to ship today. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Neutrik NAC3MPX-TOP powerCON TRUE1 True Outdoor Protection Male IP65 Receptacle Power IN 20A

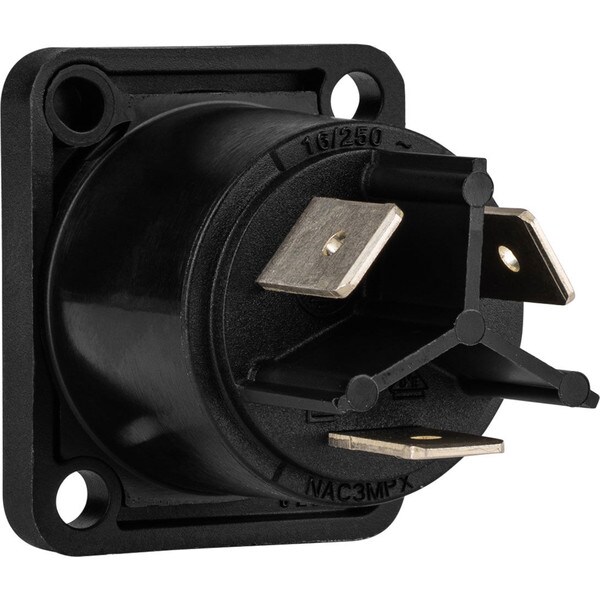

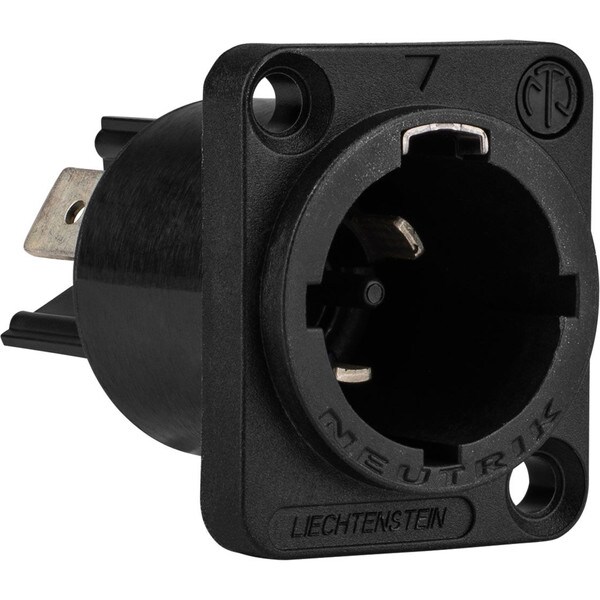

The powerCON TRUE1 TOP is a locking 20A true mains connector. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection. The powerCON TRUE1 TOP is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live. The NAC3MPX-TOP is a panel mount plug with three 1/4" disconnect terminals.

Specifications: • Current rating: 16A @ 250 VAC; 20A @ 120 VAC • Dimensions: 1.024" x 1.220" x 1.504" (total depth) • Cutout: 0.937" • Terminals: 1/4" flat tab.

Product Details

BrandNeutrik
ModelNAC3MPX-TOP
Part Number092-2906
UPC848864057040
Unit of MeasureEach
Weight0.05

Product Specifications

ConfigurationNeutrik powerCON
Current Rating20A
Power Connector TypeChassis / Panel Mount

Specifications

Q&A

Reviews

Manuals & Resources
