Neutrik NAC3FPX-TOP powerCON TRUE1 True Outdoor Protection Female IP65 Receptacle Power OUT 20A

1 Question, 1 Answer or
Neutrik
Part #092-2908

Neutrik NAC3FPX-TOP powerCON TRUE1 True Outdoor Protection Female IP65 Receptacle Power OUT 20A

Neutrik
Part #092-2908
Model: NAC3FPX-TOP
1 Question, 1 Answer or
The powerCON TRUE1 TOP is a locking 16A (USA 20A) true mains connector for outdoor AC electrical applications. It replaces 3 pole equipment couplers and provides a very rugged solution in combination with a locking device to guarantee a safe power connection.
Key Features
  • Heavy duty, UV-resistant, sealed power connector for harsh and demanding environments
  • Outdoor protection according to IP65 and UL50E enclosure type 4 (in mated condition)
  • True mains connector with breaking capacity (CBC)
  • Easy and reliable twist-lock system
  • UL498 certified for safety
  • ENEC certified according to IEC 60320
Your Price: $8.76
MSRP: $11.99
Save $3.23 (27%)
Bulk Pricing
Quantity:Qty: 1-99 $8.76/ea
Quantity:Qty: 100-249 $8.29/ea
Quantity:Qty: 250+$7.97/ea
Order in the next 15 hr 17 min to ship today. Details

80In Stock

Free Shipping available on orders over $99.00 in the US. Details

Overview

Neutrik NAC3FPX-TOP powerCON TRUE1 True Outdoor Protection Female IP65 Receptacle Power OUT 20A

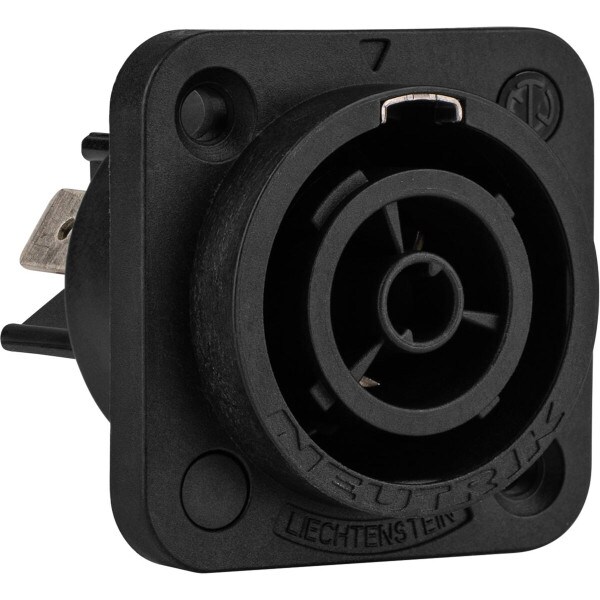

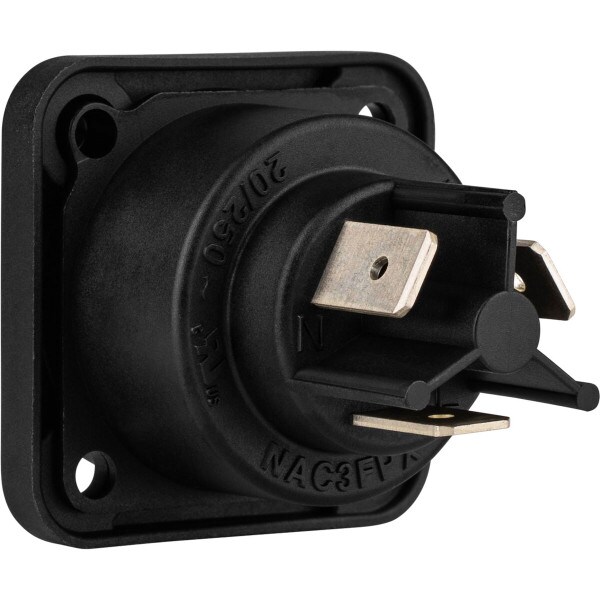

The powerCON TRUE1 TOP is a locking 20A true mains connector. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection. The powerCON TRUE1 TOP is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live. The NAC3FPX-TOP is a panel mount plug with three 1/4" disconnect terminals.

Specifications: • Current rating: 16A @ 250 VAC; 20A @ 120 VAC • Dimensions: 1.024" x 1.220" x 1.504" (total depth) • Cutout: 1.13" • Terminals: 1/4" flat tab.

Product Details

BrandNeutrik
ModelNAC3FPX-TOP
Part Number092-2908
UPC848864057057
Unit of MeasureEach
Weight0.05

Product Specifications

ConfigurationNeutrik powerCON
Current Rating20A
Power Connector TypeChassis / Panel Mount
