  • Morel EM 1308 2-1/8" Dome Midrange

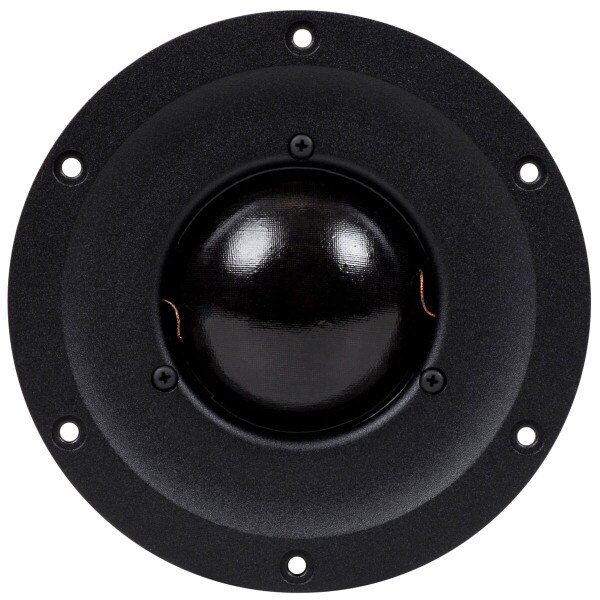

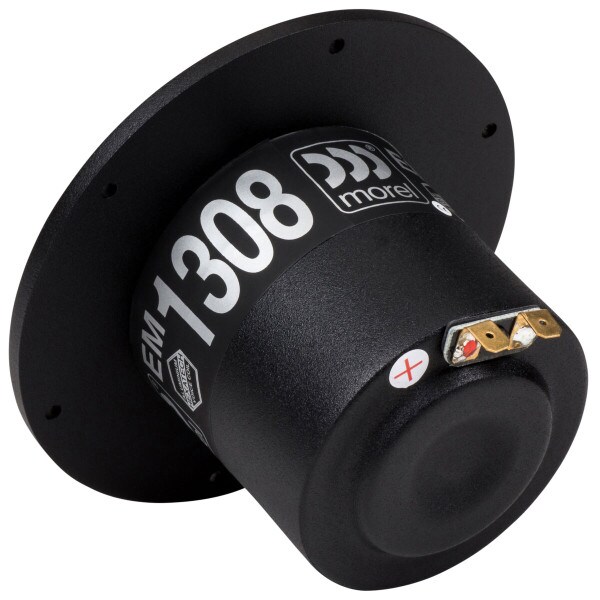

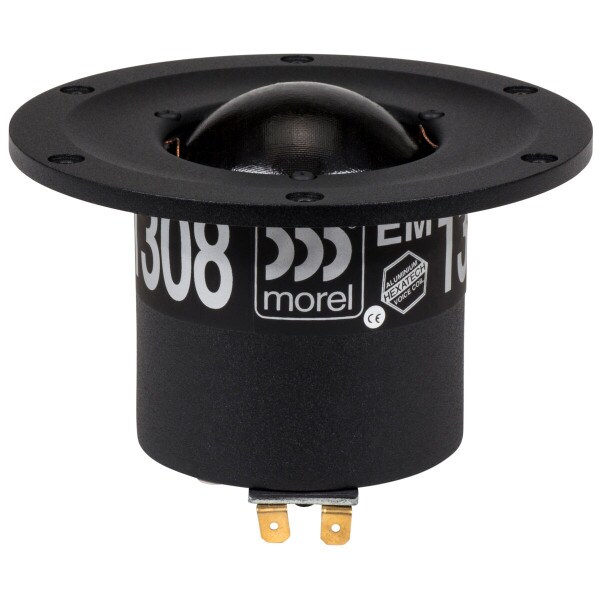

Morel EM 1308 2-1/8" Dome Midrange

MorelPart # 287-030
Model: EM 1308
Features IDR™ (Improved Dispersion Recess), a neodymium magnet, aluminum faceplate, hand coated soft dome, Hexatech aluminum voice coil, rear chamber loading, gold plated terminals, and full shielding to allow A/V use.

Key Features

  • 2-1/8" Accuflex™ hand coated soft dome
  • IDR™ (Improved Dispersion Recess)
  • Large Hexatech™ aluminum voice coil
  • High power handling
  • Gold plated terminals
  • Internally damped, aluminum rear chamber
Your Price: $239.00
+ FREE SHIPPING
MSRP: $295.99
Save $56.99 (19%)
Bulk Pricing
Back-Ordered
Get Notified When Available

We'll send you an email when Morel EM 1308 2-1/8" Dome Midrange is back in stock or available for preorder.

Estimated back in stock 8/8/2025
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Morel EM 1308 2-1/8" Dome Midrange

The Elite EM 1308 2-1/8" dome midrange is based on the MDM 55's unique qualities. It features IDR™ (Improved Dispersion Recess), an improved neodymium magnet, aluminum faceplate, hand coated Accuflex™ soft dome, Hexatech aluminum voice coil, rear chamber loading, gold plated terminals, and full shielding to allow A/V use. Truly a no-compromise midrange driver designed for high end multiple speaker systems.

Product Details

BrandMorel
ModelEM 1308
Part Number287-030
UPC844632065972
Unit of MeasureEach
Weight0.3

Product Specifications

Nominal Diameter2-1/8"
Power Handling (RMS)200 Watts
Power Handling (MAX)1000 Watts
Impedance
Frequency Response500 to 5,000Hz
Sensitivity88dB 2.83V/1m
Voice Coil Diameter2.125"

Thiele-Small Parameters

Resonant Frequency (Fs)320Hz
DC Resistance (Re)6.2Ω
Voice Coil Inductance (Le)0.2mH
Mechanical Q (Qms)0.9
Electromagnetic Q (Qes)1.01
Total Q (Qts)0.47
Surface Area of Cone (Sd)28cm²

Materials of Construction

Cone MaterialSoft Dome
Voice Coil Wire MaterialAluminum
Voice Coil FormerAluminum
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter5.12"
Baffle Cutout Diameter3"
Depth3.15"
# Mounting Holes6
