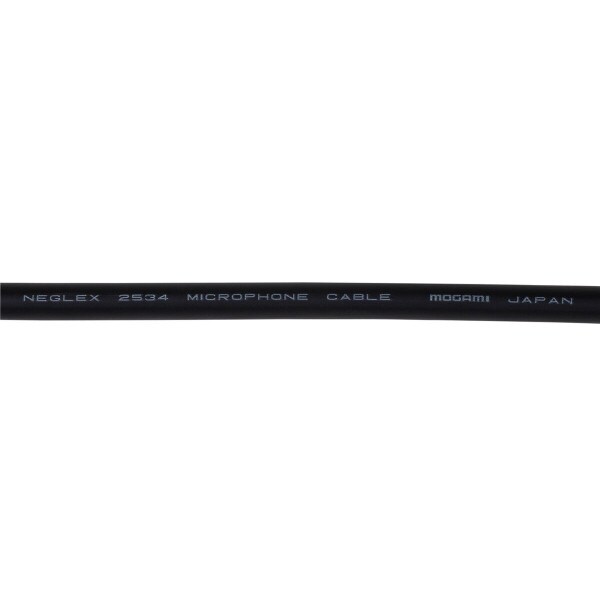

Mogami W2534 Neglex Quad High Definition Microphone Signal Cable 164 ft. (50m)

MogamiPart # 103-1009
Model: 2534

The Mogami W2534 is a Neglex quad balanced microphone bulk cable designed to provide a cleaner, quieter signal path in environments with wiring or grounding challenges. Its quad-conductor design significantly reduces noise and interference compared with standard twisted-pair cables, making it a strong choice for studio, live, and broadcast mic installations.

Key Features

  • Neglex quad microphone cable for superior noise rejection compared with twisted-pair designs
  • Provides an improvement in signal-to-noise of 10–20 dB over equivalent twisted pair cables
  • XLPE (cross-linked polyethylene) insulation prevents shrink-back during soldering
  • Served (spiral) bare copper shield for strong shielding and sound quality
  • Flexible construction suitable for long bulk cable runs in studio or stage environments
  • Standard choice for high-quality analog and digital recording setups
  • Made in Japan
Your Price: $219.98
+ FREE SHIPPING
MSRP: $298.99
Save $79.01 (26%)
Bulk Pricing
2 In Stock
Get Notified When Available

We'll send you an email when Mogami W2534 Neglex Quad High Definition Microphone Signal Cable 164 ft. (50m) is back in stock or available for preorder.

Order in the next 3 hr 39 min to ship today. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Mogami W2534 Neglex Quad High Definition Microphone Signal Cable 164 ft. (50m)

Mogami W2534 Neglex Quad High Definition Microphone Signal Cable

Mogami Neglex quad cable is an ideal choice for home studios that struggle with wiring and grounding issues. Mogami 2534 is also well suited for environments with severe RFI interference, offering a 10 to 20 dB improvement in signal to noise performance compared to comparable twisted pair cables. Its quad conductor design is especially effective at canceling noise that can pass through even high quality shielding, making it a critical solution in areas with strong RF and electromagnetic interference.

The conductor insulation is XLPE, or cross linked polyethylene, which provides excellent electrical performance and prevents insulation shrink back during soldering. The served spiral bare copper shield offers superior sound quality compared to foil or braided shields while also simplifying termination.

NEGLEX No. W2534 has become a global standard for high quality digital and analog recording applications. It is also widely used with unbalanced equipment such as high quality preamps, amplifier inputs, and tape decks. Originally developed as a miniature quad superflexible microphone cable for BANTAM patch cords, it has since gained popularity wherever a small diameter quad microphone cable is required.

Specifications

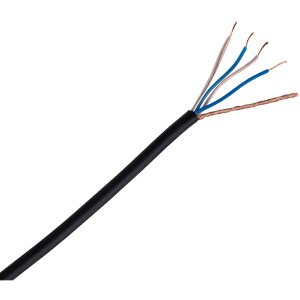

  • Configuration
  • Conductor
    -Details: 20/0.12 OFC
    -Size(mm²): 0.226mm² (#24 AWG)
  • Insulation
    -Ov. Dia.(mm): 1.6Ø (0.063")
    -Material: XLCPE (Cross-Linked Polyethylene)
    -Color: Blue / Clear (Quad)
  • Served Shield: Approx. 64/0.18A
  • Jacket
    -Ov. Dia.(mm): 6.0Ø (0.236")
    -Material: Flexible PVC

Electrical & Mechanical Characteristics

  • DC Resistance at 20°C
    -Inner Conductor: 0.083Ω/m(0.025Ω/Ft)
    -Shield Conductor: 0.012Ω/m(0.0037Ω/Ft)
  • Capacitance at 1kHz, 20°C (Partial C. Value)
    See below figure*
    -K₀: 65pF/m(20pF/Ft)
    -K₁: 13pF/m(4pF/Ft)
    -K₂: 4pF/m(1.2pF/Ft)
    -Balanced Quad Connection
      -Cond.-Cond.:97pF/m(29.6pF/Ft)
      -Cond-Shield.: 110pF/m(33.6pF/Ft)
  • Inductance between conductors at 1kHz. 20°C: 0.4µH/m(0.12µH/Ft)
  • Electrostatic Noise**: 50mV Max.
  • Electromagnetic Noise**: 0.15mV Max.
  • Microphonics at 50KΩ/ Load**: 430m V Max.
  • Voltage Breakdown: Must withstand at DC 500V/15sec.
  • Insulation Resistance: 100000 M Ω/ × m Min. at DC 125V, 20°C
  • Flex Life: 11,000 cycles
  • Tensile Strength: 686 N
  • Emigration: Non-emigrant to ABS
  • Applicable Temperature: -20°C‾ +70°C(-4°F‾ +158°F)

    • ** Using standard testing methods of Mogami Wire & Cable Corp.

    * Partial Capacitance

Product Details

BrandMogami
Model2534
Part Number103-1009
UPC801813010190
Unit of MeasureEach
Weight5.65

Product Specifications

Jacket ColorBlack
Wire Gauge24
