  • Middle Atlantic MAFAN 4-5/8" x 1-1/2" Fan 95 CFM 115 VAC

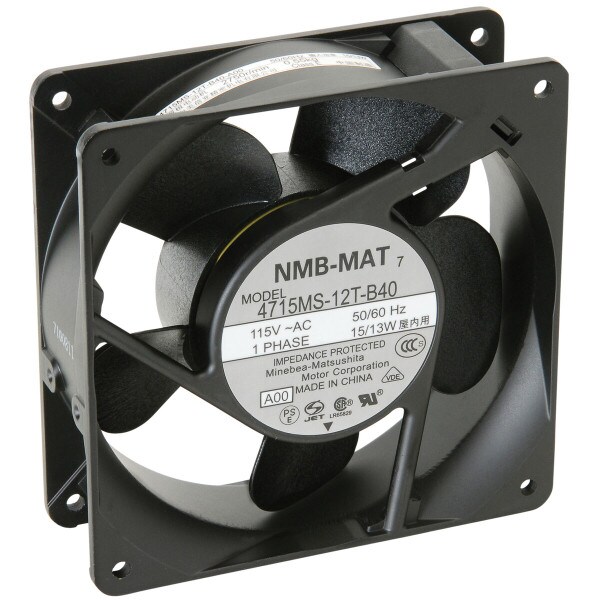

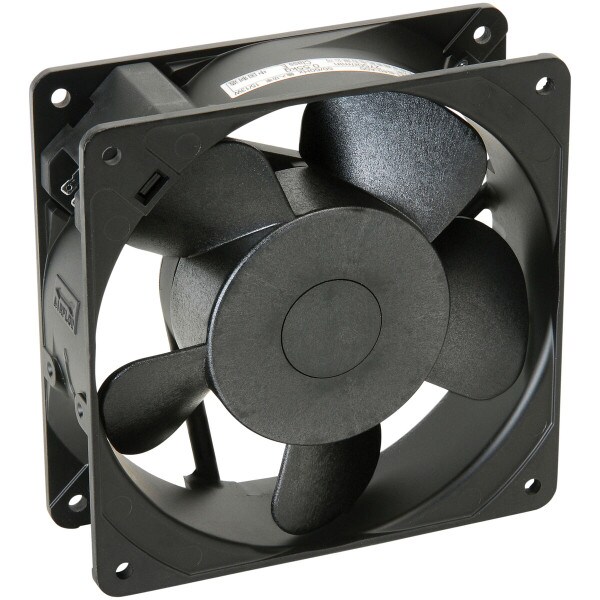

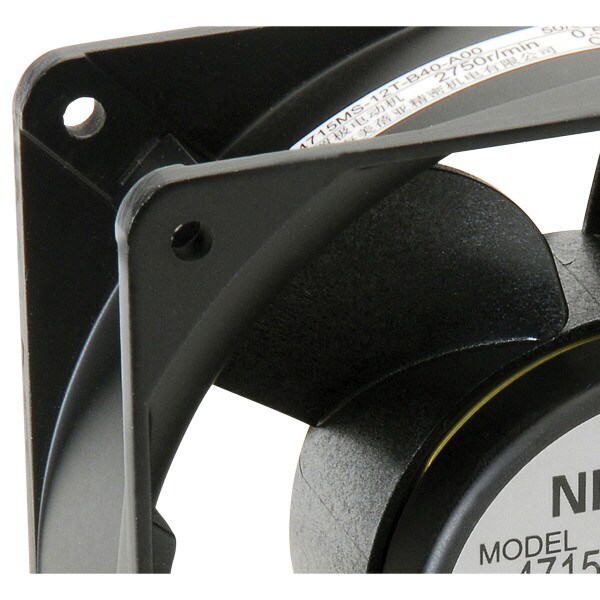

CLEARANCE Middle Atlantic MAFAN 4-5/8" x 1-1/2" Fan 95 CFM 115 VAC

Middle AtlanticPart # 262-686
Model: MAFAN
Featuring a smooth, ball-bearing design, this 4-5/8", 115V fan is perfect for use with the FP series fan panels, or on rack system tops that are designed to accommodate 4-5/8" fans. 95 CFM air flow.

Key Features

  • Impeller : Polycarbonate (glass fiber-containing), 5-blade
  • Bearing: Ball bearing
  • Motor: 115 VAC, 50/60 Hz, 15/13W, impedance protected
  • Casing: Aluminum
  • 95 CFM air flow, 2750 RPM, 39 dBA noise rating
Similar items that may interest you:
Muffin Cooling Fan 100-125 VAC 77/86 CFM 4-5/8" x 1-1/2" RAM1238S2
Price: $17.98Part # 259-150
See all items in Fans & Accessories
Get Notified When Available

We'll send you an email when Middle Atlantic MAFAN 4-5/8" x 1-1/2" Fan 95 CFM 115 VAC is back in stock or available for preorder.

60 Day No Hassle Return Policy

Overview

Middle Atlantic MAFAN 4-5/8" x 1-1/2" Fan 95 CFM 115 VAC

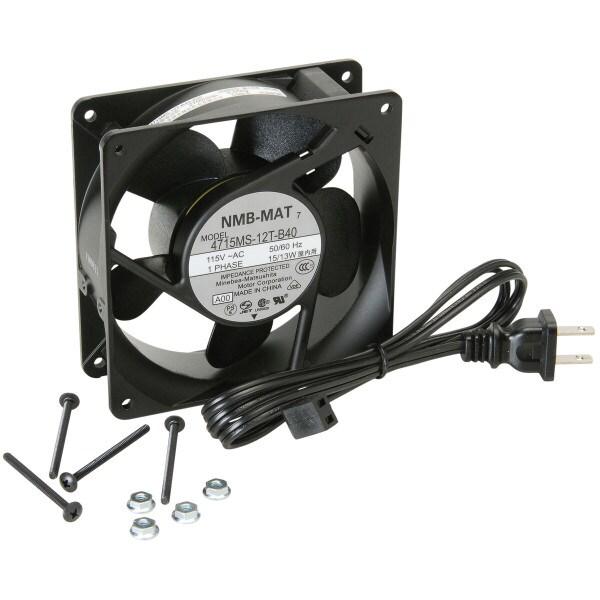

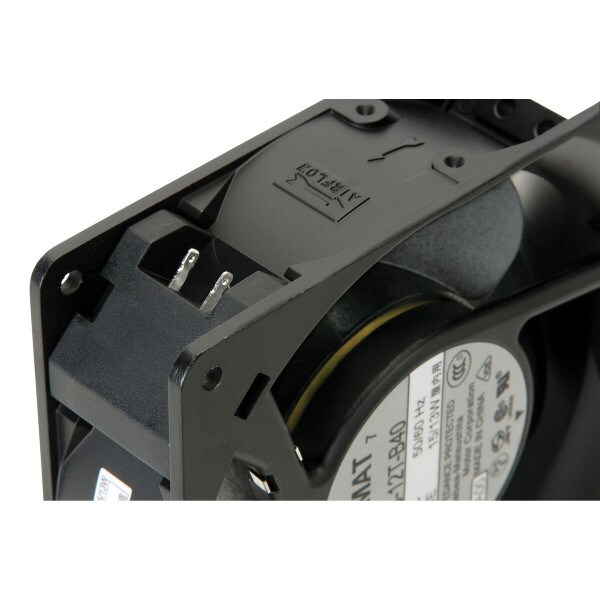

Featuring a smooth, ball-bearing design, this 4-5/8", 115V fan is perfect for use with the FP series fan panels, or on rack system tops that are designed to accommodate 4-5/8" fans. 39 dBA free air noise rating. 95 CFM air flow. 2750 RPM speed. Lead wire: 22 AWG, UL3266, CSA CLR52 or Terminal: Faston #110 or equivalent. Includes mounting hardware and power cord.

Specifications: • Dimensions: 119 x 119 x 38 mm • Middle Atlantic model# FAN. Mfg Model Number 4715MS-12T-B40.  NMB-MAT

Product Details

BrandMiddle Atlantic
ModelMAFAN
Part Number262-686
UPC656747007057
Unit of MeasureEach
Weight1.3

Product Specifications

Bearing TypeBall Bearing
Operating Voltage110~120 VACV
Size120
