  • Linkplay C02B Far Field Mic Module CO2B Conexant Mic Array 2 Mic Input AEC and De-noising

CLEARANCE Linkplay C02B Far Field Mic Module CO2B Conexant Mic Array 2 Mic Input AEC and De-noising

3 Questions, 5 Answers or
Linkplay
Part #321-102

CLEARANCE Linkplay C02B Far Field Mic Module CO2B Conexant Mic Array 2 Mic Input AEC and De-noising

Linkplay
Part #321-102
Model: FFMM
3 Questions, 5 Answers or

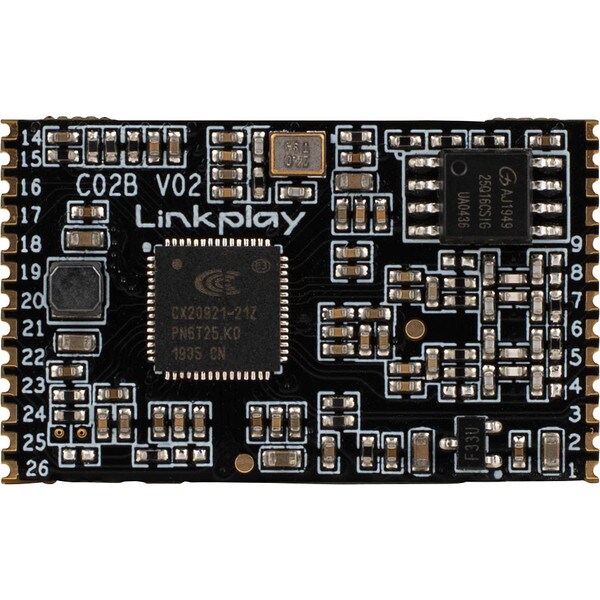

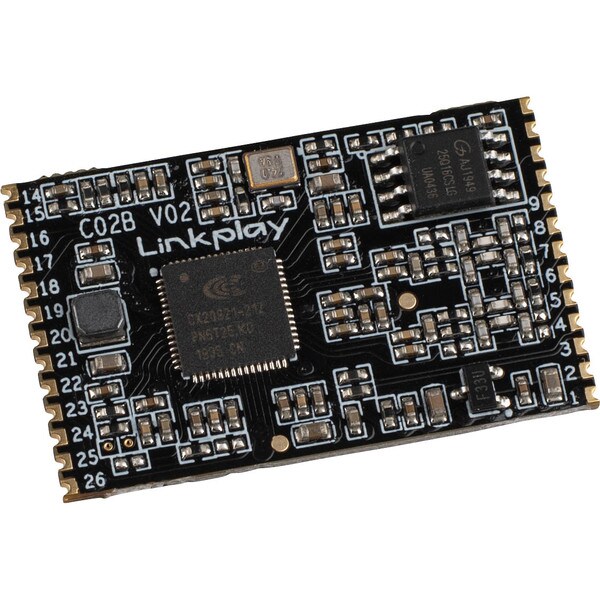

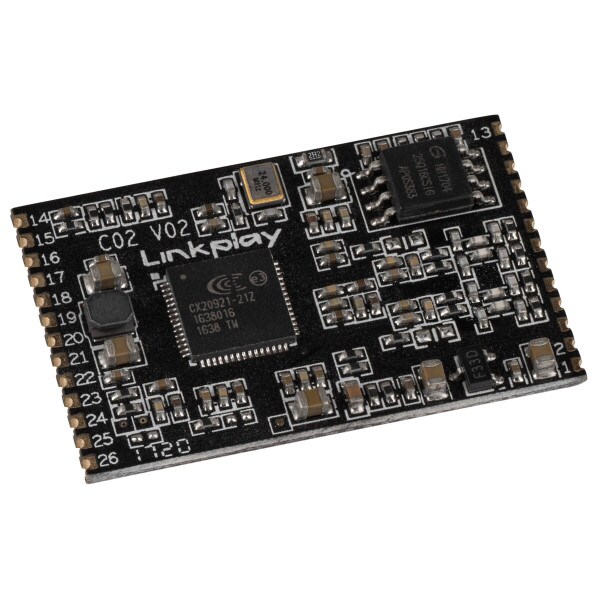

Linkplay's C02B module is a 2 mic far-field voice interaction module, which includes advanced automatic speech recognition functionality for voice-activated devices.
Key Features
  • Alexa compatible
  • Embedded powerful, dual-core 32-bit DSP
  • Dual for field, 24 bit, 106 dB dynamic range ADCs with microphone pre-amplification and independent microphone bias supply
  • Support sample rate: 8-96,000 kHz
  • Programmable pre-amplifier with integrated analog and digital gains, with 1 dB steps and digital gain has 0.125 dB steps
  • Integrated direct DC-DC converter
  • 22-PIN, supports single side SMT solder
CLEARANCE $17.00
MSRP: $43.99
Save $26.99 (61%)
Bulk Pricing
Order in the next 3 hr 21 min to ship today. Details

22In Stock

Free Shipping available on orders over $99.00 in the US. Details

Overview

Linkplay C02B Far Field Mic Module CO2B Conexant Mic Array 2 Mic Input AEC and De-noising

ASR_C02B module, developed by Linkplay, supports applications for far field voice interaction. It enables high performance automatic speech recognition (ASR) and excellent voice clarity with two microphones through Conexant's voice input processing software that includes noise suppression and full-duplex Acoustic Echo Cancellation (AEC). It adds voice control, voice search and Voice over Internet Protocol (VoIP) functions to smart speaker, smart TV, Set-Top Box (STB), smart appliances, and automotive hands-free control and communication systems. It delivers a superior voice interactive experience in the most challenging room environments.

Specifications: • DC Voltage: 5V • Working current: 49 mA (161.7 mW @ 3.3V) • Working temperature range: 23° F ?158° F (-5° C ?70° C) • Storage temperature: -40° F ?257° F (-40° C ?125° C).

Product Details

BrandLinkplay
ModelFFMM
Part Number321-102
UPC848864046587
Unit of MeasureEach
Weight0.05

Product Specifications

Board TypeInterface
